4/6ESCW DC Brushless Solar Pump With Stainless Steel Impeller

4/6" Compact Size
DC Brushless
Stainless Steel Impeller Type
Stainless Steel for Outlet/Connection/Oil Cylinder
NSK Bearing
MPPT Function
Water Filled

PREV：4ESCW 4" DC Brushless Solar Pump With Stainless Steel Impeller
NEXT：2EPC Brushless DC Motor Submersible Solar Deep Well Pump

Description
Components
Curves
Performance Data
Contact Us

Description:

With a cutting-edge solution designed to meet the water pumping needs of the agricultural sector , this high-performance pump is specifically engineered to operate efficiently in remote areas where access to electricity is limited or non-existent. With its advanced solar technology, this pump harnesses the power of the sun to provide a reliable and sustainable water pumping solution. Equipped with a 4/6" DC Brushless Water Filled technology , the pump ensures optimal performance and longevity. The stainless steel impeller further enhances its durability, making it resistant to corrosion and wear. This pump is built to withstand the harsh conditions often encountered in agricultural settings, ensuring a long-lasting and reliable water pumping solution.

Product Feature :

●Designed with precision and reliability in mind, our Solar Pump is equipped with a state-of-the-art Permanent Magnet DC Brushless Synchronous Motor. This advanced motor technology ensures a smooth and consistent water pumping experience, while also maximizing energy efficiency.

●Stainless steel outlet, connector, and oil cylinder are incorporated into the design of our 4"/6" DC（W) Brushless Solar Pump With Stainless Steel Impeller . These features ensure that the pump can withstand daily stress while maintaining its high performance standards .

●Japanese NSK bearing: It is equipped with top-of-the-line NSK bearings to ensure superior performance and durability. With its reliable and efficient design, this pump is perfect for agricultural applications, providing a steady and consistent water supply for feeding purposes. Invest in this high-quality pump and experience its exceptional performance and longevity.

●Alloy mechanical seal: The alloy mechanical seal of our Brushless Solar Pump ensures both durability and security.

●The pump features a motor coil with advanced copper winding technology, ensuring that it remains in excellent condition. This pump is perfect for those in need of a reliable and efficient solution for their agricultural water needs.

Applications :

Solar deep well irrigation for farmlands, orchards, and greenhouses

Off-grid household and community water supply

Livestock and pasture watering systems

Remote or rural water projects requiring reliable DC-powered pumping

Small-scale solar-powered water transfer and storage systems

Spare Parts：

Installation of DC PUMP：

How to choose the Solar Panel：

Components & Materials：

Components	Materials
Pump external casing	Stainless Steel
Outlet	Stainless Steel
Connection	Stainless Steel
Oil cylinder	Stainless Steel
Impeller	Stainless Steel
Bearing	NSK
Shaft	Complete SS304

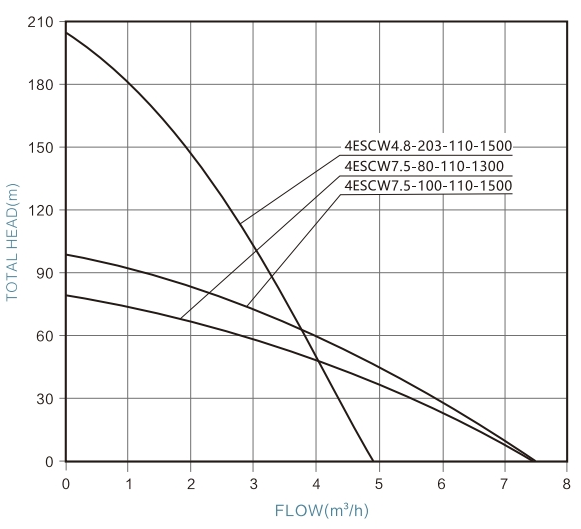

Hydraulic Performance Curves：

Technical Data：

ITEM	Voltage	Optimum input voltage(DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel
ITEM	Voltage	Optimum input voltage(DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Open circuit voltage(VOC)	Power
4/6ESCW30-19-72-1100	72V	90V-120V	1100W	30m³/h	19m	3"	2m	＜210V	≥1.3*PUMP POWER
4/6ESCW36-22-110-1500	110V	110V-150V	1500W	36m³/h	22m	3"	2m	＜210V	≥1.3*PUMP POWER
4/6ESCW30-31-110-1500	110V	110V-150V	1500W	30m³/h	31m	3"	2m	<210v	≥1.3*PUMP POWER
