Wholesale HRS-EA Intelligent Circulation Pump

  • Taizhou Haipai Import & Export Co., Ltd.
  • HRS-EA Intelligent Circulation Pump
Intelligent Circulation Pump

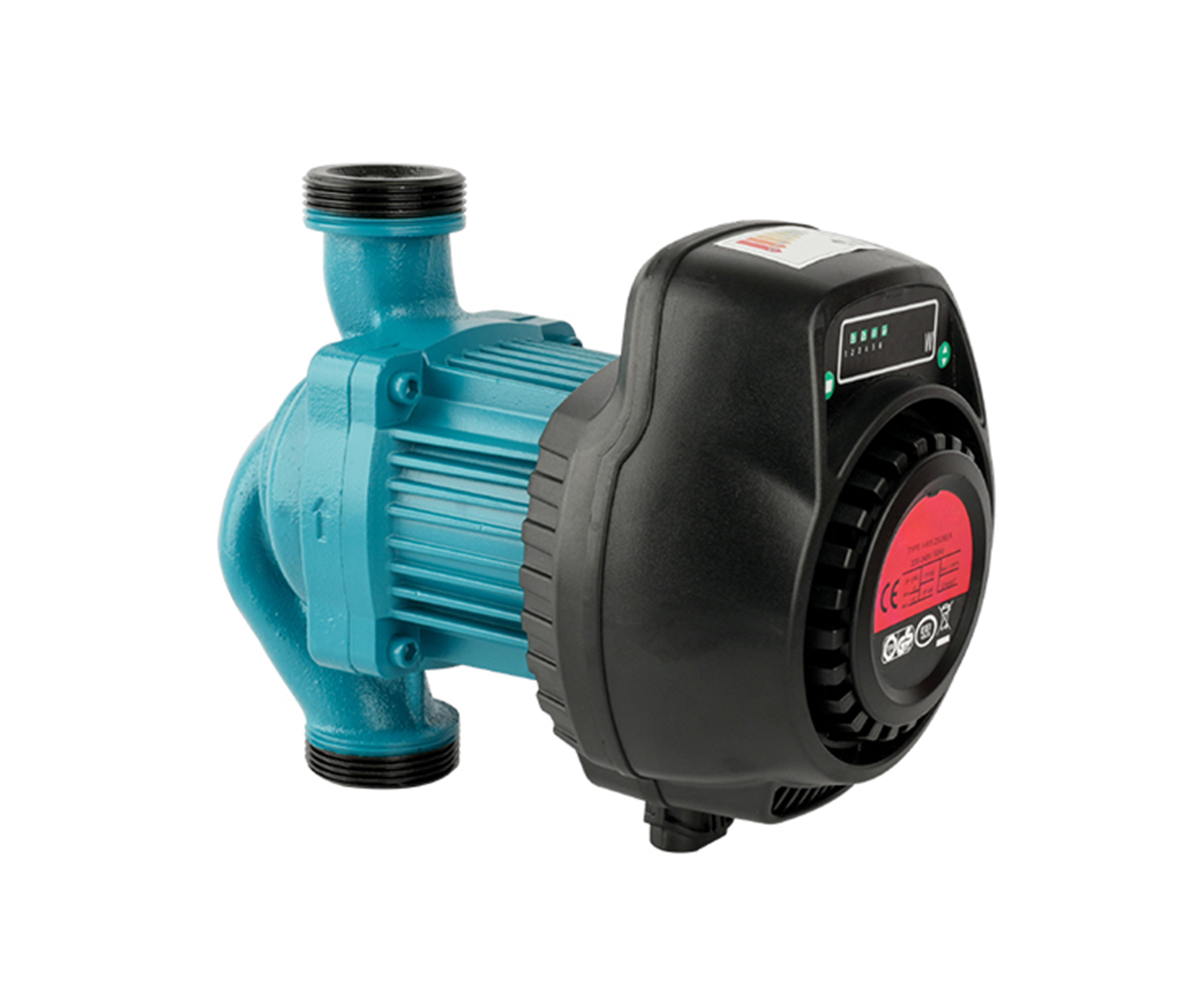

HRS-EA Intelligent Circulation Pump

Model: HRS-EA

Max. Head: 8M/10M

Get A Quote
Download
×
Get password
submit
PREV：HRS-EAD Intelligent Circulation PumpNEXT：HRS-EAC Quiet Variable Frequency Adaptive Intelligent Shield Circulation Pump
Part Material
Pump  body Cast iron
Impeller PES
Stainless steel cover 304SS
Bearing Ceramic
Gasket Rubber
Brass bearing Brass
Rator SS&Copper
Ceramic shafting Ceramic
Shielding 304SS
Stator Silicon steel&Copper
Motor housing Aluminum
Hexagon socket screws Stainless steel
Exhaust  screw Brass
Nameplate Nylon
Seat of terminal box Nylon
Cover of termial box Nylon



Model Power Max.Flow Max.Head Voltage Mater of pump body Dimension(mm) Weight(Kg)
(W) (m3/h) (m) 220V/
50Hz		 Cast
Iron		 Plastic Brass Stairless
steel		 L1   L2 B1 B2 H1 H2 G
HRS25/8EA 5~130 7.5 8 ★ ★       180   90 129 64.5 236 184 11/2" 3.3
HRS32/8EA 10.2 ★       180   90 129 64.5 236 184 2" 3.4
HRS25/10EA 5~180 7.8 10 ★ ★       180   90 129 64.5 236 184 11/2" 3.3
HRS32/10EA 10.8 ★       180   90 129 64.5 236 184 2" 3.4
