HGR32EA-F Series Quiet and Efficient Hot Water Recirculating Pump
View All Products
en
Description :
This high-efficiency frequency-controlled circulating pump delivers exceptional performance with adjustable flow rates, reliable operation, and versatile compatibility for diverse heating and cooling applications.
Applications:
Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems
Technical Specifications:
Flow Rate: Up to 11.5 m³/h
Head: Up to 12 meters
Pressure: Up to 10 bar
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~110℃
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylen
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

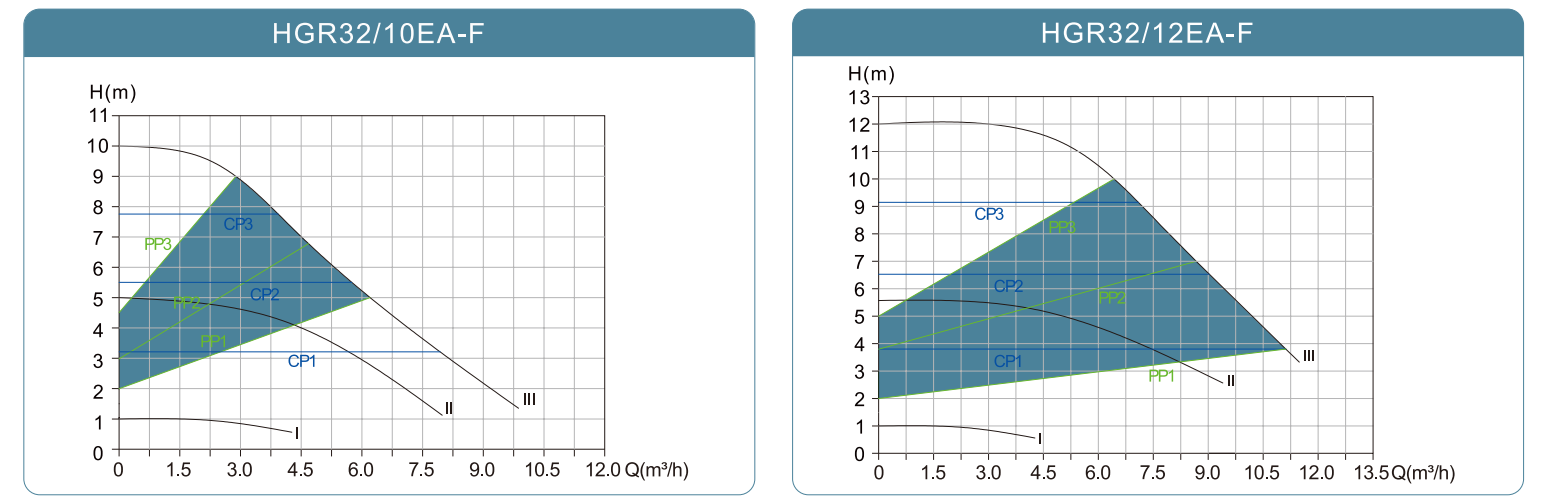

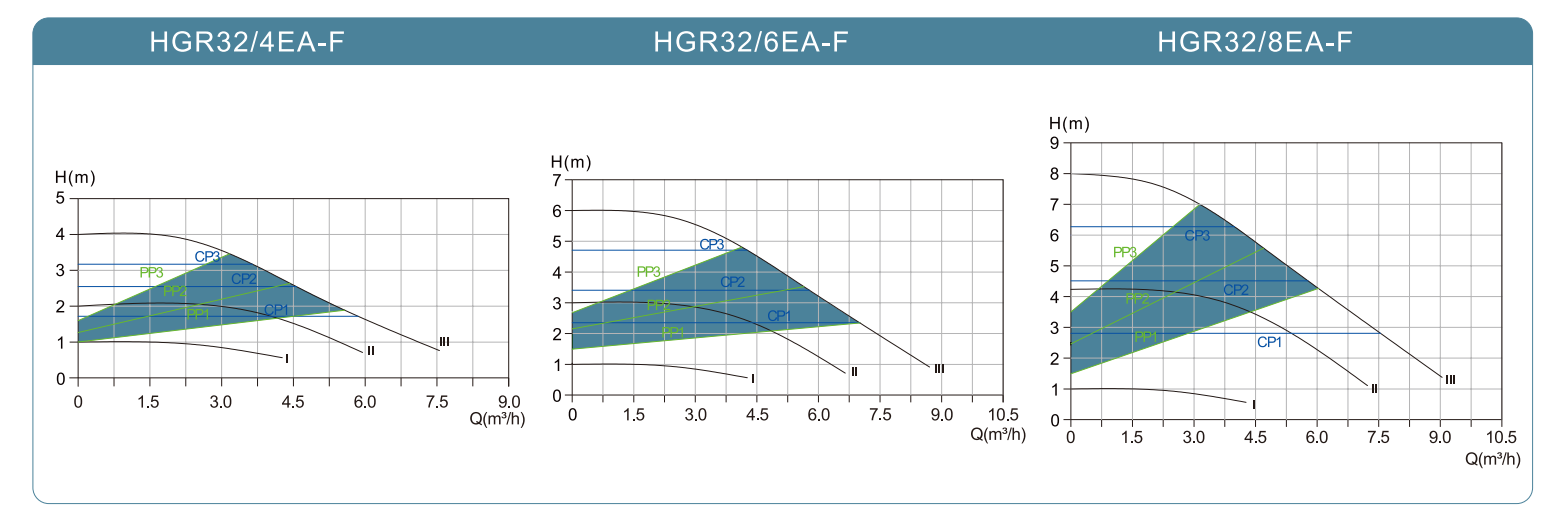

| Model | Power | Max. Flow | Max. Head | Voltage | Pump Dimension (mm) | Flange Dimension (mm) | |||||||||
| W | (m³/h) | (m) | 220V/50Hz | 220V/60Hz | L | A | B | C | D1 | D2 | D3 | D4 | D5 | ||
| HGR32/4EA-F | 9-73 | 7.6 | 4 | ★ | ★ | 220 | 129 | 184 | 133 | 90 | 100 | 14 | 19 | 140 | DN32 |
| HGR32/6EA-F | 9-111 | 8.6 | 6 | ||||||||||||
| HGR32/8EA-F | 9-151 | 9.0 | 8 | ||||||||||||
| HGR32/10EA-F | 8-175 | 9.6 | 10 | ||||||||||||
| HGR32/12EA-F | 15-329 | 11.5 | 12 | ||||||||||||

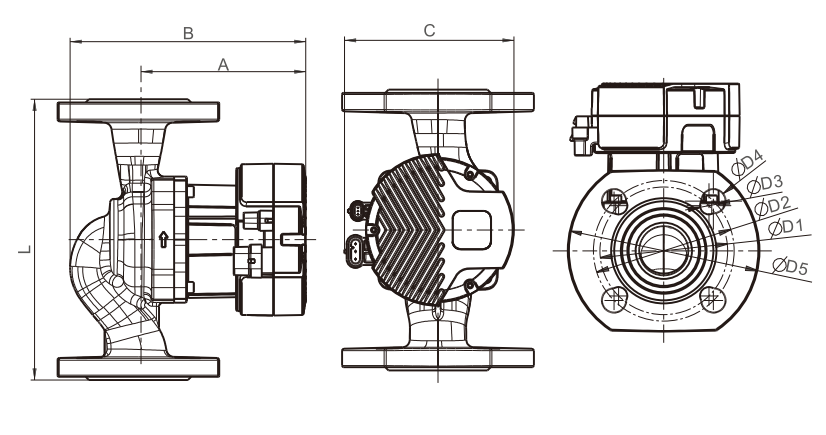

Installation Dimension :
