DC Submersible Solar Pump

3ESS 3" DC Brushless Solar Screw Submersible Water Pump

3" Compact Size
DC Brushless
Stainless Steel for Outlet/Connection/Oil Cylinder
NSK Bearing
MPPT Function

Get A Quote
Download
×
Get password
submit

Main Features:

●Permanent magnet DC brushless synchronous motor:

   1)The efficiency arrives at 115%-120%

   2)Green solar energy and no electric charge

   3)Reduce the amout of solar panels so that reduce footprint

●Good wear resistance: stainless steel connector/ oil cylinder

●Japanese NSK bearing: extend the working life.

●Alloy mechanical seal: It protects the motor because the seal is able to keep out water and other impurity

●Winding technology: Motor coil is made by automatic winding machine and the efficiency is much improved

●New type screw: High-lift and mass flow

●Overload and burn prevention: When there is little water,the pump stop running immediately down to prevent dry burning

●DC Controller:

     1) Waterproof grade: IP65.

     2) Environment temperature: -15℃ to 60℃.

     3) MPPT function, the solar power utilization rate is higher.

     4) Runing stably:The pump normally works at the same as  charges the battery ,which there is little sunshine,the pump can also run stably.

     5) Direct view display: LED displays the power, voltage, current, speed etc working condition and error code.

     6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and user also can change the speed of pump manually.

     7) Easy installation: With widely used DC plug,the pump is easy to install

     8) Water proof and leak-proof: Double seal security

     9) Soft start: No impulse current, protect the pump motor.

     10) Multi-party protection: High voltage/Low voltage/Over-current/High temperature protection.

●2 years warranty: We have professional after-sales service and ultra long term.

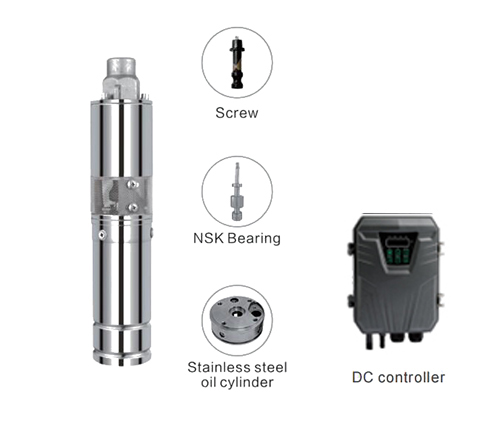

Spare Parts:



Installation Tutorial:



 Installation of DC PUMP:

How to choose the Solar Panel:



Components & Matrial:

Components

Matrial

Pump external casing

Stainless steel

Outlet

Stainless steel

Connection

Stainless steel

Oil cylinder

Stainless steel

Bearing

NSK

Shaft

Complete SS304

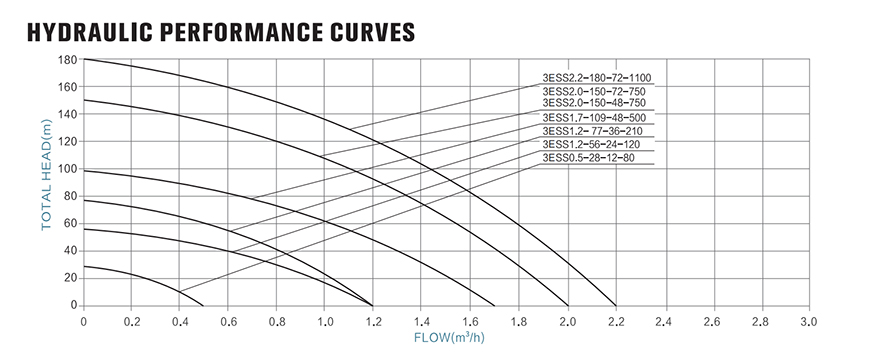

Hydraulic Performance Curves:


Technical Data:

ITEM Voltage Optimum input voltage(DC) Power Max. Flow Max. Head Outlet Cable Solar panel
Open circuit voltage(VOC) Power
3ESS0.5-28-12-80 12V 30V-48V 80W 0.5m³/h 28m 0.75" 2m <55V ≥1.3*PUMP POWER
3ESS1.2-56-24-120 24V 30V-48V 120W 1.2m³/h 56m 0.75" 2m <55V ≥1.3*PUMP POWER
3ESS1.2-77-36-210 36V 30V-48V 210W 1.2m³/h 77m 0.75" 2m <55V ≥1.3*PUMP POWER
3ESS1.7-109-48-500 48V 60V-90V 500W 1.7m³/h 109m 0.75" 2m <105V ≥1.3*PUMP POWER
3ESS2.0-150-48-750 48V 60V-90V 750W 2.0m³/h 150m 0.75" 2m <105V ≥1.3*PUMP POWER
3ESS2.0-150-72-750 72V 90V-120V 750W 2.0m³/h 150m 0.75" 2m <160V ≥1.3*PUMP POWER
3ESS2.2-180-72-1100 72V 90V-120V 1100W 2.2m³/h 180m 0.75" 2m <160V ≥1.3*PUMP POWER
