Wastewater drainage in factories, construction sites and commercial facilities
Drainage system in municipal sewage treatment plants
Drainage station in residential quarters
Municipal projects
Methane pools and field irrigation in countryside
Max:immersion depth:5m
Max:liquid temperature:40°C 104°F
Liquid PH value:5-9
Liquid kinematic ciscosity:7×10-6~23×10-6m²/s
Max.liquid density:1.2×10³kg/m³
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class:B
Protection class:IPX8

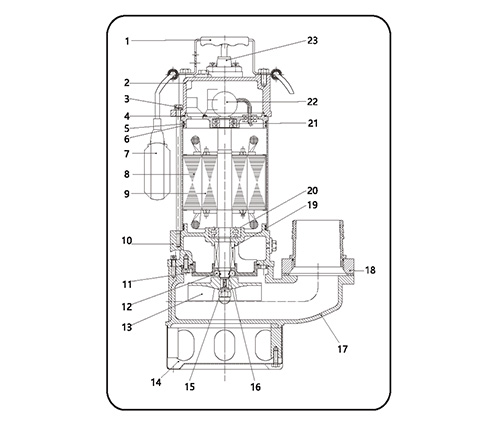

NO. |
NAME |
MATERIAL/SPEC. |
1 |
Handel |
Stainless Steel |
2 |
Capacitor Cover |
HT200 |
3 |
Screw |
Stainless steel |
4 |
O Ring |
NBR |
5 |
Upper Cover |
HT200 |
6 |
O Ring |
NBR |
7 |
Float Switch(Optional) |
|
8 |
Motor |
AISI201 (Motor casing) |
9 |
Rotor |
45#Carbon steel&2Cr13 Stainless |
10 |
Oil Chamber |
HT200 |
11 |
Oil Chamber Cover |
HT200 |
12 |
Oil Sseal |
NBR |
13 |
Impeller |
HT200 |
14 |
Filter Mesh |
ST13 |
15 |
Key |
Stainless Steel |
16 |
Shaft Sleeve |
HT200 |
17 |
Pump Body |
HT200 |
18 |
Out Let Connecting |
ABS |
19 |
Mechanical Seal |
Ceramic/Graphite |
20 |
Bearing |
|
21 |
Bearing |
|
22 |
Capacitor |
|
23 |
Cable Protector |
|
