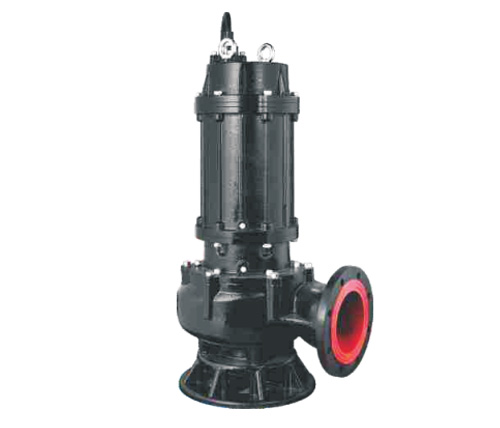

WQ4B 2.2KW~7.5KW 4P Professional Sewage Pump

WQ4B 2.2KW~7.5KW 4P Professional Sewage Pump

Contact Us

Specification

  • Insulation class : F
  • Protection class : IP68
  • Water temperature : up to 40°C
  • PH: 6 to 10
  • Density of liquid : 1.3g/cm3
  • Power supply : three phase 380V ±10%, 50Hz; three phase 380V ±10%, 60Hz
  • Motor protection : built in
  • Capacity : up to 400m3/h
  • Head : up to 24m
  • Maximum immersion depth : 20m
  • Cable length : 8m

Model (50/60Hz) Rated Current (380V) Motor Power Outlet Rated Capacity Rated Head Max. Capacity Max. Head Impeller Passage Cable
A KW HP in mm m3/h m m3/h m mm mm2
80WQ4B-2.2 5 2.2 3 3 80 45 8 73 12 50 4G1.5
100WQ4B-2.2 5 2.2 3 4 100 60 7 100 12 50 4G1.5
80WQ4B-3.7 8.5 3.7 5 3 80 45 13 90 17 50 4G1.5
100WQ4B-3.7 8.5 3.7 5 4 100 60 12 130 17 50 4G1.5
100WQ4B-5.5 11.7 5.5 7.5 4 100 65 15 150 19 50 4G2.5
150WQ4B-5.5 11.7 5.5 7.5 6 150 110 10 200 16 55 4G2.5
100WQ4B-7.5 15.7 7.5 10 4 100 100 15 170 24 50 4G4.0
150WQ4B-7.5 15.7 7.5 10 6 150 150 10 240 16 75 4G4.0
200WQ4B-7.5 15.7 7.5 10 8 200 250 6 400 12 80 4G4.0
EDWIN PUMP has been a WQ4B 2.2KW~7.5KW 4P Professional Sewage Pump suppliers and company from China. Factory export series of pumps which include more than 40 series, 2000 models. We also accept OEM/ODM for many years.
