SRM Series Anti-corrrison End-suction Efficiency Water Surface Centrifugal Pump Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • SRM Series Anti-corrrison End-suction Efficiency Water Surface Centrifugal Pump
Horizontal Multistage Pump

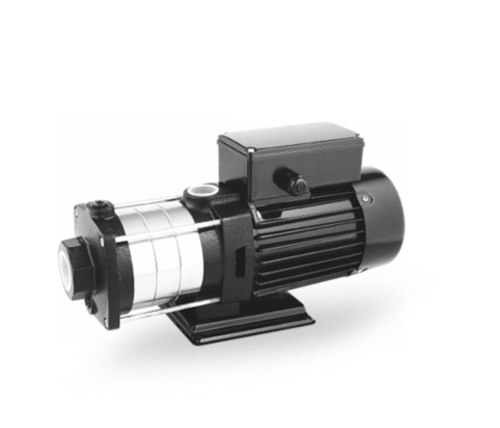

SRM Series Anti-corrrison End-suction Efficiency Water Surface Centrifugal Pump

 End-suction design
Efficient Centrifugal Pump
Efficient Performance
User friendly design

Get A Quote
Download
×
Get password
submit
PREV：ITSRM Series 10Bar IP55 Self-adaptive Energy-saving Multi-stage Centrifugal Pump for Cool SystemNEXT：EMIH-Z(T) Series Two-pole Induction Motor Horizontal Stainless Steel Water Surface Centrifugal Pump with Intelligent Controller

Description :

SRM Series Anti-corrrison End-suction Water Surface Centrifugal Pump is a perfect fit for a wide range of applications, including water supply, irrigation, and industrial processes. With its superior performance and reliability, the Hfm Series Efficient Centrifugal Pump is a must-have for any business that requires a high-quality pump.


Key Features :

    1、End-suction design : This pump is an end suction centrifugal pump that is designed to deliver high flow rates with low energy consumption.

    2、The SRM Series Efficient Centrifugal Pump is made from high-quality materials that are resistant to corrosion, ensuring that it will last for years to come.

    3、Efficient Performance : This pump is designed to deliver maximum performance with minimum energy consumption, making it an eco-friendly choice for businesses that are looking to reduce their carbon footprint.

    4、User friendly design : Featuring a user-friendly design, the SRM Series pump ensures easy installation and hassle-free maintenance.

    5 、1 year warranty

    Components :

    Materials Table

    NO.

    Part

    Material

    1

    Pump Body

    HT200

    2

    Whaft sleeve



    3

     “O” ring



    4

    Diffuser



    5

    Impeller

    Stainless steel

    6

    Mechanical Seal

    Carbon/Ceramic

    7

    Support

    HT200

    8

    Fan Cover



    9

    Fan

    PP

    10

    Motor Cover

    Cast iron

    11

    Shaft and Rotor



    12

     Ball Bearing



    13

    Motor Case

    Aluminum

    14

    Capacitor Holding Box

    ABS

    15

    Capacitor

    Technical Parameter :

    Model

    Power

    Inlet x Outlet

    Max. Flow

    Max. Head

    Max.Suction

    KW

    HP

    (L/min)

    (m)

    (m)

    SRM203

    0.37

    0.50

    1.25"x1"

    60

    26

    8

    SRM204

    0.55

    0.75

    1.25"x1"

    60

    35

    8

    SRM205

    0.75

    1.0

    1.25"x1"

    60

    43

    8

    SRM206

    0.92

    1.25

    1.25"x1"

    60

    52

    8

    SRM403

    0.55

    0.75

    1.25"x1"

    105

    28

    8

    SRM404

    0.75

    1.0

    1.25"x1"

    105

    37

    8

    SRM405

    0.92

    1.25

    1.25"x1"

    105

    46

    8

    SRM406

    1.1

    1.5

    1.25"x1"

    105

    55

    8

    SRM603

    0.75

    1.0

    1.25"x1"

    135

    29

    8

    SRM604

    0.92

    1.25

    1.25"x1"

    135

    38

    8

    SRM605

    1.0

    1.5

    1.25"x1"

    135

    48

    8

    SRM606

    1.5

    2.0

    1.25"x1"

    135

    58

    8
