Wholesale CPM Series Thermal Protector Efficient Water Flow Cast Iron Centrifugal Pump

  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • CPM Series Thermal Protector Efficient Water Flow Cast Iron Centrifugal Pump
  • CPM Series Thermal Protector Efficient Water Flow Cast Iron Centrifugal Pump
Centrifugal Pump

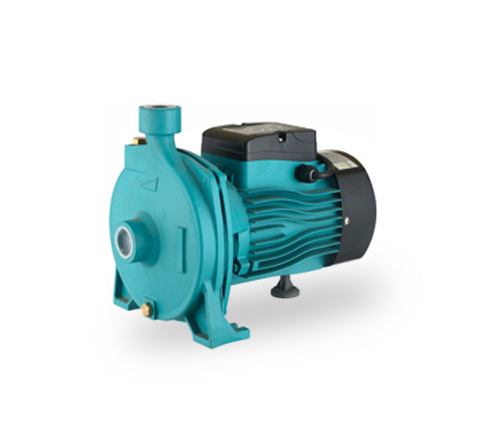

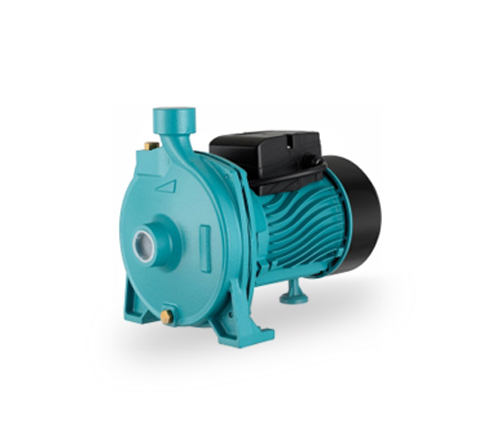

CPM Series Thermal Protector Efficient Water Flow Cast Iron Centrifugal Pump

Thermal Protector
Cast Iron
Rust-free copper inserts
Efficient water flow
Get A Quote
Download
×
Get password
submit

Description :

Crafted with precision and expertise,CPM Series Thermal Protector Efficient Water Flow Cast Iron Centrifugal Pump is built to deliver outstanding results.Made from cast iron, this pump is built to withstand the test of time, ensuring long-lasting performance and reliability.



Key Features :

1、Efficient water flow : Its powerful motor ensures efficient water flow, while the high-pressure capability allows for effective water distribution even in challenging environments.
2、Built-in thermal protector : It features a thermal protector, providing an added layer of safety and preventing overheating. 3、lt is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment, etc.
4、Cast iron pump body and support under special antirust treatment
5、Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time

Components :

Materials Table

NO.

Part

Material

1

Pump Body

HT200

2

Impeller

Brass

3

Mechanical Seal

Carbon/Ceramic

4

Support

HT200

5

Shaft And Rotor



6

Ball Bearing



7

Stator



8

Motor Case

Aluminum

9

Motor Cover

Cast iron

10

Fan

PP

11

Fan Cover



12

Terminal Board

PC

13

Capacitor



14

Terminal Cover

Technical Data :


Model Power Inletx Outlet Max. Flow Max. Head Max. Suction
kW HP (L/min) (m) (m)
CPM-130 0.37 0.50 1"x1" 90 20 8
CPM-146 0.55 0.75 1"x1" 100 28 8
CPM-158 0.75 1.0 1"x1" 110 32 8
CPM-180 1.10 1.50 1"x1" 120 38 8
CPM-190 1.50 2.0 1"x1" 130 42 8
CPM-200 2.20 3.0 1"x1" 135 45 8
CPM-210 2.50 3.50 1"x1" 140 50 8
