Wholesale PUN Series Water shortage protection CTM Performance Centrifugal Pump

  • Taizhou Haipai Import & Export Co., Ltd.
  • PUN Series  Water shortage protection CTM Performance Centrifugal Pump
Centrifugal Pump

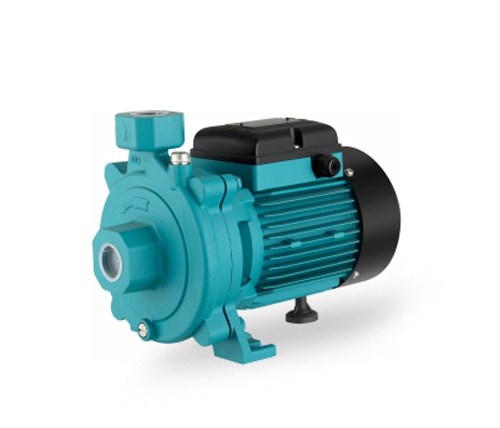

PUN Series Water shortage protection CTM Performance Centrifugal Pump

 Water shortage protection
CTM Performance
Centrifugal Pump
Impeller with twin brass
Get A Quote
Download
×
Get password
submit

Description :

PUN Series Water shortage protection CTM Performance Centrifugal Pump is a high standard quality pump that is designed to meet your water pumping needs . This pump is a centrifugal pump that is capable of delivering high pressure water flow, making it ideal for a wide range of applications . It is a reliable and efficient pump that is perfect for both residential and commercial use . It is a pump that is built to last and is designed to meet your water pumping needs with ease.



Key Features :

1、CTM performance :The CTM performance of this pump is exceptional, and it is capable of delivering high pressure water flow with ease.
2、Water shortage protection :The pump is equipped with water shortage protection, which ensures that the pump automatically shuts off when the water level is too low. This feature helps to prevent damage to the pump and ensures that it operates at optimal levels .
3、
It is a pump that you can trust to deliver consistent performance and meet your water pumping needs
4、Impeller with twin brass
5、1 year warranty

Components :

Materials Table

NO.

Part

Material

1

Pump Body

HT200

2

Impeller

Brass

3

Mechanical Seal

Carbon/Ceramic

4

Support

Cast iron

5

Shaft And Rotor



6

Ball Bearing



7

Motor Case

Aluminum

8

Motor Cover

Cast iron

9

Fan

PP

10

Fan Cover



11

Terminal Board

PC

12

Capacitor



13

Terminal Cover

Technical Data :


Model Power Inletx Outlet Max. Flow Max. Head Max. Suction
KW HP (L/min) (m) (m)
PUN-200 0.20 0.30 1"x1" 90 17 8
PUN-400 0.40 0.60 1"x1" 95 21 8
PUN-401 0.40 0.60 1.25"x1.25" 105 21 8
PUN-600 0.60 0.80 1"x1" 115 25 8
PUN-601 0.60 0.80 1.25"x1.25" 120 25 8
PUN-750 0.75 1.0 1"x1" 185 25 8
PUN-751 0.75 1.0 1.25"x1.25" 130 32 8
