Wholesale 435W to 455W Mono-crystalline 60 Cell Half-cut Solar Panel

  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • 435W to 455W Mono-crystalline 60 Cell Half-cut  Solar Panel
  • 435W to 455W Mono-crystalline 60 Cell Half-cut  Solar Panel
Solar Panels For Solar Pump

435W to 455W Mono-crystalline 60 Cell Half-cut Solar Panel

Mono-crystalline
MBB Half-Cut Solar Cell
120 cells,182mm

Get A Quote
Download
×
Get password
submit

Description:

 A pump that equipped with a 435W to 455W Mono-crystalline 60 Cell Half-cut  Solar Panel ensures maximum efficiency and performance. This solar panel is designed to withstand harsh weather conditions and provide consistent power to the pump.

Key features:

1MBB Half-Cut Solar Cell : 120 cells (6X10x2) ; 10/11 busbar solar cell

2With a remarkable module output of 455W and a module efficiency of up to 21%, the Solar Clean Water Electric Submersible Borehole Pump boasts a higher conversion efficiency per unit.

3Great performance in low light conditions : Its high conversion efficiency ensures that it can operate even in low light conditions, making it a reliable source of water for your home, farm, or business.

4Streamline Installation: The panel boasts a lightweight design that sets it apart from the competition. This feature makes installation and operation a breeze, saving you time and money. Additionally, the transparent backsheet simplifies the installation process and reduces the overall balance of system (BOS) cost.

5 By integrating the panel, users can anticipate a significant enhancement in module performance. This integration leads to a reduction of 5-25% in Levelized Cost of Energy (LCOE) and an increase in Internal Rate of Return (IRR).

Components:

Front cover ( material / thickness )

low-iron tempered glass / 3.2mm

Backsheet ( color )

TPT in white

Cell ( quantity / material / dimensions )

120 ( 6x10x2 ) / monocrystalline silicon

Frame ( material / color )

aluminum hollow-chamber frame on each side anodized aluminum alloy / silver

Junction box ( protection degree )

≥ lP68

Cables & Plug connectors

4, 300mm in length , length can be customized

Panel Dimensions ( L / W / H )

1909x1134x35mm

Panel Weight

25kg

Application class

Class A

Electrical protection class

Class ll

Fire safety class

Class C



Packing:

Container Size

Units / pallet (PSC)

Weight / Pallet

(KG)

Pallet Measurment

(mm)

Units / Container

(PCS)

40HQ

31

790

1950x1130x1260

744

Current-voltage Curves:

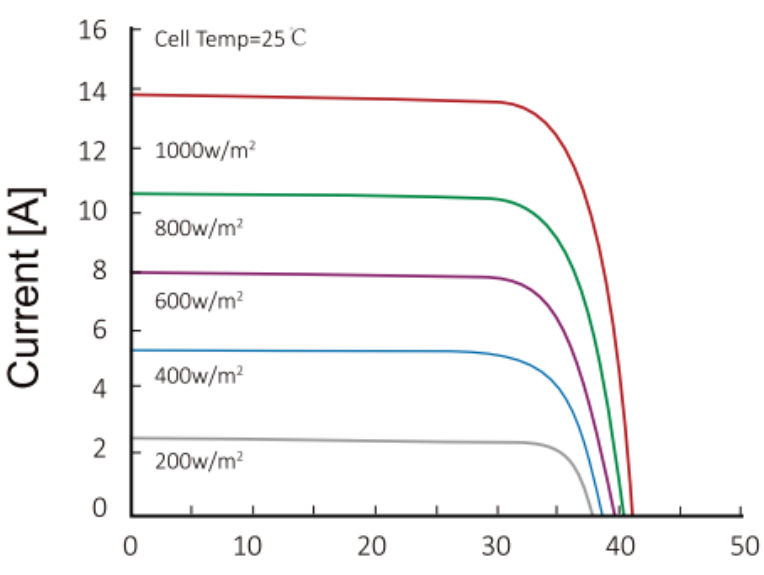

Voltage [V]

Module characteristics at constant

module temperatures of 25°C and

variable levels of irradiance

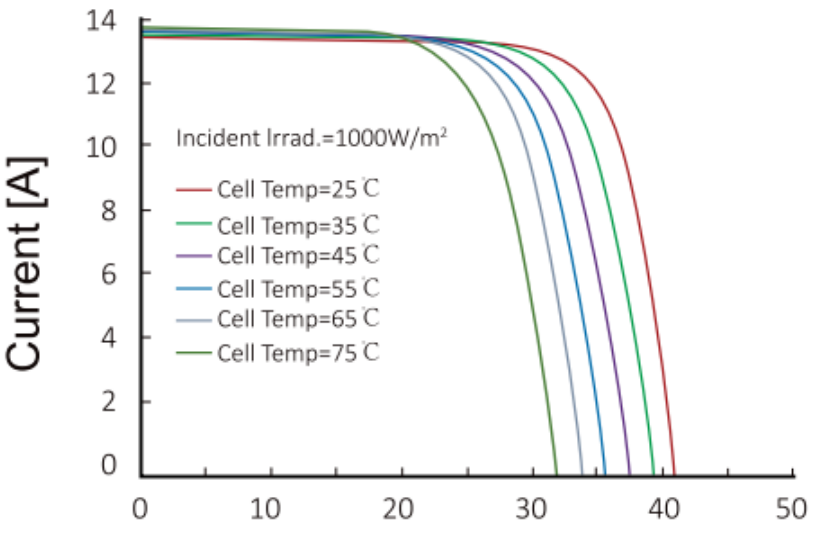

Voltage [V]

Module characteristics at variable

module temperatures and constant

module irradiance of 1.000 W/m²

Production of Solar Panel:

Electrical Performance Data:

182mm series, 60-CELL HALF-CUT SERIES

Panel type : ESM60MH

435M

440M

445M

450M

455M

Maximum Power  ( Wp )

435W

440W

445W

450W

455W

Open circuit Voltage ( Voc )

40.65V

40.85V

41.05V

41.25V

41.45V

Short circuit Current ( lsc )

13.65A

13.72A

13.78A

13.85A

13.92A

Maximum Power Voltage ( Vm )

34.10V

34.30V

34.50V

34.70V

34.90V

Maximum Power Current ( lm )

12.76A

12.83A

12.90A

12.97A

13.04A

Solar efficiency

20.1%

20.3%

20.5%

20.8%

21%

Maximum Series Fuse

25A

Watts positive tolerance

0~+3%

Number of Diode

3

Standard Test Conditions

1000W/,25°CAM1.5

Maximum System Voltage

1500V/DC

Temperature-Coefficient Isc

+0.048%/℃

Temperature-Coefficient Voc

-0.270%/℃

Temperature-Coefficient Pmpp

-0.350%/℃

Operating Temperature

-40℃….+85℃

Normal Operating Cell Temperature

45±2℃

Load Capacity for the cover of the panel ( glass )

5400Pa ( IEC61215 ) ( snow )

Load Capacity for the front & back of the panel

2400Pa ( IEC61215 ) ( wind )


Electrical Performance Data ( NOCT ) :

Panel type : ESM60MH

435M

440M

445M

450M

455M

Maximum Power ( Wp )

329W

332.5W

360.5W

340W

344W

Open circuit Voltage ( Voc )

38.20V

38.40V

38.60V

38.80V

39.00V

Short circuit Current ( lsc )

10.85A

10.90A

10.95A

11.00A

11.07A

Maximum Power Voltage ( Vm )

32.20V

32.40V

32.60V

32.80V

33.00V

Maximum Power Current ( lm )

10.21A

10.26A

10.32A

10.38A

10.43A
