3EPC 3" DC Brushless Solar Submersible Deep Well Pump

3" Compact Size
DC Brushless
Plastic Impeller Type
Brass or Stainless Steel for Outlet/Connection/Oil Cylinder
NSK Bearing
MPPT Function
Get A Quote
Download
×
Get password
submit

Main Features:

  • Permanent magnet DC brushless synchronous motor:

   (1)The efficiency is improved by 15%-20%

   (2)Save energy

   (3)Reduce the consumption of solar panels

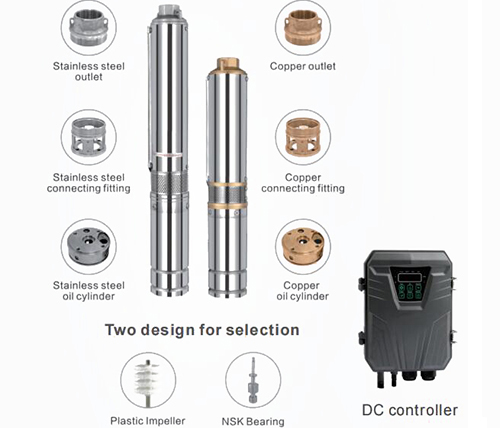

  • Brass or stainless steel outlet/connector/ oil cylinder for option.
  • Japanese NSK bearing: prolong the working life.
  • Alloy mechanical seal: Longer working life and high reliability.
  • Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
  • The pump parts are processed by high-precision and fully automatic machines, strictly controlling the dimension precision and smoothness.
  • Intelligent water shortage and full water protection.
  • DC Controller:

   (1) Waterproof grade: IP65.

   (2) Ambient temperature: -15℃ to 60℃.

   (3) MPPT function, the solar power utilization rate is higher.

   (4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.

   (5) LED displays the power, voltage, current, speed etc working condition and error code.

   (6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and user also can change the speed of pump manually.

   (7) Automatically start and stop working.

   (8) Water proof and leak-proof: Double seal effect.

   (9) Soft start: No impulse current, protect the pump motor.

   (10) High voltage/Low voltage/Over-current/High temperature protection.

  • 2 years warranty.

Components

Matrial

Pump external casing

Stainless Steel

Outlet

Copper

Connection

Copper

Oil cylinder

Copper

Impeller

Plastic

Bearing

NSK

Shaft

Complete SS304

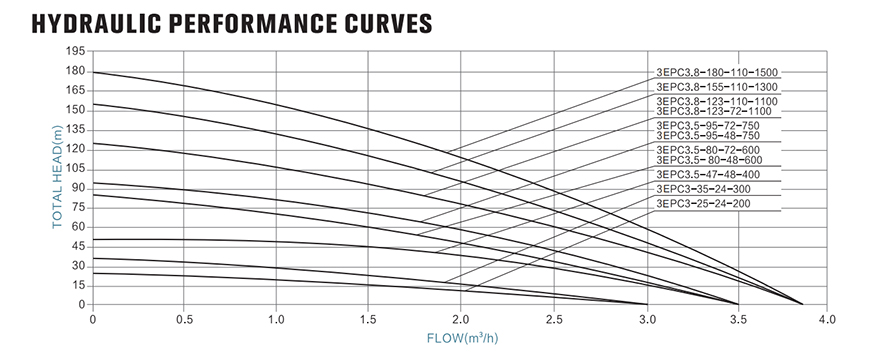

ITEM Voltage Optimum input voltage(DC) Power Max. Flow Max. Head Outlet Cable Solar panel
Open circuit voltage(VOC) Power
3EPC3-25-24-200 24V 30V-48V 200W 3.0m³/h 25m 1.25" 2m <50V ≥1.3*PUMP POWER
3EPC3-35-24-300 24V 30V-48V 300W 3.0m³/h 35m 1.25" 2m <50V ≥1.3*PUMP POWER
3EPC3.5-47-48-400 48V 60V-90V 400W 3.5m³/h 47m 1.25" 2m <100V ≥1.3*PUMP POWER
3EPC3.5- 80-48-600 48V 60V-90V 600W 3.5m³/h 80m 1.25" 2m <100V ≥1.3*PUMP POWER
3EPC3.5-80-72-600 72V 90V-120V 600W 3.5m³/h 80m 1.25" 2m <150V ≥1.3*PUMP POWER
3EPC3.5-95-48-750 48V 60V-90V 750W 3.5m³/h 95m 1.25" 2m <100V ≥1.3*PUMP POWER
3EPC3.5-95-72-750 72V 90V-120V 750W 3.5m³/h 95m 1.25" 2m <150V ≥1.3*PUMP POWER
3EPC3.8-123-72-1100 72V 90V-120V 1100W 3.8m³/h 123m 1.25" 2m <150V ≥1.3*PUMP POWER
3EPC3.8-123-110-1100 110V 110V-150V 1100W 3.8m³/h 123m 1.25" 2m <200V ≥1.3*PUMP POWER
3EPC3.8-155-110-1300 110V 110V-150V 1300W 3.8m³/h 155m 1.25" 2m <200V ≥1.3*PUMP POWER
3EPC3.8-180-110-1500 110V 110V-150V 1500W 3.8m³/h 180m 1.25" 2m <200V ≥1.3*PUMP POWER

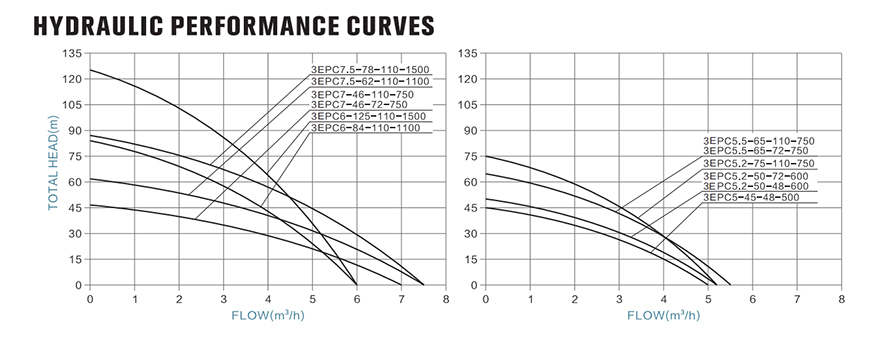

3EPC5-45-48-500 48V 60V-90V 500W 5m³/h 45m 1.5" 2m <100V ≥1.3*PUMP POWER
3EPC5.2-50-48-600 48V 60V-90V 600W 5.2m³/h 50m 1.5" 2m <100V ≥1.3*PUMP POWER
3EPC5.2-50-72-600 72V 90V-120V 600W 5.2m³/h 50m 1.5" 2m <150V ≥1.3*PUMP POWER
3EPC5.2-75-110-750 110V 110V-150V 750W 5.2m³/h 75m 1.5" 2m <200V ≥1.3*PUMP POWER
3EPC5.5-65-72-750 72V 90V-120V 750W 5.5m³/h 65m 1.5" 2m <150V ≥1.3*PUMP POWER
3EPC5.5-65-110-750 110V 110V-150V 750W 5.5m³/h 65m 1.5" 2m <200V ≥1.3*PUMP POWER
3EPC6-84-110-1100 110V 110V-150V 1100W 6m³/h 84m 1.5" 2m <200V ≥1.3*PUMP POWER
3EPC6-125-110-1500 110V 110V-150V 1500W 6m³/h 125m 1.5" 2m <200V ≥1.3*PUMP POWER
3EPC7-46-72-750 72V 90V-120V 750W 7m³/h 46m 1.5" 2m <150V ≥1.3*PUMP POWER
3EPC7-46-110-750 110V 110V-150V 750W 7m³/h 46m 1.5" 2m <200V ≥1.3*PUMP POWER
3EPC7.5-62-110-1100 110V 110V-150V 1100W 7.5m³/h 62m 1.5" 2m <200V ≥1.3*PUMP POWER
3EPC7.5-78-110-1500 110V 110V-150V 1500W 7.5m³/h 78m 1.5" 2m <200V ≥1.3*PUMP POWER
