4SPM2 4" Stainless Steel Impeller Overload Protection High Efficiency Borehole Submersible Pump

Minimum well diameter : 4"
Rated  capacity  : 2m³/h
Top chock : Cast-Cu or iron or 304 SS
Stainless Steel Impeller
Overload Protection
High Efficiency
Borehole Submersible Pump
Get A Quote
Download
×
Get password
submit

Description :

The 4SPM2 4" Stainless Steel Impeller Overload Protection High Efficiency Borehole Submersible Pump is a reliable and efficient water pumping solution designed for borehole applications. This pump is equipped with a stainless steel impeller, overload protection, and high efficiency features.


Key Features :

1、The stainless steel impeller is a key feature of this pump, providing durability and resistance to corrosion. It is designed to efficiently move water, ensuring optimal performance and longevity of the pump.
2、The overload protection feature is designed to safeguard the pump from damage caused by excessive load or electrical issues. It automatically shuts off the pump when it detects an overload, preventing motor burnout and extending the lifespan of the pump.
3、The high efficiency design of the pump ensures that it operates with minimal energy consumption. This not only reduces electricity costs but also makes the pump environmentally friendly.
4、The 4SPM2 pump is specifically designed for borehole applications, allowing it to be fully submerged in water. This submersible design maximizes efficiency and minimizes noise, making it suitable for various settings including residential, commercial, or agricultural.
5、Maximum fluid temperature up to +50℃
6、Maximum sand content : 0.25%
7、Minimum well diameter : 4"


Motor and Pump :

1. Electric motor with rewind capability
2. Single-phase: 110-220V/60Hz or Three-phase: 220-380V/60Hz power supply options
3. Equipped with a starter control box or digital automatic control box
4. Pumps designed with stress considerations on the casing
5. Compliant with NEMA dimensional standards for consistency
6. Curve tolerances adhere to ISO 9903 guidelines for accuracy.




Options on request :

Special mechanical seal
Other voltages or frequency 50Hz
Single phase motor with built-in capacitor




Warranty : 2 years

(according to our general sales conditions)


CE Certificate :


Product Line :


Components and Materials :

Materials Table

NO.

Part

Material

1

Pump external casing

AISI 304 SS

2

Delivery casing

AISI 304 SS

3

Suction lantern

AISI 304 SS

4

Diffuser

AISI 304 SS

5

Impeller

AISI 304 SS

6

 Pump shaft

AISI 304 SS

7

Shaft coupling

AISI 304 SS

8

Wear ring

Rubber

9

Motor external casing

AISI 304 SS

10

Oil chamber

Cast-Cu ASTM C85500

Cast-iron ASTM NO.30

AISI 304 SS

11

Bottom support

AISI 304 SS

12

Mechanical Seal

Special seal for deep well (Graphite-Ceramic)

13

Seal lubricant oil

Oil for food machinery and pharmaceutic use

14

Motor shaft

AISI 304 SS-ASTM 5140

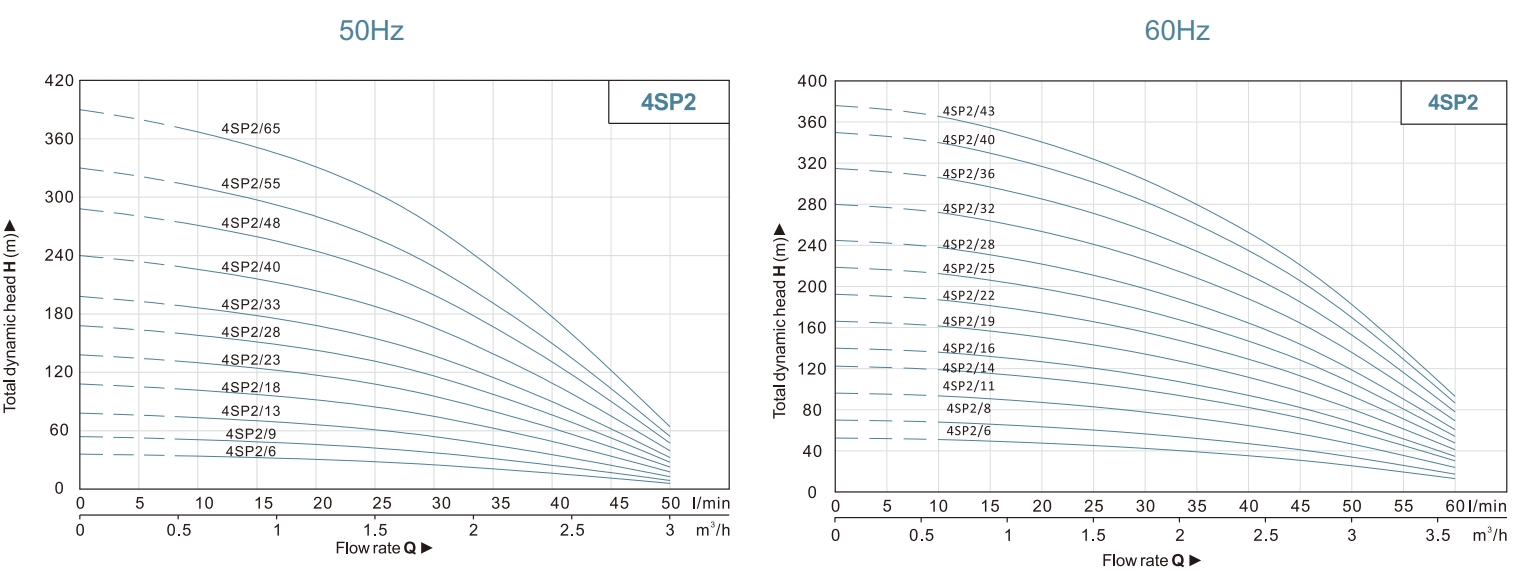

Performance Curves :



Performance Data ( 50Hz ) :

Model

Power

Deliver

1~220V/240V

3~380V/415V

KW

HP

Q(m³/h)

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.0

Q(l/min)

0

5

10

15

20

25

30

35

40

45

50

4SPM2/6

4SP2/6

0.37

0.5

H(m)

36

35

34

32

31

28

25

21

16

11

6

4SPM2/9

4SP2/9

0.37

0.5

54

53

51

48

46

42

37

31

25

17

9

4SPM2/13

4SP2/13

0.55

0.75

78

76

73

70

66

61

54

45

35

24

13

4SPM2/18

4SP2/18

0.75

1

108

105

102

97

92

85

75

63

49

34

18

4SPM2/23

4SP2/23

1.1

1.5

138

134

130

124

117

108

96

80

63

43

23

4SPM2/28

4SP2/28

1.3

1.75

168

164

158

151

143

132

116

97

76

53

28

4SPM2/33

4SP2/33

1.5

2

198

193

186

178

168

155

137

115

90

62

32

4SPM2/40

4SP2/40

1.8

2.5

240

234

226

215

204

188

166

139

109

75

39

4SPM2/48

4SP2/48

2.2

3

288

281

271

258

244

226

199

167

131

90

47

4SPM2/55

4SP2/55

2.6

3.5

330

322

311

296

280

259

228

191

150

103

54

4SPM2/65

4SP2/65

3

4

390

380

367

350

331

306

270

226

177

122

64

Performance Data ( 60Hz ) :

Model

Power

Deliver

1~110V/220V

3~220V/380V

KW




HP




Q(m³/h)

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.0

3.3

3.6

Q(l/min)

0

5

10

15

20

25

30

35

40

45

50

55

60

4SPM2/6

4SP2/6

0.37

0.5

H(m)

52

52

51

49

47

45

42

38

35

30

25

18

12

4SPM2/8

4SP2/8

0.55

0.75

70

69

68

66

63

60

56

52

47

42

34

26

17

4SPM2/11

4SP2/11

0.75

1

96

95

93

90

87

83

77

71

65

57

47

35

24

4SPM2/14

4SP2/14

0.92

1.25

122

121

119

115

111

106

98

91

83

73

60

45

30

4SPM2/16

4SP2/16

1.1

1.5

140

138

136

131

127

121

112

104

95

83

69

51

34

4SPM2/19

4SP2/19

1.3

1.75

166

164

161

156

150

143

133

123

112

99

81

61

41

4SPM2/22

4SP2/22

1.5

2

193

90

187

180

174

166

154

143

130

114

94

70

47

4SPM2/25

4SP2/25

1.8

2.5

219

216

212

205

198

189

175

162

148

130

107

80

54

4SPM2/28

4SP2/28

2.2

3

245

242

238

230

222

211

196

182

166

146

120

90

60

-

4SP2/32

2.6

3.5

280

276

272

262

253

241

224

208

189

166

137

102

69

-

4SP2/36

3

4

315

311

306

295

285

271

252

234

213

187

154

115

78

-

4SP2/40

3.7

5

350

345

340

328

316

301

280

260

236

208

171

128

86

-

4SP2/43

4

5.5

376

371

366

352

340

324

301

280

254

223

184

137

93
