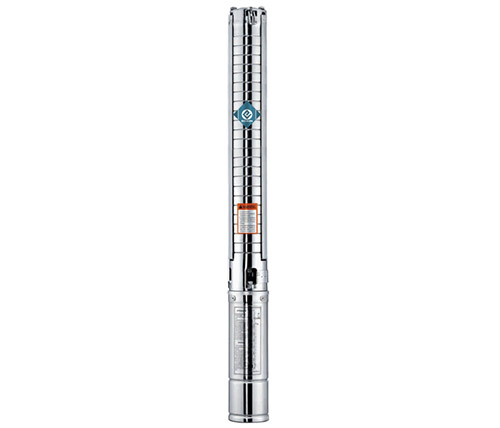

4SPM3 4" Low Energy Consumption Stainless Steel Motor Borehole Deep Well Pump

Minimum well diameter : 4"
Rated  capacity  : 3m³/h
Top chock : Cast-Cu or iron or 304 SS
 Low Energy Consumption
Stainless Steel Motor
Borehole Deep Well Pump

Get A Quote
Download
×
Get password
submit

Description :

4" Low Energy Consumption Stainless Steel Motor Borehole Deep Well Pump is a reliable and efficient solution for all your borehole submersible pump needs. This top-of-the-line pump is designed to deliver exceptional performance, ensuring a constant and steady water supply for various applications. With its cutting-edge technology and robust construction, this pump is built to withstand the most demanding conditions, making it the ideal choice for deep well installations.



Key Features :

1、Crafted with precision and engineered for excellence, this deep well pump boasts a low energy consumption stainless steel motor. This motor not only ensures superior durability but also guarantees efficient power consumption, resulting in significant energy savings.
2、The motor is also equipped with a heating mass capacity, ensuring optimal performance even in extreme temperatures. 3、Its compact and ergonomic design ensures hassle-free setup, while its durable construction guarantees long-lasting performance. With its user-friendly interface, operating this pump is a breeze, allowing you to focus on your tasks without any unnecessary complications..
4、Equipped with advanced features, this submersible pump offers unparalleled performance. Its high-pressure capabilities allow it to deliver water at a consistent and powerful rate, making it suitable for a wide range of applications, including irrigation, domestic water supply, and industrial use.
5、Maximum fluid temperature up to +50℃
6、Maximum sand content : 0.25%
7、Minimum well diameter : 4"


Motor and Pump:

1. Electric motor with rewindable feature

2. Single-phase options: 110-220V/60Hz or Three-phase options: 220-380V/60Hz

3. Equipped with a starter control box or digital automatic control box

4. Pumps are designed with casing stress analysis

5. Adheres to NEMA dimensional standards

6. Curve tolerances comply with ISO 9903 guidelines


Options on request :

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor



Warranty : 2 years

(according to our general sales conditions)


CE Certificate :


Product Line :

Components :

Materials Table

NO.

Part

Material

1

Pump external casing

AISI 304 SS

2

Delivery casing

AISI 304 SS

3

Suction lantern

AISI 304 SS

4

Diffuser

AISI 304 SS

5

Impeller

AISI 304 SS

6

 Pump shaft

AISI 304 SS

7

Shaft coupling

AISI 304 SS

8

Wear ring

Rubber

9

Motor external casing

AISI 304 SS

10

Oil chamber

Cast-Cu ASTM C85500

Cast-iron ASTM NO.30

AISI 304 SS

11

Bottom support

AISI 304 SS

12

Mechanical Seal

Special seal for deep well (Graphite-Ceramic)

13

Seal lubricant oil

Oil for food machinery and pharmaceutic use

14

Motor shaft

AISI 304 SS-ASTM 5140

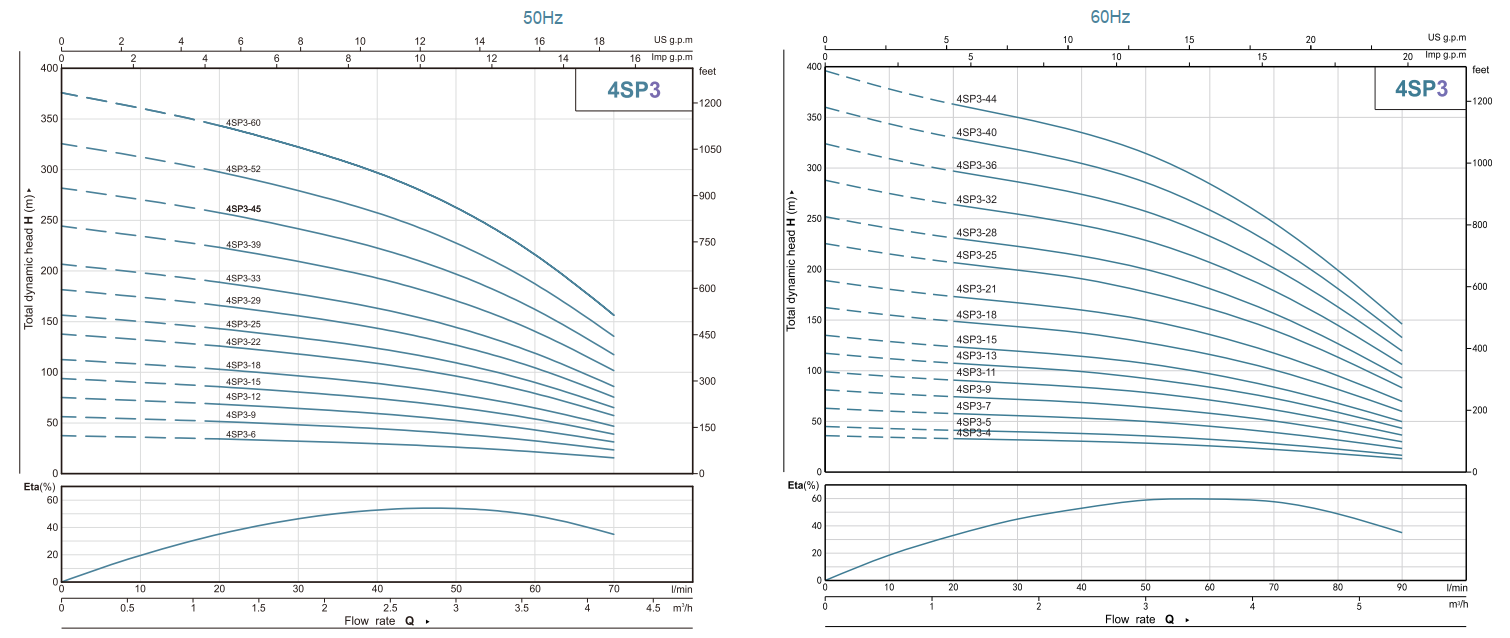

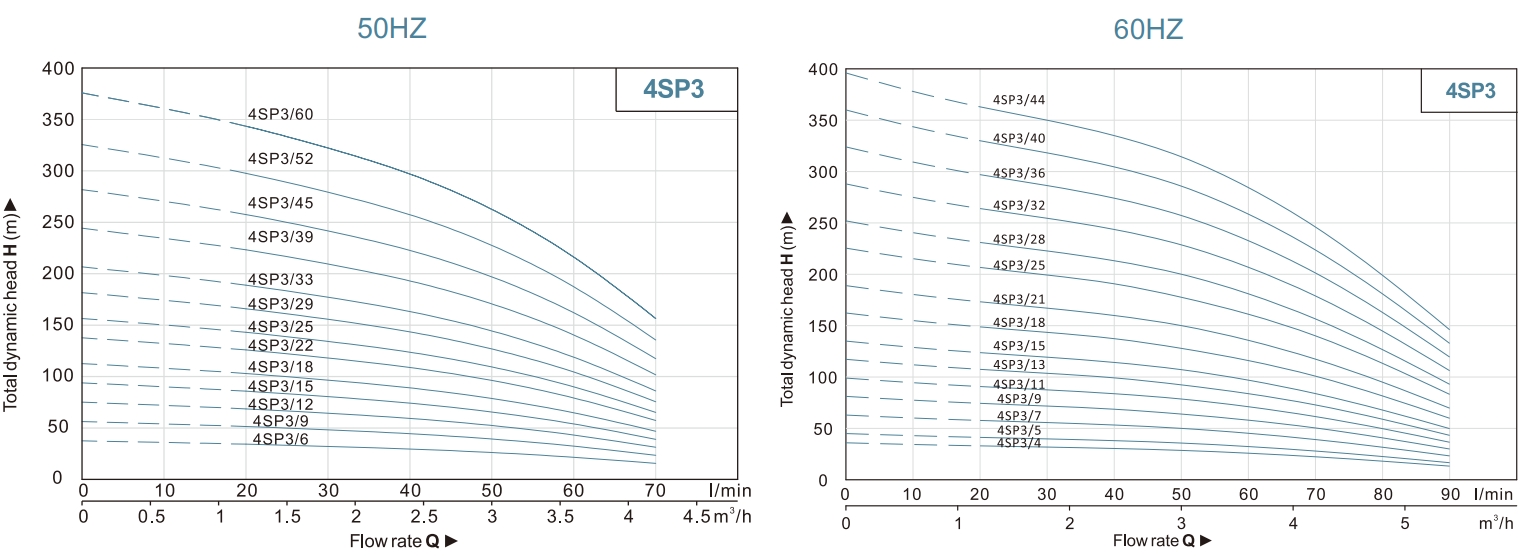

Performance Curves  :



Performance Data ( 50Hz ) :

Model

Power

Deliver

1~220-240V

3~380-415V

KW

HP

Q(m³/h)

0

0.6

1.2

1.8

2.4

3.0

3.6

4.2

Q(l/min)

0

10

20

30

40

50

60

70

4SPM3/6

4SP3/6

0.37

0.5

H(m)

37

36

34

32

29

26

21

15

4SPM3/9

4SP3/9

0.55

0.75

56

54

51

48

44

39

32

23

4SPM3/12

4SP3/12

0.75

1

74

71

68

64

59

52

43

31

4SPM3/15

4SP3/15

0.92

1.25

93

89

85

80

73

65

53

39

4SPM3/18

4SP3/18

1.1

1.5

112

107

102

96

88

78

64

46

4SPM3/22

4SP3/22

1.3

1.75

136

131

125

117

108

95

78

57

4SPM3/25

4SP3/25

1.5

2

155

149

142

133

122

108

89

65

4SPM3/29

4SP3/29

1.8

2.5

180

173

164

154

142

126

103

75

4SPM3/33

4SP3/33

2.2

3

205

196

187

175

162

143

118

85

4SPM3/39

4SP3/39

2.6

3.5

242

232

221

207

191

169

139

101

4SPM3/45

4SP3/45

3

4

279

268

255

239

220

195

160

116

-

4SP3/52

3.7

5

322

309

295

276

255

225

185

134

-

4SP3/60

4

5.5

372

357

340

319

294

260

214

155


Performance Data (60Hz) :

Model

Power

Deliver

1~110-220V

3~220-380V

KW

HP

Q(m³/h)

0

0.6

1.2

1.8

2.4

3.0

3.6

4.2

4.8

5.4

Q(l/min)

0

10

20

30

40

50

60

70

80

90

4SPM3/4

4SP3/4

0.37

0.5

H(m)

37

35

33

32

30

29

26

23

18

13

4SPM3/5

4SP3/5

0.55

0.75

46

44

42

41

39

36

33

29

23

17

4SPM3/7

4SP3/7

0.75

1

64

61

58

56

53

50

45

39

31

23

4SPM3/9

4SP3/9

0.92

1.25

81

77

74

72

69

64

58

50

41

30

4SPM3/11

4SP3/11

1.1

1.5

100

95

91

88

84

79

71

62

50

37

4SPM3/13

4SP3/13

1.3

1.75

117

112

107

103

99

92

84

73

59

43

4SPM3/15

4SP3/15

1.5

2

135

129

124

119

114

107

96

84

68

50

4SPM3/18

4SP3/18

1.8

2.5

162

155

149

143

137

128

116

101

81

60

4SPM3/21

4SP3/21

2.2

3

189

180

173

167

160

150

135

117

95

70

-

4SP3/25

2.6

3.5

225

215

206

199

190

177

161

140

113

83

-

4SP3/28

3

4

252

241

231

223

213

200

180

157

127

93

-

4SP3/32

3.7

5

288

275

264

255

244

229

206

179

145

106

-

4SP3/36

4

5.5

324

309

297

286

274

257

232

201

163

119

-

4SP3/40

5

7

360

344

330

318

305

286

257

224

181

133

-

4SP3/44

5.5

7.5

396

378

363

350

335

314

283

246

199

146
