2' DC Brushless Solar Pump With Plastic Impeller 2EPC

2" DC Brushless Solar Pump With Plastic Impeller 2EPC

ADVANTAGE OF DC SOLAR PUMP

Contact Us

Main Features:

●Permanent magnet DC brushless synchronous motor:

   (1)The efficiency is improved by 15%-20%

   (2)Save energy

   (3)Reduce the consumption of solar panels

●Brass or stainless steel outlet/connector/ oil cylinder for option.

●Japanese NSK bearing: prolong the working life.

●Alloy mechanical seal: Longer working life and high reliability.

●Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

●The pump parts are processed by high-precision and fully automatic machines, strictly controlling the dimension precision and smoothness.

● Intelligent water shortage and full water protection.

●DC Controller:

   (1) Waterproof grade: IP65.

   (2) Ambient temperature: -15℃ to 60℃.

   (3) MPPT function, the solar power utilization rate is higher.

   (4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.

   (5) LED displays the power, voltage, current, speed etc working condition and error code.

   (6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and user also can change the speed of pump manually.

   (7) Automatically start and stop working.

   (8) Water proof and leak-proof: Double seal effect.

   (9) Soft start: No impulse current, protect the pump motor.

   (10) High voltage/Low voltage/Over-current/High temperature protection.

●2 years warranty.

EDWIN PUMP has been a 2" DC Brushless Solar Pump With Plastic Impeller 2EPC suppliers and company from China. Factory export series of pumps which include more than 40 series, 2000 models. We also accept OEM/ODM for many years.

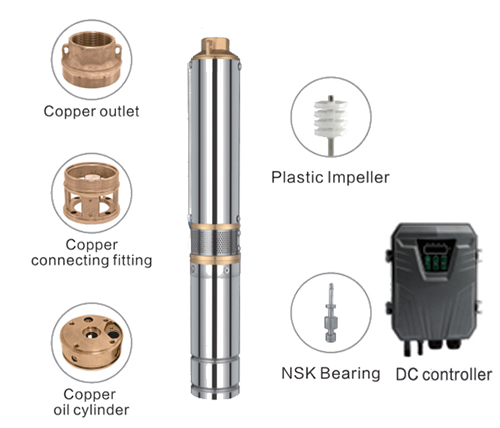

Components

Material

Outlet

Copper

Connection

Copper

Oil cylinder

Copper

Impeller

Plastic

Bearing

NSK

Shaft

Complete SS304

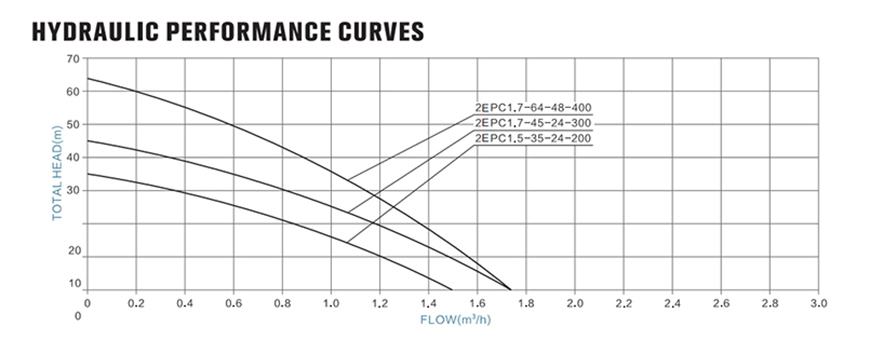

ITEM Voltage Optimum input voltage(DC) Power Max. Flow Max. Head Outlet Cable Solar panel
Open circuit voltage(VOC) Power
2EPC1.5-35-24-200 24V 30V-48V 200W 1.5m³/h 35m 0.75" 2m <50V ≥1.3*PUMP POWER
2EPC1.7-45-24-300 24V 30V-48V 300W 1.7m³/h 45m 0.75" 2m <50V ≥1.3*PUMP POWER
2EPC1.7-64-48-400 48V 60V-90V 400W 1.7m³h 64m 0.75" 2m <100V ≥1.3*PUMP POWER
