Wholesale 2SDM0.7 2" Borehole Single-phase Safe Submersible Pump for Domestic Use

  • Taizhou Haipai Import & Export Co., Ltd.
  • 2SDM0.7 2' Borehole Single-phase Safe Submersible Pump for Domestic Use
Borehole Submersible Pump/Oil Filled Borehole Pump

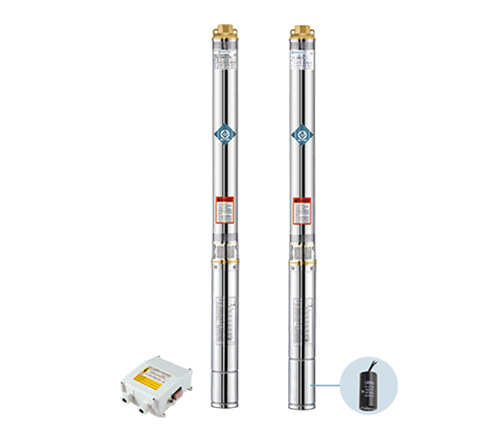

2SDM0.7 2" Borehole Single-phase Safe Submersible Pump for Domestic Use

Minimum well diameter : 2"
Rated capacity : 0.7m³/h
Single-phase
Safe and reliable
Outlet : brass
for Domestic Use
Get A Quote
Download
×
Get password
submit
PREV：No previous articleNEXT：2.5SDM2 2.5" Borehole User-friendly Wear-resistant Efficiency Submersible Pump

Description ：

2SDM0.7 2" Borehole Single-phase Safe Submersible Pump for Domestic Use is specifically engineered for cross-border e-commerce platforms, ensuring that your product stands out among the competition.



Key Features :

1、Safe and reliable pump : Safety is a top priority, and this pump is designed with that in mind. It adheres to the highest safety standards, providing you with peace of mind. Its submersible design ensures that it operates quietly and efficiently, without causing any disruptions. Additionally, it is built to withstand harsh weather conditions, ensuring durability and longevity.
2、Single phase : Single-phase electricity is 220-240V/50Hz , which is more suitable for family residential use .
3、Motor and pump set as a whole, can dive into the water operation
4、Operation Conditions :
   Maximum fluid temperature up to +35℃
   Maximum sand content : 0.25%
   2SD minimum well diameter : 2"
5、Rewindable motor is equipped with start control box or digital auto-control box
6、Pumps are designed by casing stressed
7、Curve tolerance according to ISO 9906
8、If you have extra request , you can choose other voltages or frequency 60Hz , single phase motor with built-in capacitor and special mechanical seal
9、According to our general sales conditions , we ensure you have 2 years warranty.


CE Certificate :




Product Line :


Components and Materials :

Materials Table

NO.

Part

Material

1

Pump external casing

AISI 304 SS

2

Delivery casing

Cast-Cu ASTM C85500

3

Suction lantern

Cast-Cu ASTM C85500

4

Diffuser

Plastic.PC

5

Impeller

Plastic.POM

6

 Pump shaft

AISI 304 SS

7

Shaft coupling

AISI 304 SS

8

Wear ring

AISI 304 SS

9

Motor external casing

AISI 304 SS

10

Top cover

①　Cast-Cu ASTM C85500

②　Cast-iron ASTM NO.30

11

Bottom support

AISI 304 SS

12

Mechanical Seal

Special seal for deep well (Graphite-Ceramic/TC)

13

Seal lubricant oil

Oil for food machinery and pharmaceutic use

14

Motor shaft

AISI 303 SS-ASTM 1045/5140

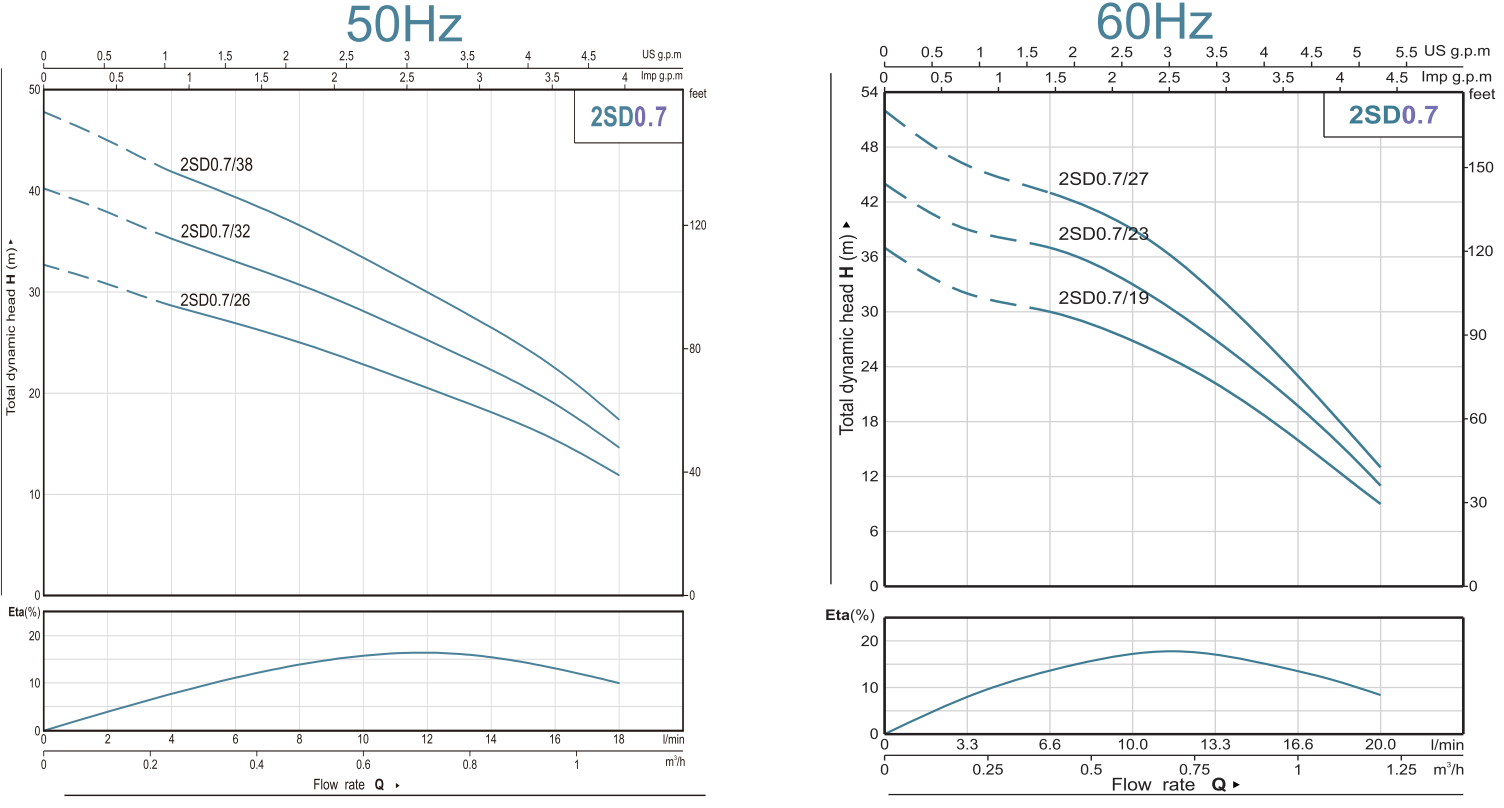

Performance Curves  :



Performance Data  ( 50Hz ) :

Model

Power

Deliver

1~220V/240V

KW

HP

Q(m³/h)

0

0.12

0.24

0.36

0.48

0.60

0.72

0.84

0.96

1.08

Q(l/min)

0

2

4

6

8

10

12

14

16

18

2SDM0.7/26

0.18

0.25

H(m)

33

31

29

27

25

23

21

18

16

12

2SDM0.7/32

0.25

0.33

40

38

35

33

31

28

25

22

19

14

2SDM0.7/38

0.37

0.5

48

45

42

39

37

33

30

26

23

17


Performance Data  ( 60Hz ) :

Model

Power

Deliver

1-110V/220V

KW

HP

Q(m³/h)

0

0.2

0.4

0.6

0.8

1.0

1.2

Q(l/min)

0

3.3

6.6

10

13.3

16.6

20

2SDM0.7/19

0.18

0.25

H(m)

37

32

30

27

23

16

9

2SDM0.7/23

0.25

0.33

44

39

37

33

27

20

11

2SDM0.7/27

0.37

0.5

52

46

43

39

32

23

13
