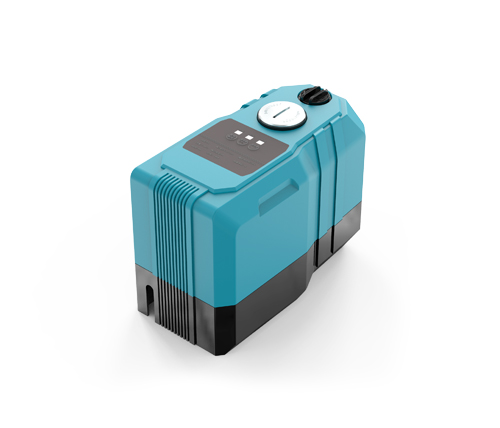

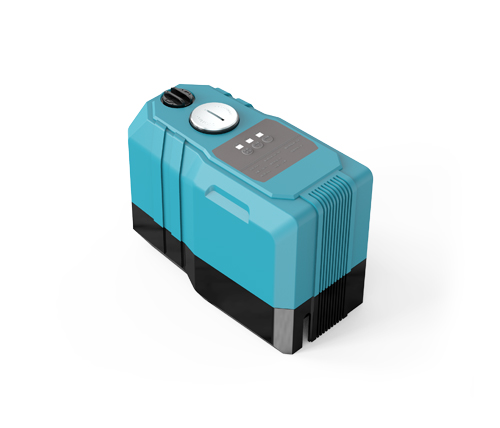

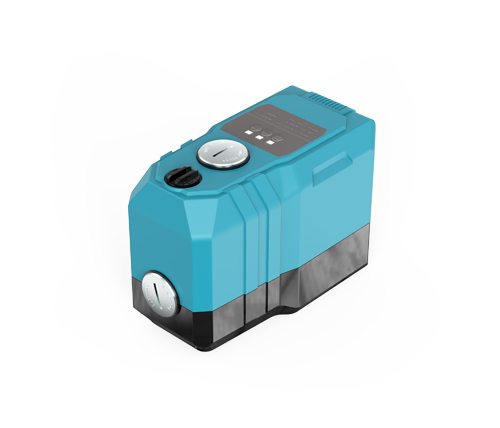

TW Series Energy Saving Smart Permanent Magnet Shield Booster Pump
View All Products
en
Safe Voltage : DC 24-40V
Super Quiet ( 20-30dB )
Dual Control
Food Grade Materials (No Rust water)
Energy saving
30,000 hours of long life
The TW Series Super Silent Auto-adaptive Dual Control Low Voltage Permanent Magnet Household Booster Pump is a high-quality pump designed to increase water pressure in residential environments.
Key Features :
Safety First: Operates at a DC 24-40V output voltage, ensuring it's a human-safe voltage with no risk of electric shock.
Longevity: Boasts an impressive service life of 30,000 hours, making it a long-term investment for your water system.
Silent Operation: With a noise level of just 20-30dB, thanks to its permanent magnet motor and water cooling structure, it operates quietly without the need for a cooling fan.
Corrosion-Free: Constructed with food-grade plastic for all fluid parts, ensuring no rust and safe water supply.
Dual Control System: Equipped with a pressure and flow switch control system, supporting stepless pressure regulation for pumps with a 0-100m head.
Timing Function: Supply water to the water tower at regular intervals(optional).
Easy Maintenance: High pass rate of standard parts and high production efficiency of assembly parts allow for quick and easy maintenance with just a cross screwdriver.
Waterproof: It can be used directly in the bathroom, and the whole machine is waterproof.
Working conditions :
Liquid Temperature: 0-100°C.
Ambient Temperature: 4-55℃
Electric Pump Speed: 12,000 revolutions per minute (RPM)
Insulation: Class H
Protection: IP55
Duty Cycle: S1
Max Suction: +9m
Input Voltage: Single phase 100-140V, 50/60Hz, 160-240V, 50/60Hz
Application :
Ideal for well water lifting and water tower water filling.
Perfect for living water supply and garden irrigation.
Effective for pipeline pressure boosting and supporting equipment such as solar energy water supply systems and water heaters.
Designed for transferring clean water or non-corrosive liquids without solid particles and fibers.

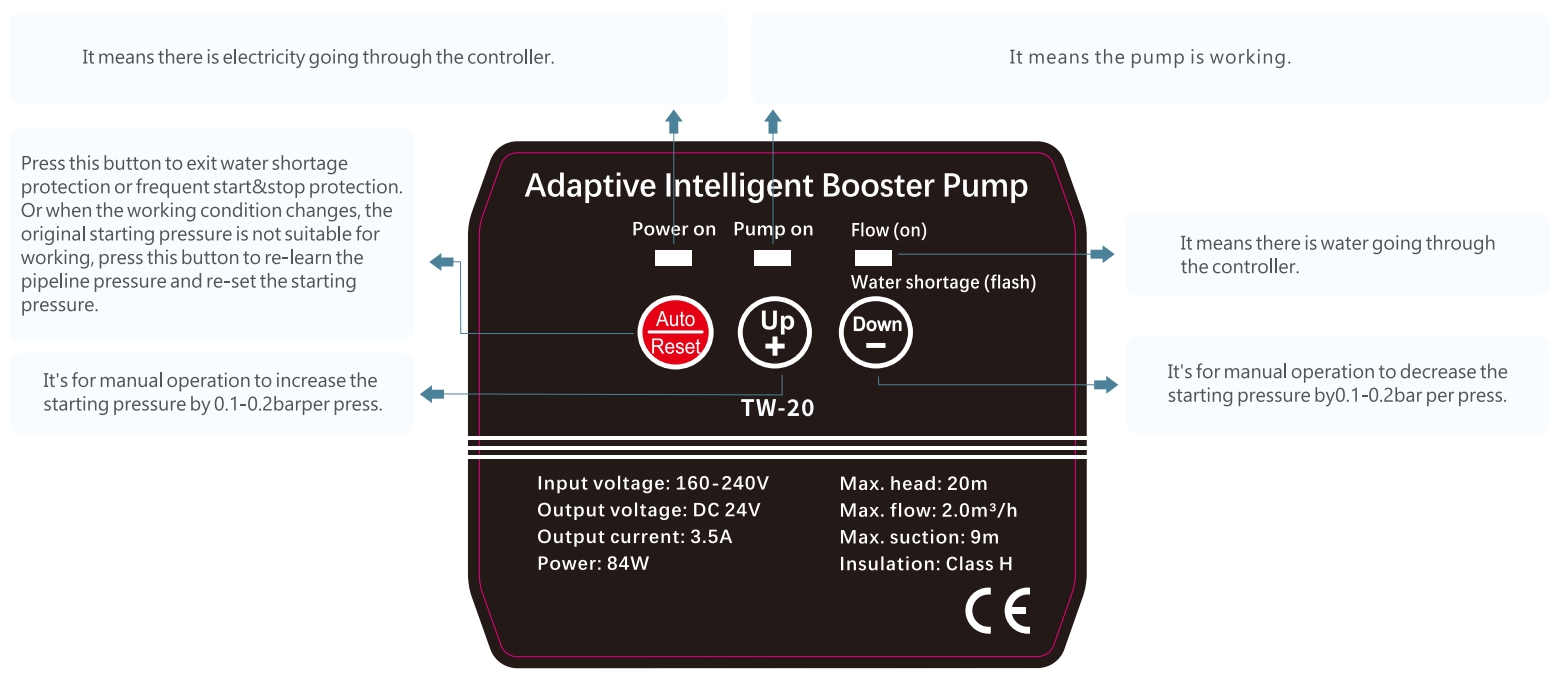

Operation Interface :



|

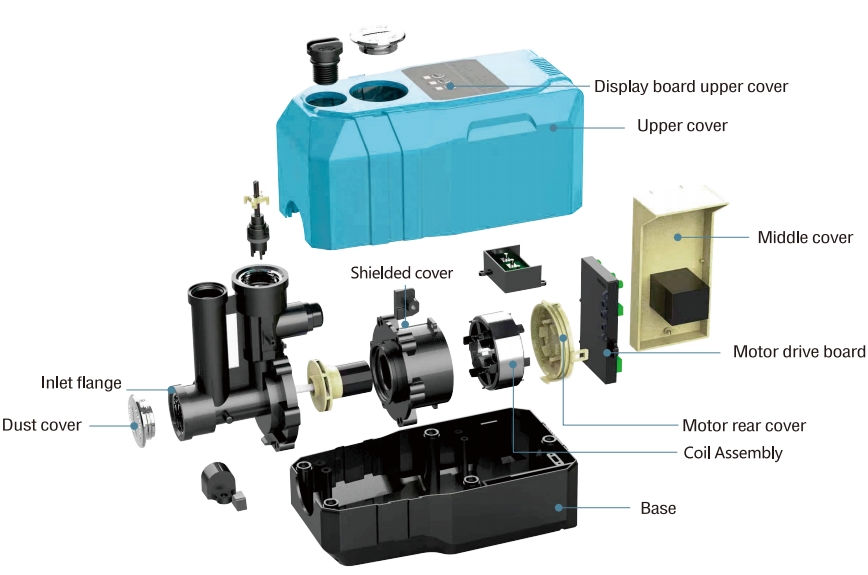

Components |
Construction |
|
Pump body |
Engineering plastic |
|
base&upper cover |
ABS plastic |
|
Shield cover |
PPS |
|
Impeller |
PPO |
|
Permanent magnet |
Ferrite |
|
Motor shaft |
99 Ceramics |

|

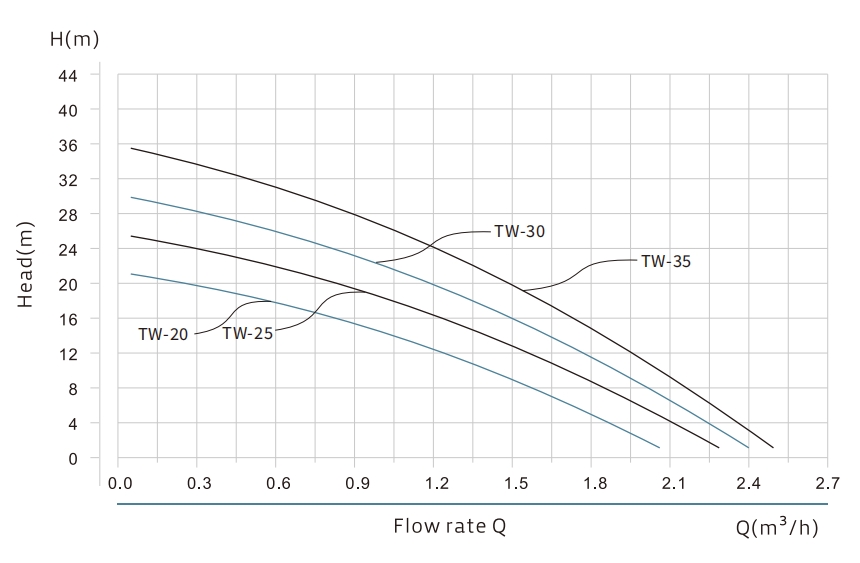

Model |
Voltage |
Power |
Power |
Max.flow |
Max.flow |
Max.head |
Max.suction |
Inlet & Outlet (inch) |
N.W. |
G.W. |
Size(L×W×H) |
|
TW-20 |
DC-24 |
84 |
0.1 |
2.0 |
33 |
20 |
9 |
1”x 1” |
1.8 |
2.1 |
255*138*193 |
|
TW-25 |
DC-30 |
105 |
0.1 |
2.2 |
37 |
25 |
9 |
1”x 1” |
1.8 |
2.1 |
255*138*193 |
|
TW-30 |
DC-36 |
126 |
0.2 |
2.4 |
40 |
30 |
9 |
1”x 1” |
1.8 |
2.1 |
255*138*193 |
|
TW-35 |
DC-40 |
160 |
0.2 |
2.5 |
42 |
35 |
9 |
1”x 1” |
1.8 |
2.1 |
255*138*193 |
