SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom
  • SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom
  • SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom
  • SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom
Permanent Magnet Booster Pump

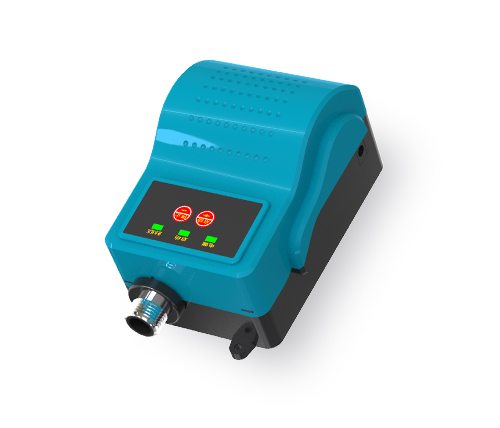

SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom

Safe Voltage : DC 24V

Protection : IP65

Super Quiet ( 20-30dB )

Dual Control

Food Grade Materials (No Rust water)

Energy saving

30,000 hours of long life

Get A Quote
Download
×
Get password
submit

Pump Description :

The SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom is composed of flow switch,pressure sensor and manual button. lt can be started when the water pressure is low or the water flow is very small. At the same time, it has the function of water shortage protection. The circuit board adopts the technology of silica gel coating and damp-proof,which is very safe to use in humid environments.DC-24V low voltage is safe and reliable,and the power supply has leakage protection function,which makes users more secure.

Main Features :

Safety First: Operates at a DC-24V output voltage, ensuring it's a human-safe voltage with no risk of electric shock.

Longevity: Boasts an impressive service life of 30,000 hours, making it a long-term investment for your water system.

Silent Operation: With a noise level of just 20-30dB, thanks to its permanent magnet motor and water cooling structure, it operates quietly without the need for a cooling fan.

Corrosion-Free: Constructed with food-grade plastic for all fluid parts, ensuring no rust and safe water supply.

Dual Control System: Equipped with a pressure and flow switch control system, supporting stepless pressure regulation for pumps with a 0-100m head.

Multiple Protections: Offers water shortage protection, frequent start & stop protection, and overcurrent & under voltage protection to safeguard the pump from damage.

Easy Maintenance: High pass rate of standard parts and high production efficiency of assembly parts allow for quick and easy maintenance with just a cross screwdriver.

Waterproof: It can be used directly in the bathroom, and the whole machine is waterproof.


Motor :

Electric Pump Speed: 12,000 revolutions per minute (RPM)

Insulation: Class H

Protection: IP65

Duty Cycle: S1

Max Suction: +8m

Input Voltage: Single phase 100-140V, 50/60Hz or 160-240V, 50/60Hz

Application :

Especially use for bathroom.

Ideal for well water lifting and water tower water filling.

Perfect for living water supply and garden irrigation.

Effective for pipeline pressure boosting and supporting equipment such as solar energy water supply systems and water heaters.

Designed for transferring clean water or non-corrosive liquids without solid particles and fibers.

Operating conditions :

The temperature of the pumping liquid should not exceed 0-100°C.

The ambient temperature should not exceed 4-55°C.

Product Explosion Chart :



Components

Construction

Power supply

90-260V power adapter converts 24V output

Pump body

                                 Engineering plastic

Pump housing

                                    ABS plastics

Pump support

Shielding sleeve

impeller and rotor

PPO plastics and ferrites

Rotor shaft

99 Ceramics

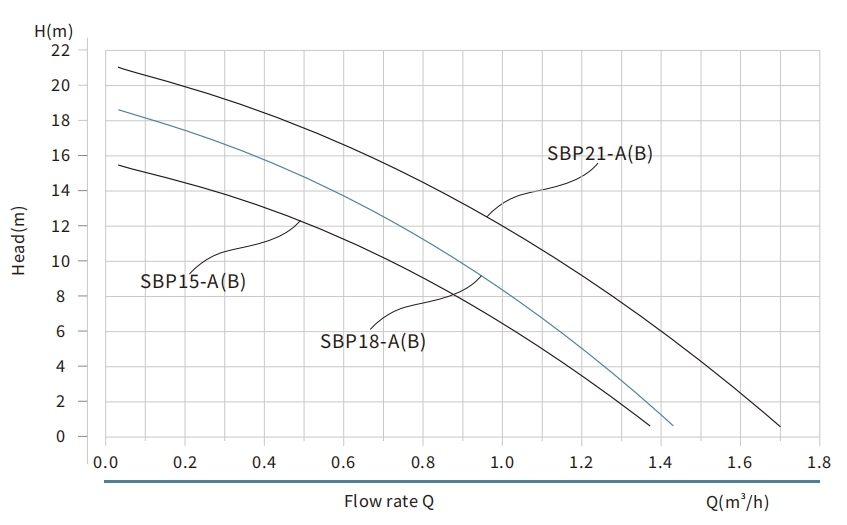

Performance Chart:

Technical Data :

Model

Power
W)

Power
(HP)

Voltage
V

Max.flow
L/min

Max.head
(m)

PIPE
Inch

Meas.
(mm)

N. W.

( kg)

G. W.

(kg)

SBP15-A

70

0.1

DC-24

23

15

1/2"×1/2"

178*160*95

0.67

0.7

SBP18-A

78

0.1

DC-24

23

18

1/2"×1/2"

178*160*95

0.67

0.7

SBP21-A

84

0.1

DC-24

30

21

3/4"×3/4"

178*160*95

0.67

0.7

SBP15-B

70

0.1

DC-24

23

15

1/2"×1/2"

178*160*95

0.68

0.71

SBP18-B

78

0.1

DC-24

23

18

1/2"×1/2"

178*160*95

0.68

0.71

SBP21-B

84

0.1

DC-24

30

21

3/4"×3/4"

178*160*95

0.68

0.71
