4SDM12 4" Copper Core Motor Mass Flow Borehole Submersible Pump Suppliers

  • Taizhou Haipai Import & Export Co., Ltd.
  • 4SDM12 4' Copper Core Motor Mass Flow Borehole Submersible Pump
Deep Well Pump

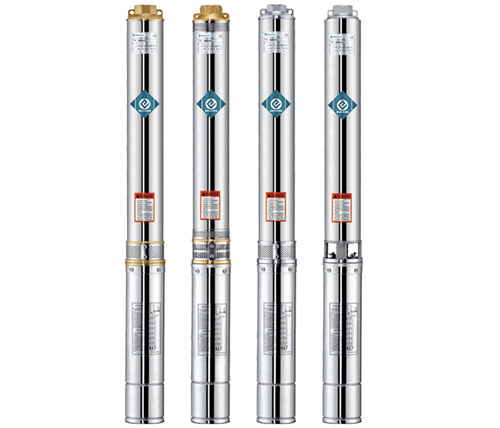

4SDM12 4" Copper Core Motor Mass Flow Borehole Submersible Pump

Minimum well diameter : 4"
Rated  capacity  : 12m³/h
Discharge : Cast-Cu or iron or 304 SS
Copper Core Motor
Mass Flow
Borehole Submersible Pump

Get A Quote
Download
×
Get password
submit

Description :

Our professional-grade deep well pump is designed to deliver exceptional performance and reliability . Crafted with precision and expertise, this deep well pump is engineered to withstand the most demanding conditions. .Invest in the reliability and efficiency of our deep well pump, and experience the peace of mind that comes with owning a top-of-the-line product. Order yours today and enjoy the benefits of a professional-grade pump that is built to last.



Key Features :

1、This high-quality pump is equipped with a 4sdm12 Copper Core Motor, ensuring efficient and consistent mass flow for all your water pumping needs
2、Our deep well pump is proudly Made in China, where it has undergone rigorous quality control measures to meet the highest industry standards. With its superior craftsmanship and cutting-edge technology, you can trust that this pump will deliver exceptional results every time.
3、Whether you need to extract water from a deep well, borehole, or underground reservoir, our deep well pump is designed to provide optimal performance. Its powerful motor ensures high pumping capacity, allowing you to efficiently meet your water supply requirements.
4、Its robust construction guarantees durability and longevity, making it an ideal choice for both residential and commercial applications
5、2 years warranty.
6、Maximum fluid temperature up to +35℃
7、Maximum sand content : 0.25%
8、Minimum well diameter : 4"



Motor and Pump:

1. Reversible electric motor

2. Single-phase: 220V-240V /50Hz or Three-phase: 380-415V/50Hz power supply

3. Equipped with a starting control box or digital automatic control box for precision operation

4. Pumps are designed with casing stress considerations to ensure optimal performance

5. Compliant with NEMA dimensional standards for industry standards compliance

6. Curve tolerances adhere to ISO 9906 guidelines for precise measurement and control.



Options on request:

Special mechanical seal
Single phase motor with built-in capacitor

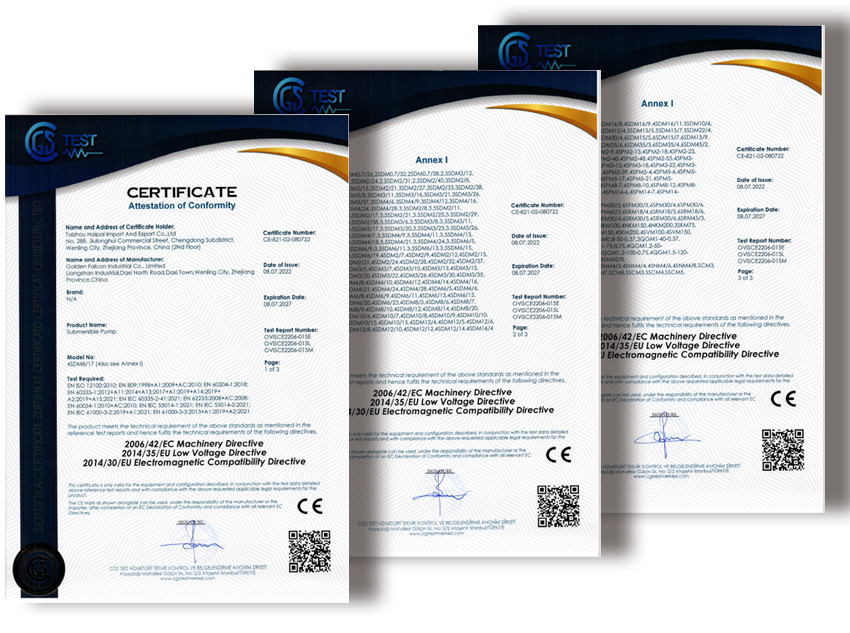

CE Certificate :


Product Line :

Components

Material

Pump external casing

AISI 304 SS

Delivery casing

①Cast-Cu ASTM C85500②AISI 304 SS

Suction lantern

①Cast-Cu ASTM C85500②AISI 304 SS

Diffuser

Plastic.PC

Impeller

Plastic.POM

Shaft

AISI 304 SS

Shaft coupling

AISI 304 SS

Wear ring

AISI 304 SS

Motor external casing

AISI 304 SS

Top chock

①Cast-Cu ASTM C85500②AISI 420 SS

③Cast-iron ASTM NO.30

Bottom support

AISI 304 SS

Mechanical seal

Special seal for deep well(Graphite-Ceramic/TC)

Shaft

AISI 304 SS-ASTM 5140

Seal lubricant oil

Oil for food machinery and pharmaceutic use.

Performance Curves ( 50Hz) :

Model

Power

Deliver

1~220-240V

3~380-415V

KW

HP

Q(m³/h)

0

1.8

3.6

5.4

7.2

9.0

10.8

12.6

14.4

16.2

Q(l/min)

0

30

60

90

120

150

180

210

240

270

4SDM12/4

4SD12/4

0.75

1

H(m)

27

26

25

23

21

19

17

15

12

7

4SDM12/5

4SD12/5

0.92

1.25

34

33

31

28

27

24

22

19

15

9

4SDM12/6

4SD12/6

1.1

1.5

41

39

37

34

32

29

26

23

18

11

4SDM12/7

4SD12/7

1.3

1.75

47

46

43

39

37

34

31

26

21

12

4SDM12/8

4SD12/8

1.5

2

54

52

49

45

43

39

35

30

24

14

4SDM12/10

4SD12/10

1.8

2.5

68

65

61

56

53

49

44

38

30

18

4SDM12/12

4SD12/12

2.2

3

81

78

74

68

64

58

52

45

36

21

4SDM12/14

4SD12/14

2.6

3.5

95

91

86

79

75

68

61

53

42

25

4SDM12/16

4SD12/16

3

4

108

104

98

90

85

78

70

60

48

28

-

4SD12/18

3.7

5

122

117

110

101

96

88

79

68

8

32

-

4SD12/21

4

5.5

142

137

129

118

112

102

92

79

63

37

-

4SD12/26

5.5

7.5

176

169

159

146

139

127

114

98

78

46

-

4SD12/30

7.5

10

203

195

184

169

160

146

131

113

90

53
