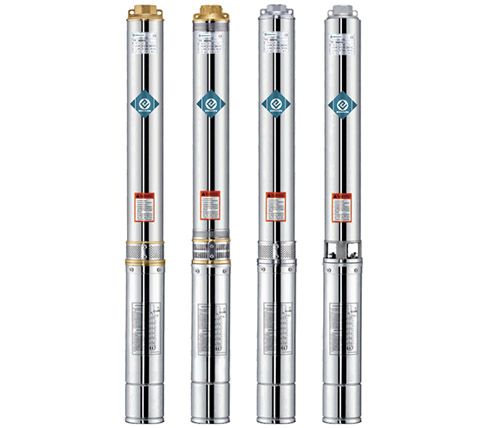

4SDM6 4" Energy Saving Well-adapted Borehole Submersible Pump for Construction of Drainage

Minimum well diameter : 4"
Rated  capacity  : 6m³/h
Outlet : Cast-Cu or iron or 304 SS
Single-phase or three-phase
Energy Saving
Well-adapted
for the Construction of Drainage
Get A Quote
Download
×
Get password
submit

Description :

The 4SDM6 Energy Saving Well-adapted Borehole Submersible Pump is a powerful and efficient water pumping solution designed specifically for construction drainage applications. This pump is capable of handling large volumes of water and is well-suited for draining water from construction sites.With its energy-saving design, adaptability to various drainage scenarios, and durable construction, this pump provides reliable and efficient water pumping for construction projects.

Key Points :

1、The energy-saving design of the 4SDM6 pump ensures efficient operation, reducing power consumption and minimizing energy costs. This is particularly important for construction projects where continuous drainage is required over an extended period.
2、The well-adapted design of the pump allows it to effectively handle various types of drainage scenarios commonly encountered in construction sites. Whether it's removing water from excavations, dewatering foundation pits, or draining flooded areas, this pump is designed to meet the demands of construction drainage.
3、The 4SDM6 pump is built to withstand the challenging conditions of construction sites. Its durable construction and robust design ensure reliable performance even in harsh environments.
4、With its submersible design, the pump can be fully submerged in water, maximizing efficiency and minimizing noise. This also eliminates the need for priming, making the pump easy to install and operate.
5、2 years warranty.
6、Maximum fluid temperature up to +35℃
7、Maximum sand content : 0.25%
8、Minimum well diameter : 4"

Motor and Pump:

1. Rewindable electric motor

2. Single-phase: 220-240V/50Hz or Three-phase: 380-415V/50Hz

3. Equipped with a starting control box or a digital automatic control box

4. Pumps are designed with casings under stress

5. Complying with NEMA dimensional standards

6. Curve tolerance meets ISO 9903 requirements.



Options on request:

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor



CE Certificate :


Product Line :

Components

Material

Pump external casing

AISI 304 SS

Delivery casing

①Cast-Cu ASTM C85500②AISI 304 SS

Suction lantern

①Cast-Cu ASTM C85500②AISI 304 SS

Diffuser

Plastic.PC

Impeller

Plastic.POM

Shaft

AISI 304 SS

Shaft coupling

AISI 304 SS

Wear ring

AISI 304 SS

Motor external casing

AISI 304 SS

Top chock

①Cast-Cu ASTM C85500②AISI 420 SS

③Cast-iron ASTM NO.30

Bottom support

AISI 304 SS

Mechanical seal

Special seal for deep well(Graphite-Ceramic/TC)

Shaft

AISI 304 SS-ASTM 5140

Seal lubricant oil

Oil for food machinery and pharmaceutic use.

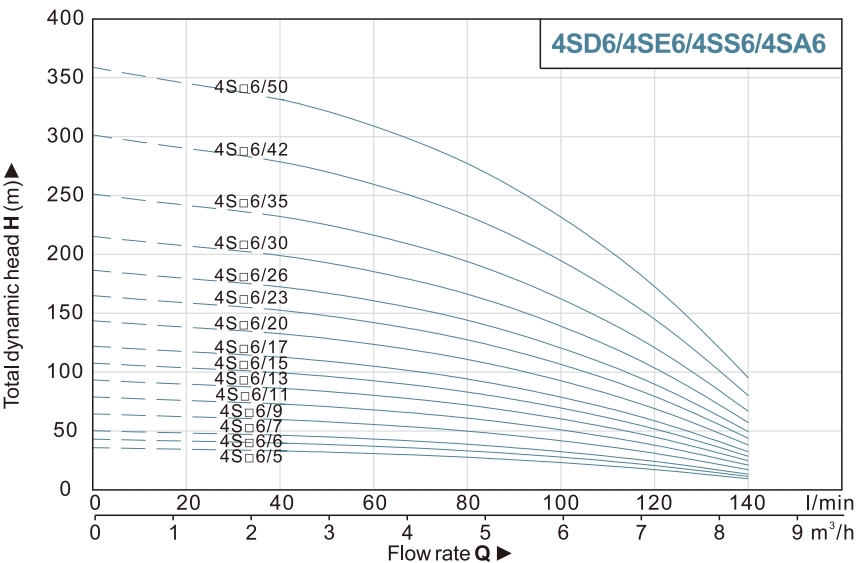

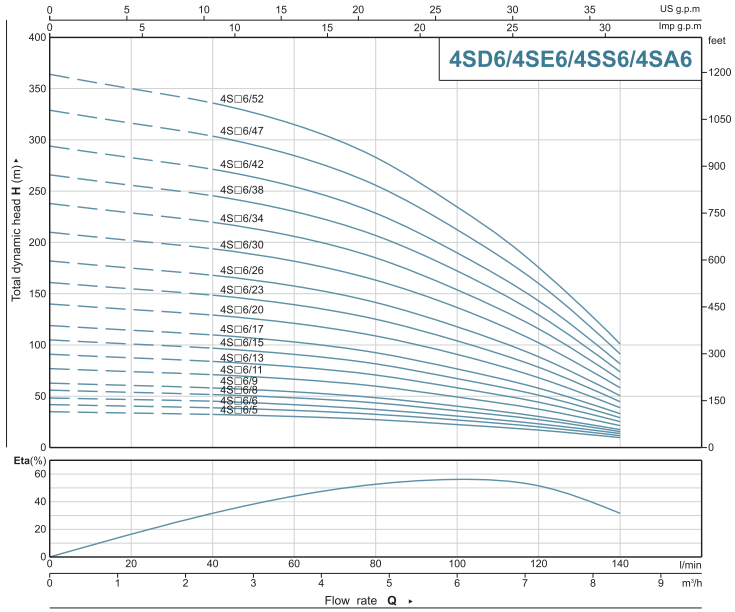

Performance Curves (50Hz) :

Technical Data  ( 50Hz ) :

Model

Power

Deliver

1~220V/240V

3~380V/415V

KW

HP

Q(m³/h)

0

1.2

2.4

3.6

4.8

6.0

7.2

8.4

Q(l/min)

0

20

40

60

80

100

120

140

4SDM6/5

4SD6/5

0.37

0.5

H(m)

36

35

33

31

28

23

17

10

4SDM6/6

4SD6/6

0.55

0.75

43

41

40

37

33

28

21

11

4SDM6/7

4SD6/7

0.75

1

50

48

46

43

39

32

24

13

4SDM6/9

4SD6/9

0.92

1.25

65

62

60

56

50

42

31

17

4SDM6/11

4SD6/11

1.1

1.5

79

76

73

68

61

51

38

21

4SDM6/13

4SD6/13

1.3

1.75

93

90

86

80

72

60

45

25

4SDM6/15

4SD6/15

1.5

2

108

104

100

93

83

70

52

29

4SDM6/17

4SD6/17

1.8

2.5

122

117

113

105

94

79

59

32

4SDM6/20

4SD6/20

2.2

3

144

138

133

124

111

93

69

38

4SDM6/23

4SD6/23

2.6

3.5

165

159

153

142

128

107

79

44

4SDM6/26

4SD6/26

3

4

187

180

173

161

144

121

90

50

 -

4SD6/30

3.7

5

215

207

199

185

166

139

104

57

 -

4SD6/35

4

5.5

251

242

232

216

194

162

121

67

 -

4SD6/42

5.5

7.5

302

290

279

260

233

195

145

80

 -

4SD6/50

7.5

10

359

345

332

309

277

232

173

95
