6SDM25 6" High-lift Overload Protection Insulated Wire Borehole Submersible Pump

Description :

The 6SDM25 6" High-lift Overload Protection Insulated Wire Borehole Submersible Pump is a powerful and reliable water pumping solution designed for high-lift applications in boreholes. This pump is equipped with overload protection and insulated wire features, ensuring safety and optimal performance.

Operating Conditions :

1、Overload Protection : The overload protection feature of the pump is designed to prevent motor burnout and damage caused by excessive load or electrical issues. It automatically shuts off the pump when an overload is detected, ensuring the longevity and reliability of the pump.
2、The insulated wire feature adds an extra layer of safety to the pump. It helps to prevent electrical issues and ensures that the pump operates smoothly and efficiently.
3、The 6SDM25 pump is specifically designed for borehole applications, allowing it to be fully submerged in water. This submersible design maximizes efficiency and minimizes noise, making it suitable for various settings including residential, commercial, or agricultural.
4、The high-lift capability of the 6SDM25 pump allows it to efficiently lift water from deep wells or boreholes to higher elevations. This makes it suitable for applications where water needs to be transported over long distances or to elevated locations
5、Maximum fluid temperature up to +50℃
6、Maximum sand content : 0.25%
7、Minimum well diameter : 6"

Motor and Pump :

1、Rewindable motor
2、Single-phase : 220-240V/50Hz or Three-phase : 380 - 415V/50Hz
3、Equipped with start control box or digital auto-control box
4、Curve tolerance according to ISO 9906

Options on request :

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

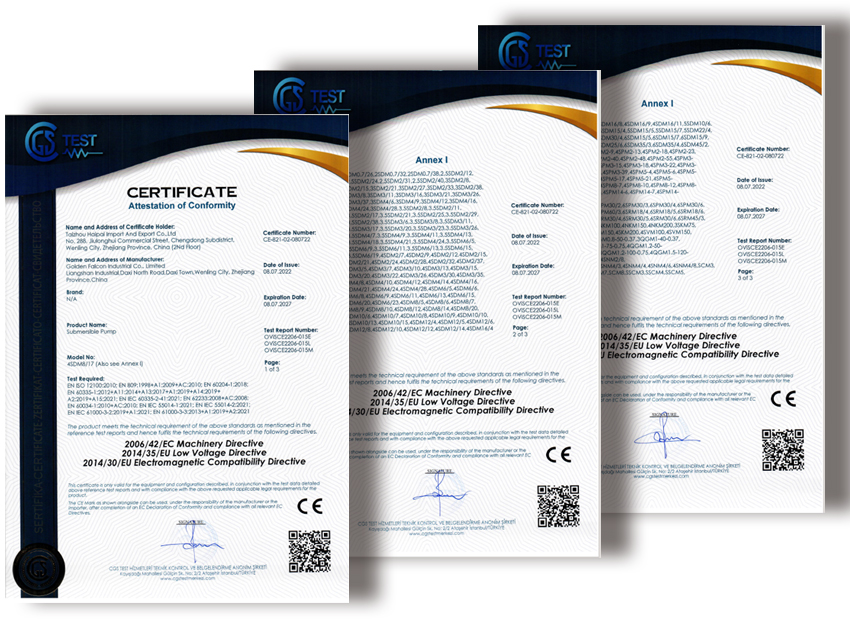

CE Certificate :

Product Line :

Performance Curves ( 50Hz ) :

Performance Data ( 50Hz ) :
