4SDM8 4" Stainless Steel Pump Body Easy Installation Industrial Water Cycle Borehole Submersible Pump with After-sale Protection

Minimum well diameter : 4"
Rated capacity  : 8m³/h
Discharge : Cast-Cu or iron or 304 SS
Stainless Steel Pump Body
Easy Installation
Industrial Water Cycle
Borehole Submersible Pump
with After-sale Protection
Get A Quote
Download
×
Get password
submit

Description :

   Our Stainless Steel Pump Body Easy Installation Industrial Water Cycle Borehole Submersible Pump with After-sale Protection professional-grade deep well pump, designed to meet your industrial water needs with utmost efficiency and reliability. Crafted with a durable stainless steel pump body, this pump is built to withstand even the most demanding conditions, ensuring long-lasting performance.

Key Features :

1、One of the key highlights of our deep well pump is its easy installation process. With user-friendly features and clear instructions, you can have the pump up and running in no time, saving you valuable time and effort.
2、Rest assured, our deep well pump is engineered to deliver exceptional water flow, making it suitable for a wide range of industrial applications. Whether it's for irrigation, livestock watering, or maintaining water supply in commercial or residential settings, this pump is designed to meet your specific requirements.
3、We understand the importance of after-sale protection, and that's why our deep well pump comes with comprehensive after-sale support. Our dedicated team of experts is always ready to assist you with any queries or concerns you may have, ensuring a seamless experience from purchase to post-installation.
4、This deep well pump has no special requirements for well pipe and water pipe, and is suitable for steel tube well, ash tube well and earth well and other Wells
5、2 years warranty
6、Maximum fluid temperature up to +35℃
7、Maximum sand content : 0.25%
8、Minimum well diameter : 4"



Motor and Pump:

1. Rewindable electric motor

2. Single-phase voltage options: 220-240V/50Hz or Three-phase voltage options: 380-415V/50Hz

3. Equipped with a start control box or a digital auto-control box

4. Pumps are designed with casing stress considerations

5. Manufactured in accordance with NEMA dimensional standards

6. Curve tolerance adheres to ISO 9906 guidelines.



Option on request:

Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor



CE Certificate :



Product Line :

Components

Material

Pump external casing

AISI 304 SS

Delivery casing

①Cast-Cu ASTM C85500②AISI 304 SS

Suction lantern

①Cast-Cu ASTM C85500②AISI 304 SS

Diffuser

Plastic.PC

Impeller

Plastic.POM

Shaft

AISI 304 SS

Shaft coupling

AISI 304 SS

Wear ring

AISI 304 SS

Motor external casing

AISI 304 SS

Top chock

①Cast-Cu ASTM C85500②AISI 420 SS

③Cast-iron ASTM NO.30

Bottom support

AISI 304 SS

Mechanical seal

Special seal for deep well(Graphite-Ceramic/TC)

Shaft

AISI 304 SS-ASTM 5140

Seal lubricant oil

Oil for food machinery and pharmaceutic use.

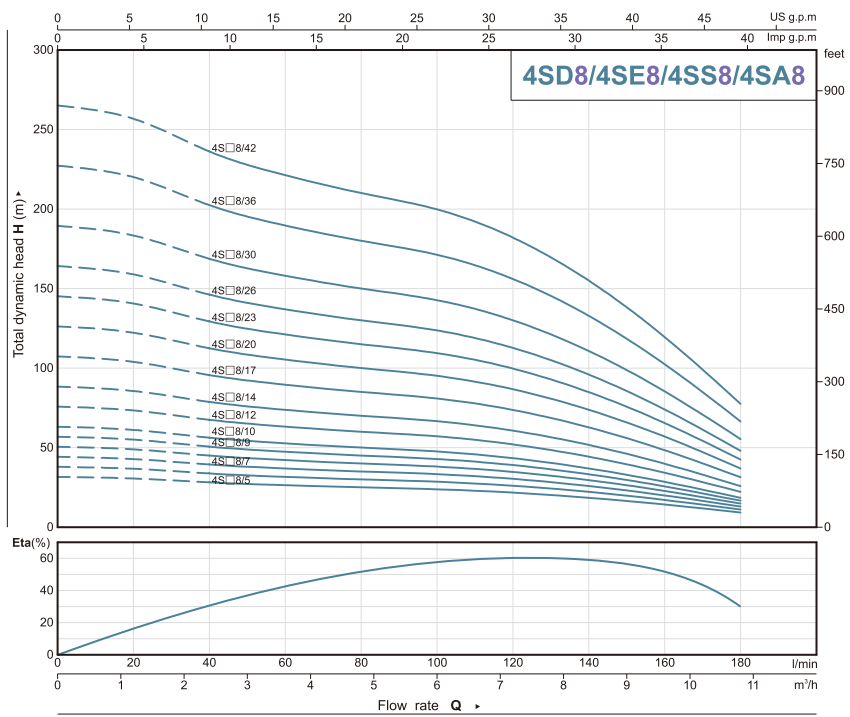

Performance Curves ( 50Hz ) :

Performance Data ( 50Hz ) :


Model

Power

Deliver

1~220V/240V




3~380V/415V




KW




HP




Q(m³/h)

0

1.2

2.4

3.6

4.8

6.0

7.2

8.4

9.6

10.8

Q(l/min)

0

20

40

60

80

100

120

140

160

180

4SDM8/5

4SD8/5

0.55

0.75

H(m)

















































32

31

28

26

25

24

22

18

14

9

4SDM8/6

4SD8/6

0.75

1

38

37

33

32

30

28

26

22

17

11

4SDM8/7

4SD8/7

0.75

1

44

43

39

37

35

33

30

26

20

13

4SDM8/8

4SD8/8

0.92

1.25

50

49

45

42

40

38

35

30

23

15

4SDM8/9

4SD8/9

1.1

1.5

57

55

51

47

45

43

39

33

26

17

4SDM8/10

4SD8/10

1.3

1.75

63

61

56

53

50

48

43

37

28

18

4SDM8/12

4SD8/12

1.5

2

76

73

67

63

60

57

52

44

34

22

4SDM8/14

4SD8/14

1.8

2.5

88

86

79

74

70

67

61

52

40

26

4SDM8/17

4SD8/17

2.2

3

107

104

96

90

85

81

74

63

48

31

4SDM8/20

4SD8/20

2.6

3.5

126

122

112

105

100

95

87

74

57

37

 -

4SD8/23

3

4

145

141

129

121

115

109

100

85

6

42

 -

4SD8/26

3.7

5

164

159

146

137

130

124

113

96

74

48

 -

4SD8/29

4

5.5

183

177

163

153

145

138

126

107

82

53

 -

4SD8/33

5

7

208

202

186

174

165

157

143

122

94

61

 -

4SD8/37

5.5

7.5

234

226

208

195

185

176

160

136

105

68

 -

4SD8/41

7

10

259

251

231

216

205

195

178

151

117

76

 -

4SD8/45

7.5

10

284

275

253

237

225

214

195

166

128

83
