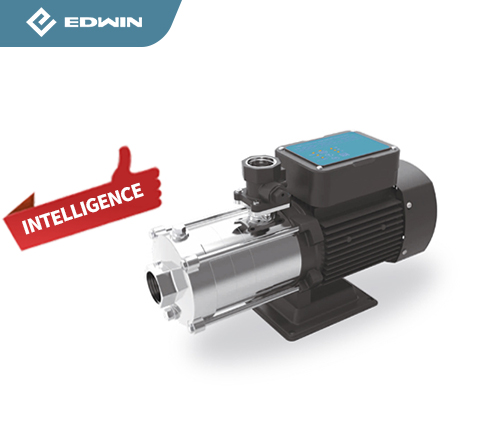

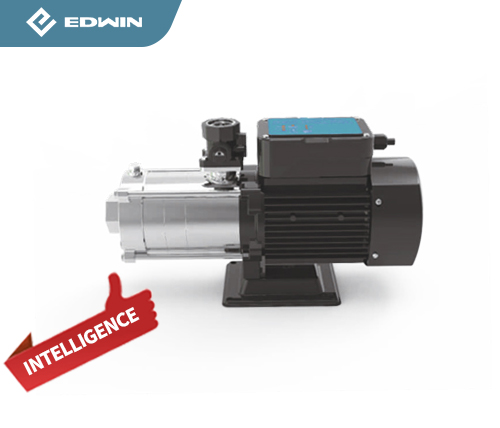

ITSRM Series 10Bar IP55 Self-adaptive Energy-saving Multi-stage Centrifugal Pump for Cool System

Power : 0.25KW/0.3HP-1.1KW/1.5HP
Max. Head ( m ) : 19-56
Max. Flow ( m³/h ) : 4-7
Self-adaptive
Energy-saving
Multi-stage

Get A Quote
Download
×
Get password
submit

Description :

The ITSRM Series 10Bar IP55 Self-adaptive Energy-saving Multi-stage Centrifugal Pump is specifically designed for cooling systems. It is capable of handling a maximum pressure of 10 bar, making it suitable for applications that require high-pressure pumping.
This pump features an IP55 rating, which means it is protected against dust and water ingress, making it suitable for both indoor and outdoor installations. The IP55 rating ensures the pump's durability and reliability even in challenging environments.
The self-adaptive feature of this pump allows it to automatically adjust its performance based on the cooling system's requirements. This ensures optimal energy efficiency and reduces operating costs by matching the pump's speed and power consumption to the demand.
The multi-stage design of the pump enables it to provide high pressure and flow rates, making it ideal for cooling systems that require efficient and reliable water circulation. It is commonly used in HVAC systems, industrial cooling towers, and other cooling applications.
Application for pressurization for high-rise construction water supply Air-conditioner or cooling mechanism
Overall, the ITSRM Series 10Bar IP55 Self-adaptive Energy-saving Multi-stage Centrifugal Pump is a reliable and energy-efficient solution for cooling systems, offering high performance and adaptability to varying demands.

Operation conditions :

Medium temperature :
Lower temperature : -15°C to +70°C
Higher temperature : -15°C to +110°C
Maximum environmental temperature : +70°C
Maximum operating pressure : 10 bar
Insulation : F
Protection : IP55

Key Features :

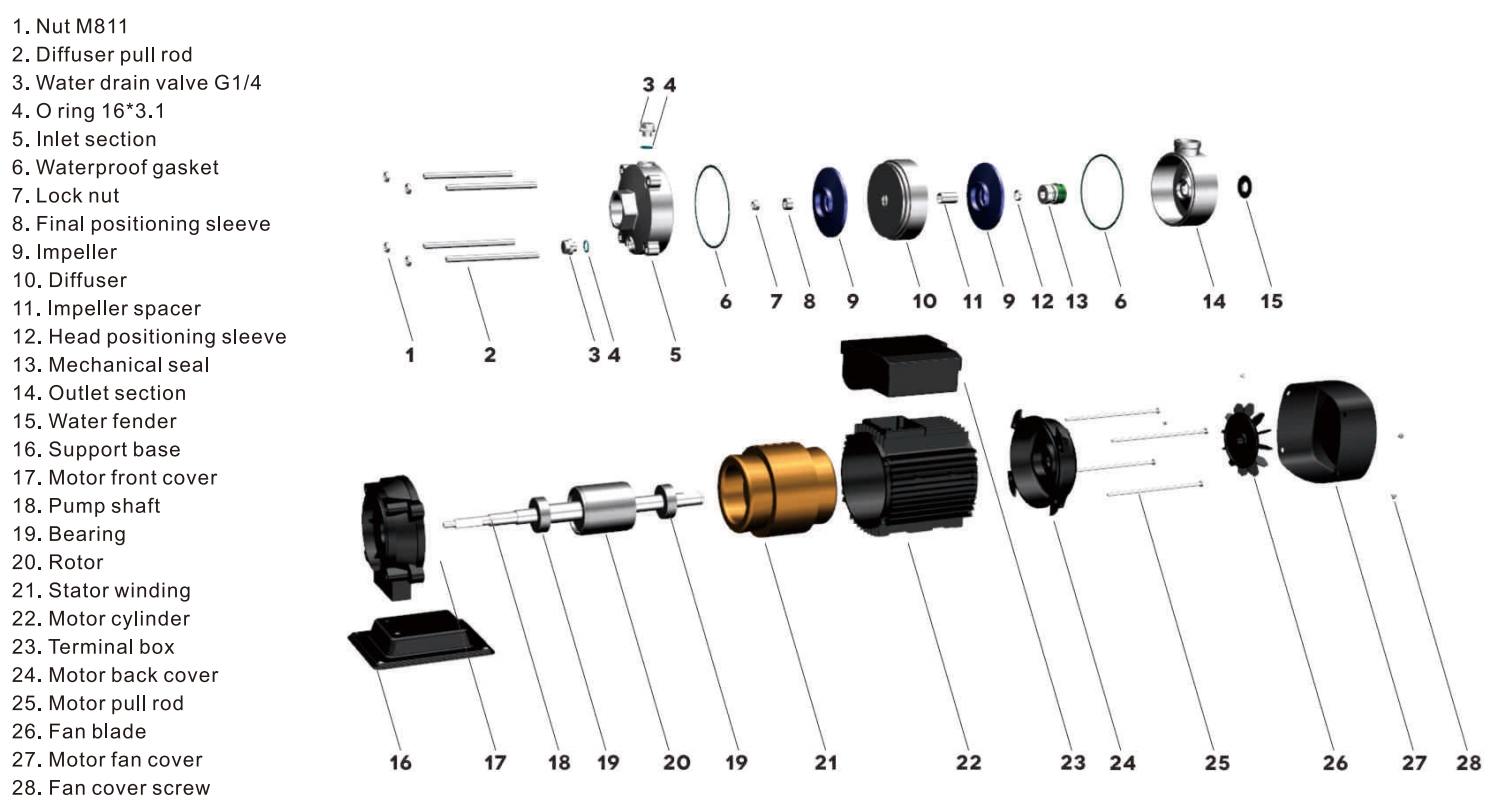

Product Explosion Chart :

Components

Construction

Inlet and outlet

Stainless steel

Connect pipe

Stainless steel

Pressing plate

Stainless steel

Impeller

Stainless steel

Shaft

Stainless steel

Plug

Stainless steel

Inlet diffuser

Stainless steel

Mechanical seal

Stainless steel

Motor end cover

Alum alloy / Cast iron

Base

Steel plate / Plastic

Connector

Stainless steel

Diffuser

Stainless steel

Supporting diffuser

Stainless steel

Fluid director

Stainless steel

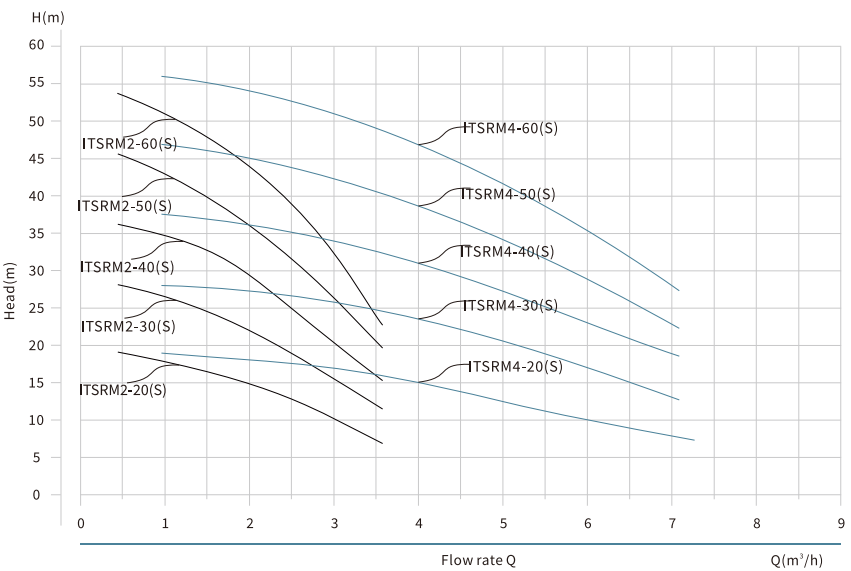

Performance Curves :

Technical Data :

Model

Power

Power

Max.flow

Max.head

Max.suction

Inlet & outlet

Meas.

kw

hp

m³/h

m

m

inch

mm

lTSRM2-20(S)

0.25

0.3

4

19

2

1”x1”

338*138*215

ITSRM2-30(S)

0.37

0.5

4

28

2

1”x1”

356*138*215

ITSRM2-40(S)

0.55

0.7

4

36

2

1”x1”

374*138*215

ITSRM2-50(S)

0.55

0.7

4

46

2

1”x1”

392*138*215

ITSRM2-60(S)

0.75

1.0

4

54

2

1.25”x1”

410*138*215

ITSRM4-20(S)

0.37

0.5

7

19

2

1.25”x1”

356*138*215

ITSRM4-30(S)

0.55

0.7

7

28

2

1.25”x1”

383*138*215

ITSRM4-40(S)

0.75

1.0

7

38

2

1.25”x1”

410*138*215

ITSRM4-50(S)

1.1

1.5

7

47

2

1.25”x1”

480*155*220

ITSRM4-60(S)

1.1

1.5

7

56

2

1.25”x1”

507*155*220
