Home / Products / Surface Pump / Self-priming Peripheral Pump / EP Series Powerful Low Noise Self-suction Pump

Wholesale EP Series Powerful Low Noise Self-suction Pump

  • Taizhou Haipai Import & Export Co., Ltd.
  • EP Series Powerful Low Noise Self-suction Pump
Self-priming Peripheral Pump

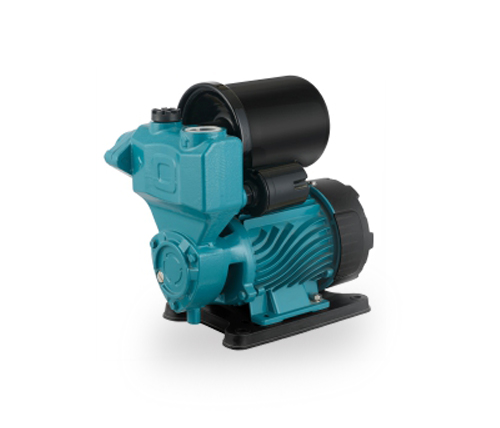

EP Series Powerful Low Noise Self-suction Pump

Cast iron pump body
Rust-free stainless steel
Self-priming
Low noise
thermal protector
Get A Quote
Download
×
Get password
submit
PREV：Compact Automatic Self-priming Peripheral Pumps (ESP-B)NEXT：ITWZB-C Series Corrosion and Rust Resistant Adaptive Intelligent Self-priming Pump

Key Features :

1、Cast iron pump body and support under special antirust treatment
2、Rust-free stainless steel inserts prevent impeller's block when starting after the pump is unused for a long time
3、Self-priming
4、Low noise
5、Built-in thermal protector for single phase motor

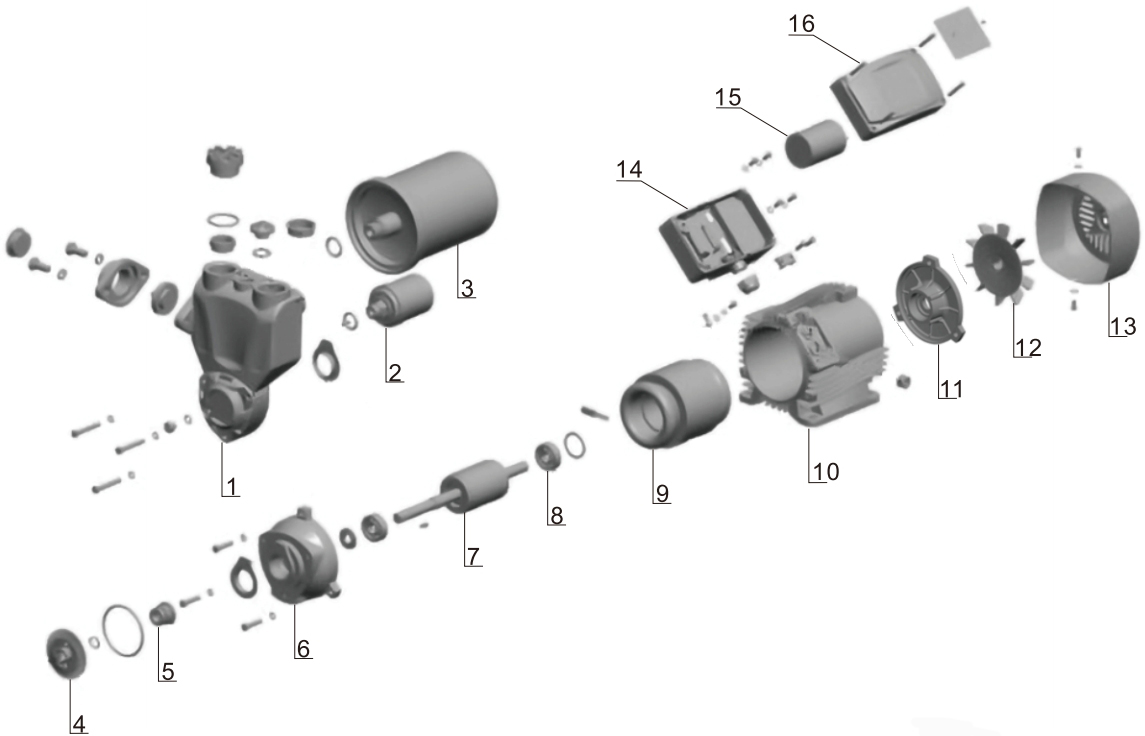

Components :

Materials Table

NO.

Part

Material

1

Pump Body

HT200

2

Pressure Sensor



3

Tank



4

Impeller

Brass

5

Mechanical Seal

Carbon/Ceramic

6

Support

HT200

7

Shaft And Rotor



8

Ball Bearing



9

Stator



10

Motor Case

Aluminum

11

Motor Cover

Cast iron

12

Fan

PP

13

Fan Cover



14

Capacitor Holding Box



15

Capacitor



16

Terminal Cover

Technical Data :


Model Power Inletx Outlet Max. Flow Max. Head Max. Suction
kW HP (L/min) (m) (m)
EP-125 0.37 0.5 1"x1" 35 35 8
EP-125A 0.37 0.5 1"x1" 35 35 8
