Taizhou Haipai Import & Export Co., Ltd.
Home / Products / Surface Pump / Self-priming Peripheral Pump / EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation

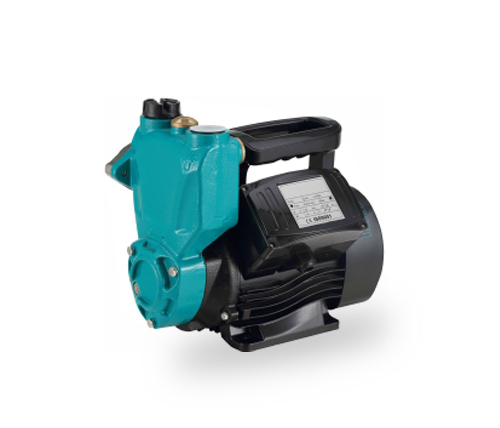

Wholesale EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation

  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation
  • EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation
  • EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation
  • EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation
Self-priming Peripheral Pump

EPS Series Thermal Protector Self-priming Peripheral Pumps for Irrigation

Thermal Protector
Self-priming Peripheral Pumps
pump for Irrigation
Get A Quote
Download
×
Get password
submit

Description :

     Crafted with the latest technology, this self-priming pump boasts a compact and reliable design, making it the ideal choice for those seeking a reliable and easy-to-use solution. Whether you're looking to transfer water for irrigation, filling up a pool, or any other household application, this pump is sure to exceed your expectations.

    With its self-priming capabilities, this pump is able to automatically prime itself, making it an incredibly convenient option for homeowners. Additionally, its user-friendly design ensures that even those with little to no experience with pumps can operate it with ease.



Key Features :

1、Cast iron pump body and support under special antirust treatment
2、Rust-free stainless steel inserts prevent impeller's block when it starts after the pump is unused for a long time
3、Brass impeller and AISI 304 shaft
4、C&U bearing consists of the pump ,and built-in thermal protector for single phase motor
5、1 year warranty

Components :

Materials Table

NO.

Part

Material

1

Pump Body

HT200

2

Pressure Sensor



3

Tank



4

Impeller

Brass

5

Mechanical Seal

Carbon/Ceramic

6

Support

HT200

7

Shaft And Rotor



8

Ball Bearing



9

Stator



10

Motor Case

Aluminum

11

Motor Cover

Cast iron

12

Fan

PP

13

Fan Cover



14

Terminal Board

PC

15

Capacitor



16

Terminal Cover

Technical Data :

Model Power Inlet/Outlet Max. Flow Max. Head Max. Suction
kW HP (L/MIN) (M) (M)
EPS250-A/AZ/T 0.25 0.34 1"X1" 30 30 9
EPS370-A/AZ/T 0.37 0.50 1"x1" 40 35 9
EPS550-A/AZ/T 0.55 0.75 1"x1" 50 40 9
EPS750-A/AZ/T 0.75 0.10 1"x1" 55 45 9
ESP900-A/AZ/T 0.90 1.20 1"x1" 55 50 9
ESP1100-A/AZ/T 1.10 1.50 1.5"x1.5" 100 60 9
ESP1500-A/AZ/T 1.50 2.0 1.5"x1.5" 110 60 9
EPS2200-A/AZ/T 2.20 3.0 1.5"x1.5" 115 65 9
