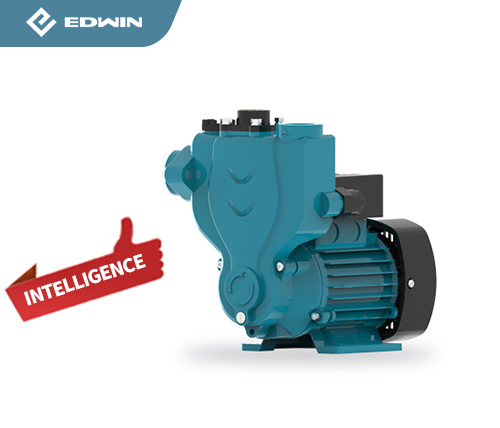

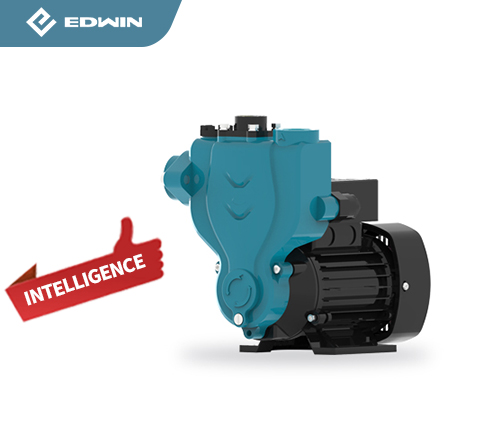

ITWZB-A Series Double Control System All Copper Motor Coil Intelligent Self-Priming Pump

Power : 0.13KW/0.2HP-0.8KW/1HP

Max. Head ( m ) : 22-45

Max. Flow ( m3/h ) : 1.8-3.6

Double control system

All copper motor coil

Get password

Function :

The linear pressure sensor is employed to regulate the initial pressure of the pump rather than conventional mechanical switch. Concurrently, it incorporates an advanced flow control system.
The capabilities of the pump comprise :
1. Automated recognition of pipe pressure;
2. Automatic readjustment of starting pressure;
3. The integrated chip possesses a memory function;
4. Plug-and-play configuration;
5. Intelligent adaptable learning;
6. The operation of water pump is governed by the pressure sensor and flow switch;
7. Water deficit protection mechanism;
8. Initiates the pump automatically when the water returns;
9. Timer functionality ;
10. Temperature protection ;
11. Electrophoresis for rust prevention.

Key Features :

1. Large Flow High Head
2. All-copper motor coil
3. Low noise
4. High efficiency and energy saving
5. Super durability

Motor :

Electrical pump speed : (n=2850rpm)
Insulation : ClassF
Degree of protection : IP44
Continuous service : S1 Class
Thermal protector :
Single-phase : 220V, 50/60Hz. Can be customized as necessary for 110/127/220V, 50/60Hz.

Application :

Suitable for well water pumping, family, canteen,garden irrigation and other clean water pressurization, but also solar energy,water heater,central air conditioning and other equipment supporting pressurization preferred.

Operation conditions :

The temperature of pumping liquid does not exceed 100^oC and the ambient temperature does not exceed 40^oC, and the maximum suction is 8.5m.

Product Explosion Chart :

Components	Construction
Pump body	Cast iron,304stainless steel inserts
Pump support	Cast iron,304stainless steel inserts
Motor housing	Aluminum
impeller	Copper
Mechanical Seal	Silicon carbide
Bearing	6201(128W-400W) 6202(600W-800W)

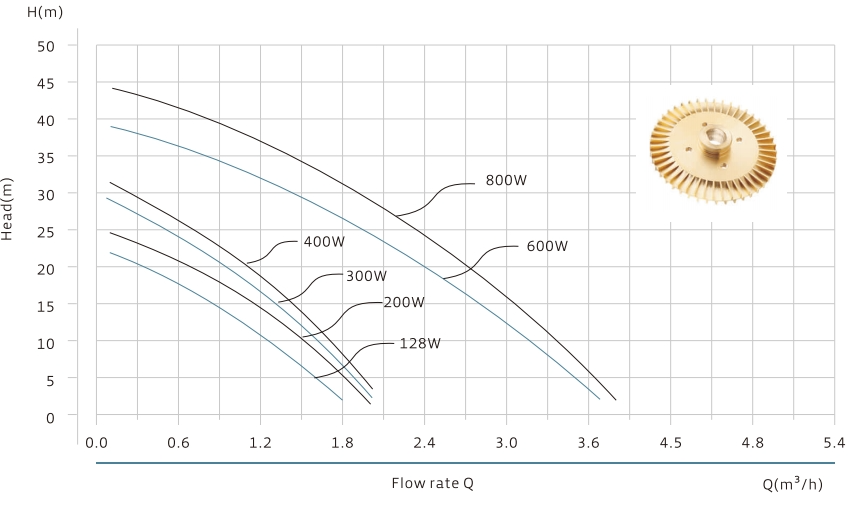

Performance Chart :

Technical Data ：

Model	Power （W)	Power （Hp)	Max.flow （m³/h）	Max.flow （l/min）	Max.head （m）	Max.suct （m）	PIPE （Inch）	Meas. (mm)	Volume (m³)	G.W. （kg）
ITWZB-128A	128	0.2	1.8	30	22	6	1"×1"	260188241	0.012	6.2
ITWZB-200A	200	0.3	2.0	33	25	6	1"×1"	260188241	0.012	6.2
ITWZB-300A	300	0.4	2.2	37	30	8.5	1"×1"	275205272	0.015	7.3
ITWZB-400A	400	0.5	2.2	37	35	8.5	1"×1"	275205272	0.015	8.2
ITWZB-600A	600	0.8	3.3	55	40	8.5	1"×1"	305215285	0.019	10.5
ITWZB-800A	800	1.1	3.6	60	45	8.5	1"×1"	305215285	0.019	11
