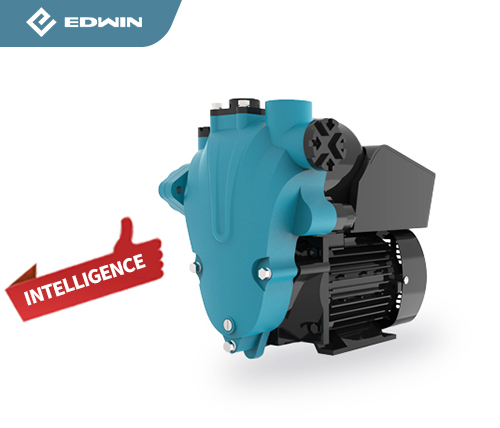

Self-priming Peripheral Pump

ITWZB Series Automatic Multi Protection Double Control System Intelligent Self Primning Pump

Power : 0.128KW/0.2HP-1.5KW/2HP

Max. Head ( m ) : 30-45

Max. Flow ( m3/h ) : 2-3.5

Double control system

Multi protection

Get A Quote

Download

Get password

PREV：ITWZB-A Series Double Control System All Copper Motor Coil Intelligent Self-Priming Pump NEXT：SMT Series Smart Control Panel Double Control System Intelligent Self-priming Pump

Description
Components
Curves
Performance Data

Function :

The linear pressure sensor is employed to regulate the initial pressure of the pump rather than conventional mechanical switch. Concurrently, it incorporates an advanced flow control system.
The capabilities of the pump comprise :
1. Automated recognition of pipe pressure;
2. Automatic readjustment of starting pressure;
3. The integrated chip possess a memory function;
4. Plug-and-play configuration;
5. Intelligent adaptable learning;
6. The operation of water pump is governed by the pressure sensor and flow switch.;
7. Water deficit protection mechanism;
8. Initiates the pump automatically when the water returns;
9. Timer functionality;
10. Temperature protection;
11. Electrophoresis for rust prevention.

Motor :

Electrical pump speed : (n=2850rpm)
Insulation : ClassF
Degree of protection : IP44
Continuous service : S1 Class
Thermal protector :
Single-phase : 220V, 50/60Hz. Can be customized as necessary for 110/127/220V, 50/60Hz.

Application :

THERMALLY SUITABLE for well water pumping, domestic, hotel, canteen, garden irrigation, and other raw water pressurization, as well as solar energy, water heater, central air conditioning and other equipment supporting pressurization.

Operation conditions :

The temperature of pumping liquid does not exceed 100oC and the ambient temperature does not exceed 40oC, and the maximum suction is 8.5m.

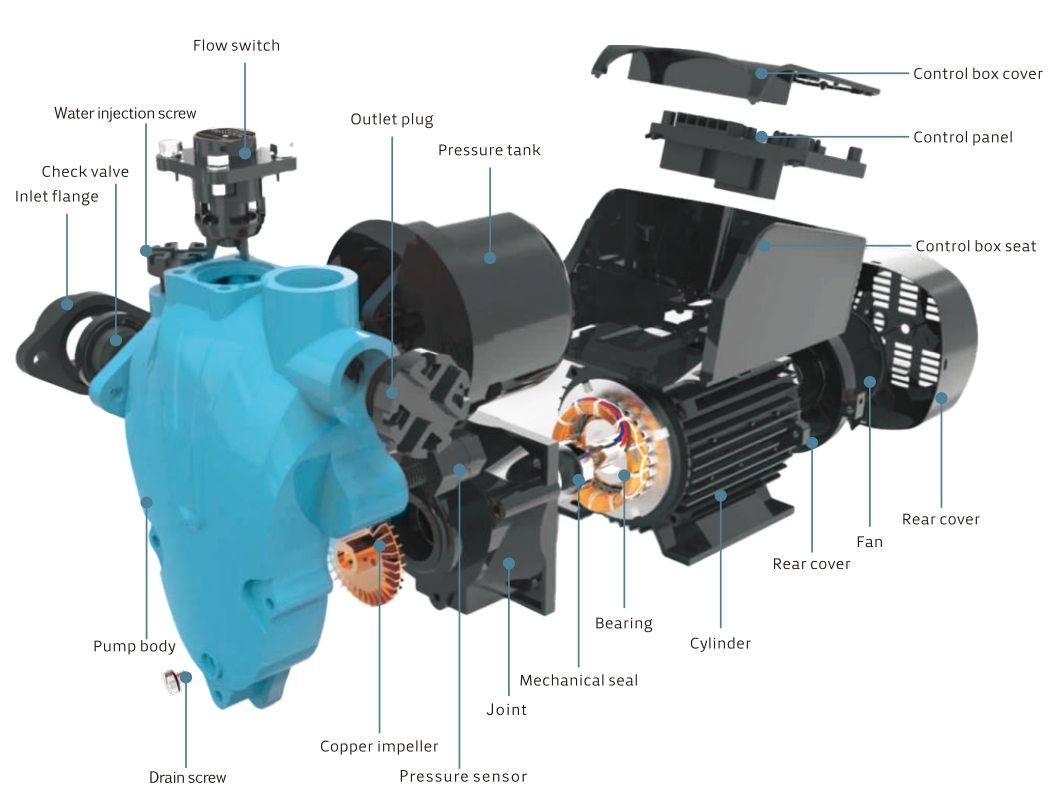

Product Explosion Chart :

Components	Construction
Pump body	Cast iron,304stainless steel inserts
Pump support	Cast iron,304stainless steel inserts
Motor housing	Aluminum
impeller	Copper
Mechanical Seal	Silicon carbide
Bearing	6201(128W-580W) 6202(680W-880W)

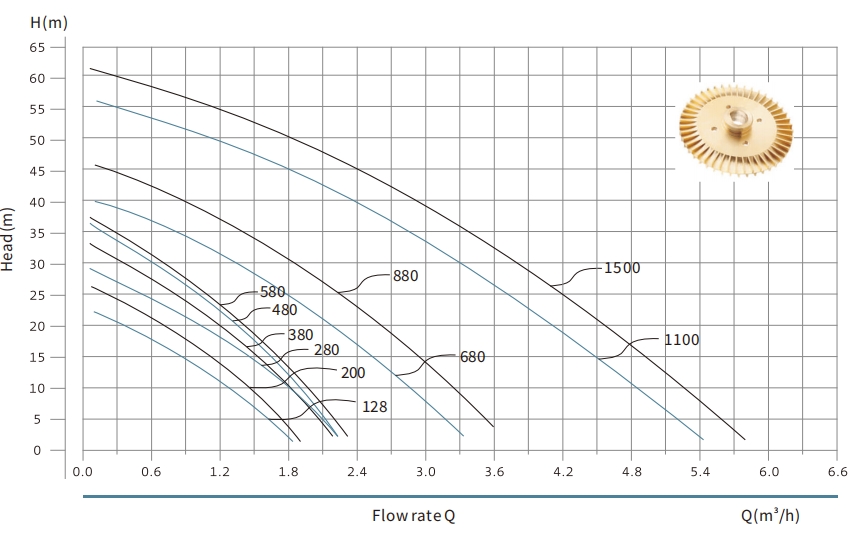

Performance Chart :

Technical Data ：

Model	Power （W)	Power （Hp)	Max.flow （m³/h）	Max.flow （l/min）	Max.head （m）	Max.suct （m）	PIPE （Inch）	Meas. (mm)	Volume (m³)	G.W. （kg）
ITWZB-128T	128	0.2	1.8	30	22	6	1"×1"	283170248	0.012	7.50
ITWZB-200T	200	0.3	1.8	30	25	6	1"×1"	283170248	0.012	7.50
ITWZB-280T	280	0.4	2.0	33	30	8.5	1"×1"	315209280	0.018	10.00
ITWZB-380T	380	0.5	2.0	33	32	8.5	1"×1"	315209280	0.018	10.20
ITWZB-480T	480	0.7	2.0	33	35	8.5	1"×1"	315209280	0.018	10.60
ITWZB-580T	580	0.8	2.2	37	35	8.5	1"×1"	315209280	0.018	11.00
ITWZB-680T	680	0.9	3.4	57	40	8.5	1"×1"	356223310	0.025	15.00
ITWZB-880T	880	1.2	3.6	60	45	8.5	1"×1"	356223310	0.025	15.10
ITWZB-1100T	1100	1.5	5.5	92	55	8.5	1.5"×1.5"	388227338	0.03	22.70
ITWZB-1500T	1500	2.0	5.5	92	60	8.5	1.5"×1.5"	388227338	0.03	22.70
