3ESC 3" DC Brushless Solar Deep Well Pump With Stainless Steel Impeller

3" Compact Size
DC Brushless
Stainless Steel Impeller Type
Stainless Steel for Outlet/Connection/Oil Cylinder
NSK Bearing
MPPT Function
Get A Quote
Download
×
Get password
submit

Pump Description:

Introducing the 3" DC Brushless Solar Pump with Stainless Steel Impeller - a top-of-the-line product that is designed to meet all your pumping needs. Whether it's for deep well, irrigation, or home use, this pump is the perfect solution for you.

This pump is engineered to be highly efficient, ensuring that you get the most out of every drop of water. Its compact design makes it easy to install and use, while its stainless steel impeller ensures durability and reliability.

With this pump, you can be sure that you are getting a product that is built to last. Its advanced technology and high-quality construction make it a top choice for anyone who needs a reliable and efficient pumping solution.

So if you're looking for a pump that can deliver exceptional performance, look no further than the 3" DC Brushless Solar Pump with Stainless Steel Impeller. It's the perfect choice for anyone who wants a powerful, reliable, and easy-to-use pumping solution.

Main Features:

●Permanent magnet DC brushless synchronous motor which is save energy and high efficiency (improved by 15%-20%), so it can also help to reduce the consumption of solar panels

●The whole pump is made by Stainless steel, including the pump casing, shaft, impeller, outlet, oil cylinder, etc.

●By using Japanese brand NSK bearing to make sure the long using life.

●By using alloy mechanical seal to make Longer working life and high reliability.

●The wire winding is made by automatic winding machine using centralized winding technology, to improve the motor efficiency.

●High-precision, strictly controlling the dimension precision and smoothness which is also very important to make a good quality pump.

● Intelligent water shortage and full water protection.

●DC Controller:

   (1) Waterproof grade: IP65.

   (2) Ambient temperature: -15℃ to 60℃.

   (3) MPPT function, the solar power utilization rate is higher.

   (4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.

   (5) LED displays the power, voltage, current, speed etc working condition and error code.

   (6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and user also can change the speed of pump manually.

   (7) Automatically start and stop working.

   (8) Water proof and leak-proof: Double seal effect.

   (9) Soft start: No impulse current, protect the pump motor.

   (10) High voltage/Low voltage/Over-current/High temperature protection.

●2 years warranty.



Components

Matrial

Pump external casing

Stainless Steel

Outlet

Stainless Steel

Connection

Stainless Steel

Oil cylinder

Stainless Steel

Impeller

Stainless Steel

Bearing

NSK

Shaft

Complete SS304

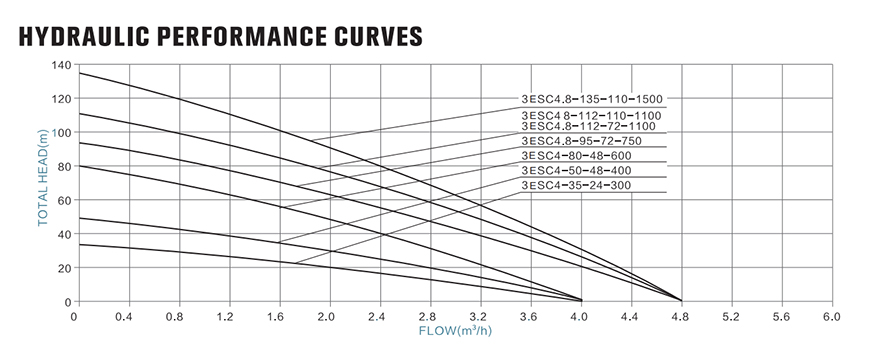

ITEM Voltage Optimum input voltage(DC) Power Max. Flow Max. Head Outlet Cable Solar panel
Open circuit voltage(VOC) Power
3ESC4-35-24-300 24V 30V-48V 300W 4m³/h 35m 1.25" 2m <50V ≥1.3*PUMP POWER
3ESC4-50-48-400 48V 60V-90V 400W 4m³/h 50m 1.25" 2m <100V ≥1.3*PUMP POWER
3ESC4-80-48-600 48V 60V-90V 600W 4m³/h 80m 1.25" 2m <100V ≥1.3*PUMP POWER
3ESC4.8-95-72-750 72V 90V-120V 750W 4.8m³/h 95m 1.25" 2m <150V ≥1.3*PUMP POWER
3ESC4.8-112-72-1100 72V 90V-120V 1100W 4.8m³/h 112m 1.25" 2m <150V ≥1.3*PUMP POWER
3ESC4 8-112-110-1100 110V 110V-150V 1100W 4.8m³/h 112m 1.25" 2m <200V ≥1.3*PUMP POWER
3ESC4.8-135-110-1500 110V 110V-150V 1500W 4.8m³/h 135m 1.25" 2m <200V ≥1.3*PUMP POWER
