Taizhou Haipai Import & Export Co., Ltd.
Home / Products / Solar Pump / Solar Panels For Solar Pump / 150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel

Wholesale 150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel

  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • Taizhou Haipai Import & Export Co., Ltd.
  • 150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel
  • 150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel
  • 150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel
Solar Panels For Solar Pump

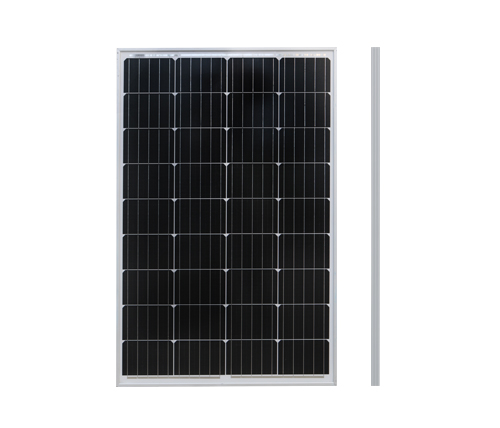

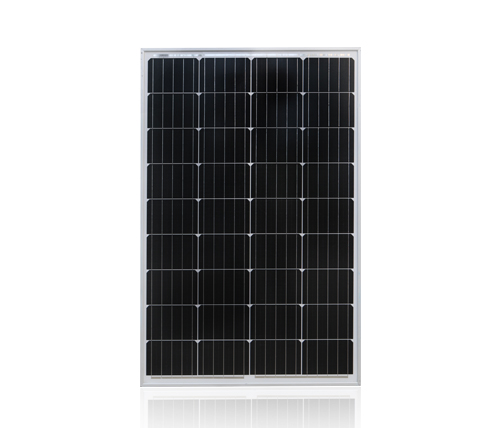

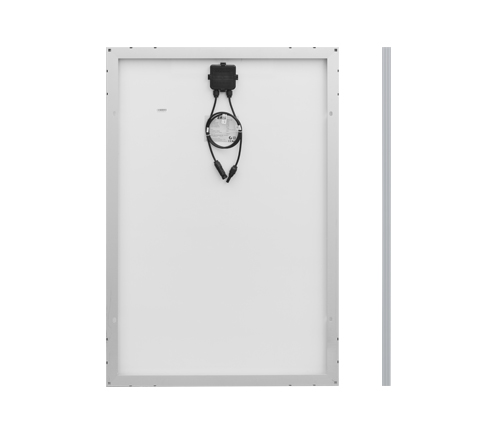

150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel

Mono-crystalline
Half-Cut
36 cells,166mm
Eco-friendly
Get A Quote
Download
×
Get password
submit

Description:

This innovative product combines the power of solar energy with advanced technology to deliver exceptional performance in even the most challenging environments. 150W mono-crystalline half-cut small-size solar panel maximizes energy conversion, allowing the pump to operate at its full potential. According this eco-friendly feature, you can enjoy a sustainable and cost-effective solution for your water pumping needs.With its exceptional features, reliable performance, and eco-friendly design, it is the perfect choice for those seeking a high-quality and sustainable solution.10 years warranty will be offered as well.

Electrical Performance Data:

Panel type

ESM36MH

Dimensions (mm)

1500x545x30

Weight (kg)

9.50

Cell Type (mm)

119x166

Number of Cells

36 (3x12)

Maximum Power (Wp)

150W

Open circuit Voltage (Voc)

23.60V

Short circuit Current (lsc)

8.10A

Maximum Power Voltage (Vm)

19.85V

Maximum Power Current (lm)

7.56A

Maximum Series Fuse

15A

Number of Diodes

1

Cable Type and Length

4mm² , 90cm

Standard Test Conditions

1000W/M², 25C , AM1.5

Production of Solar Panel :
