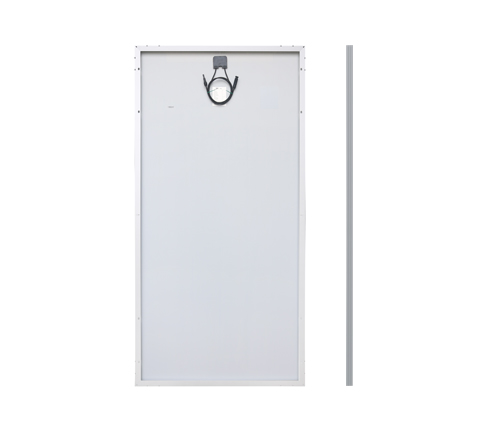

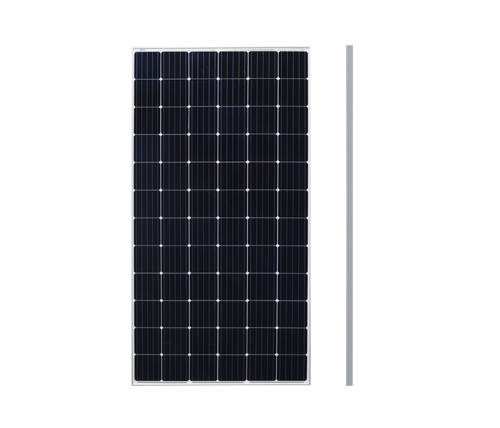

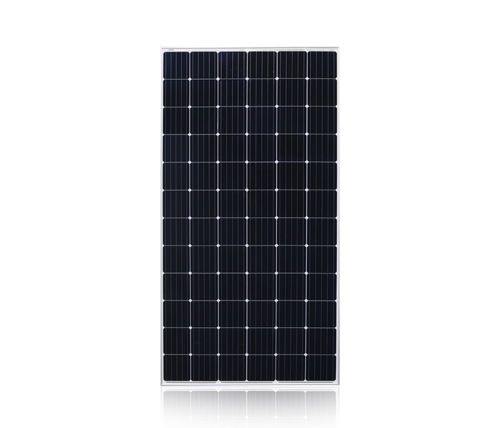

200W Mono-crystalline Half-Cut Small-size 72 Cell Low-light Conditions Solar Panel

200W Mono-crystalline Half-Cut Small-size 72 Cell Low-light Conditions Solar Panel

Mono-crystalline

Half-Cut
72 cells,166mm
Small-size

Contact Us

PREV：No previous product
NEXT：150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel

Description
Components
Curves
Performance Data
Contact Us

Electrical Performance Data:

Panel type	ESM72MH
Dimensions (mm)	1425x705x30
Weight (kg)	11.50
Cell Type (mm)	95x166
Number of Cells	72 (4x18)
Maximum Power (Wp)	200W
Open circuit Voltage (Voc)	48.50V
Short circuit Current (lsc)	5.25A
Maximum Power Voltage (Vm)	41.60V
Maximum Power Current (lm)	4.90A
Maximum Series Fuse	10A
Number of Diodes	2
Cable Type and Length	4mm² , 90cm
Standard Test Conditions	1000W/M², 25C , AM1.5

Production of Solar Panel :
