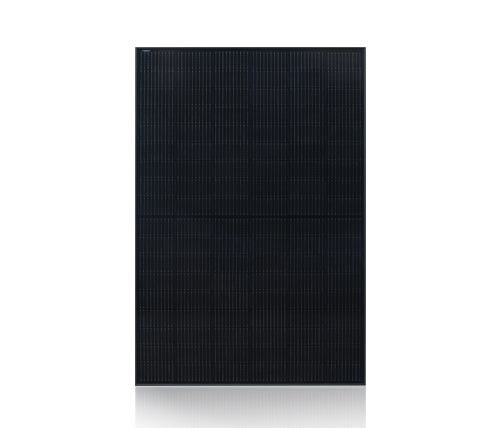

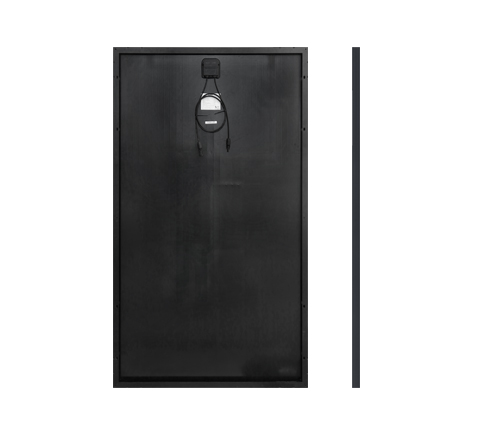

120W Mono-crystalline Half-Cut Light-weight Design Solar Panel

Mono-crystalline
Half-Cut
Light-weight Design

Get A Quote
Download
×
Get password
submit

Description:
      Harnessing the power of the sun , this 120W mono-crystalline  half-cut light-weight design solar panel is designed to maximize energy output, ensuring optimal performance of the pump throughout the day. Its lightweight construction makes installation and maintenance hassle-free, allowing for easy transportation and handling.10 years warranty to make sure your use feeling.

Electrical Performance Data:

Panel type

ESM36MH-120W

Dimensions (mm)

1205X545X30

Weight (kg)

9.50

Cell Type (mm)

95X166

Number of Cells

36 (3X12)

Maximum Power (Wp)

120W

Open circuit Voltage (Voc)

23.60V

Short circuit Current (lsc)

6.50A

Maximum Power Voltage (Vm)

19.85V

Maximum Power Current (lm)

6.05A

Maximum Series Fuse

10A

Number of Diodes

1

Cable Type and Length

4mm² , 90cm

Standard Test Conditions

1000W/M², 25C , AM1.5

Production of Solar Panel:
