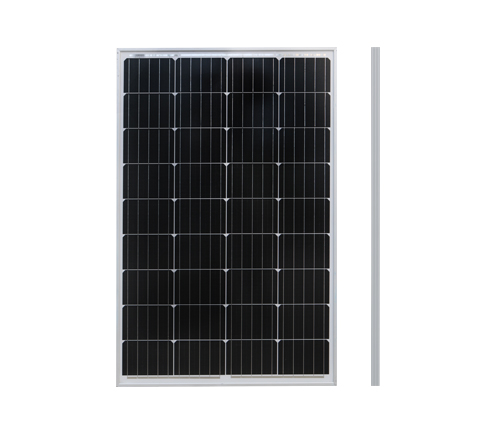

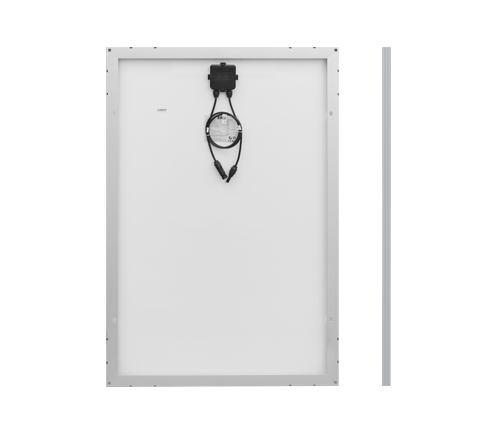

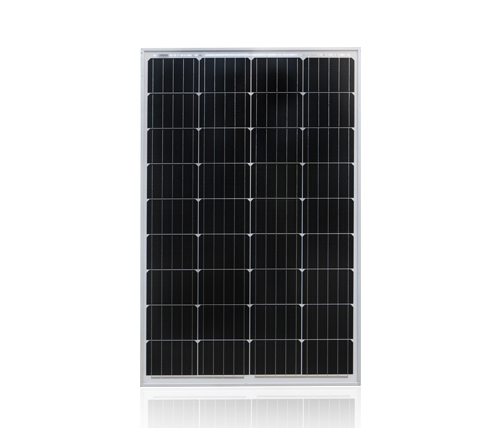

100W Mono-crystalline Half-Cut Small-size Durable Solar Panel

100W Mono-crystalline Half-Cut Small-size Durable Solar Panel

Mono-crystalline

Half-Cut
36 cells,166mm
Small-size
Durable

Contact Us

PREV：150W Mono-crystalline Half-Cut Small-size Eco-friendly Solar Panel
NEXT：80W Mono-crystalline Half-Cut 36 Cell Small-size Solar Panel

Description
Components
Curves
Performance Data
Contact Us

Electrical Performance Data:

Panel type	ESM36MH-100W
Dimensions (mm)	965X545X30
Weight (kg)	8.00
Cell Type (mm)	75x166
Number of Cells	36 (3x12)
Maximum Power (Wp)	100W
Open circuit Voltage (Voc)	24.25V
Short circuit Current (lsc)	5.25A
Maximum Power Voltage (Vm)	20.40V
Maximum Power Current (lm)	4.90A
Maximum Series Fuse	10A
Number of Diodes	1
Cable Type and Length	4mm² , 90cm
Standard Test Conditions	1000W/M², 25C , AM1.5

Production of Solar Panel :
