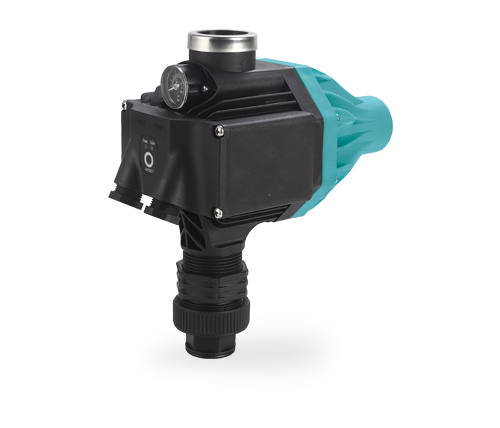

EPC-13 Series 10Bar 1.5KW Auto Reset Functions Pressure Switch Applied for Water Pumps

Max working pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP65

Auto Reset Functions
Pressure Switch Applied for Water Pumps

PREV：EPC-9 Series 60℃ Working Temperature Silver Plated Contact Rain Proof Design Pressure Switch for Water Pumps
NEXT：EPC-16 Series 110V to 240V 1.1KW Single Phase Toolless Starting Pressure Adjust Pressure Switch for Water Systems

Description
Components
Curves
Performance Data
Contact Us

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max. power	1.5KW	0.75KW	0.75/1.5KW
Starting pressure setting	1.2bar , 1.5bar , 2.2bar	1.2bar , 1.5bar , 2.2bar	1.2bar , 1.5bar , 2.2bar
Max. working pressure	10bar	10bar	10bar
Connection thread	G1” , G1.25”	G1” , G1.25”	G1” , G1.25”
Protection rating	IP65	IP65	IP65
Max. working temperature	55℃	55℃	55℃
