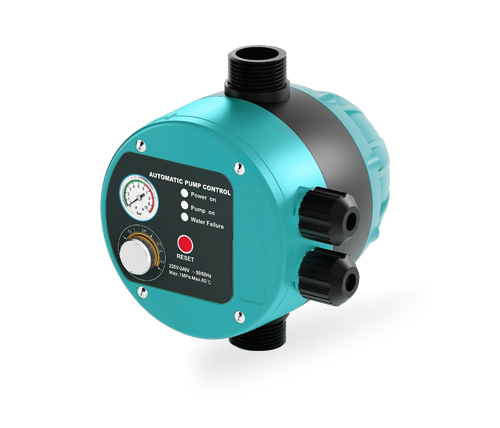

EPC-16 Series 110V to 240V 1.1KW Single Phase Toolless Starting Pressure Adjust Pressure Switch for Water Systems

Max working pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 60℃

Protection degree : IP65

Toolless Starting Pressure Adjust
Pressure Switch for Water Systems

PREV：EPC-13 Series 10Bar 1.5KW Auto Reset Functions Pressure Switch Applied for Water Pumps
NEXT：FU3 Series IP65 Waterproof Intelligent Auto-adaptable Controller with Pressure Tank

Description
Components
Curves
Performance Data
Contact Us

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max. power	1.1KW	0.55KW	0.55/1.1KW
Starting pressure setting	1.0-3.0bar	1.0-3.0bar	1.0-3.0bar
Max. working pressure	10bar	10bar	10bar
Connection thread	G1”	G1”	G1”
Protection rating	IP65	IP65	IP65
Max. working temperature	60℃	60℃	60℃
