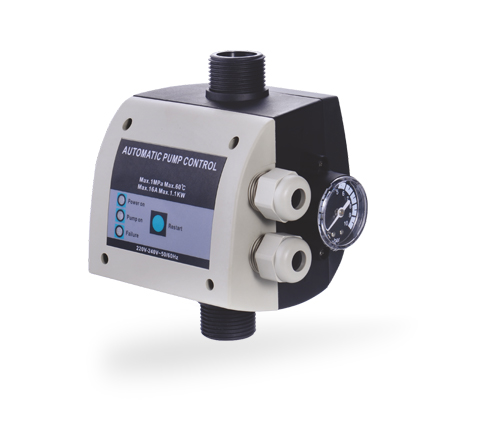

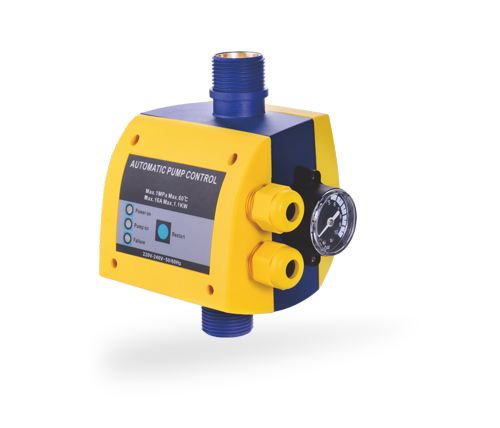

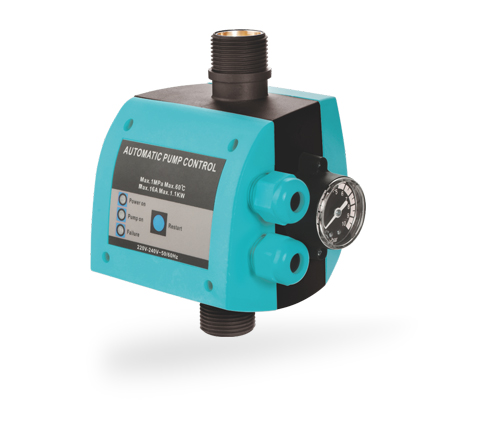

EPC-9 Series 60℃ Working Temperature Silver Plated Contact Rain Proof Design Pressure Switch for Water Pumps

Max working pressure : 10bar

Max. Rated Current : 30A

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 60℃

Protection degree : IP54

Silver Plated Contact

Rain Proof Design

Pressure Switch for Water Pumps

PREV：EPC-10 Series Manual and Time Modes NBR Rubber Membrane Pressure Switches for Usage with Water Pump System
NEXT：EPC-13 Series 10Bar 1.5KW Auto Reset Functions Pressure Switch Applied for Water Pumps

Description
Components
Curves
Performance Data
Contact Us

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max. using current	10A/30A	10A/30A	10A/30A
Max. power	1.1KW/2.2KW	0.55KW/1.1KW	1.1KW/2.2KW
Starting pressure setting	1.5bar - 3.0bar	1.5bar - 3.0bar	1.5bar - 3.0bar
Max working pressure	10bar	10bar	10bar
Connection thread	G1”	G1”	G1”
Protection rating	IP54	IP54	IP54
Max. working temperature	60℃	60℃	60℃
