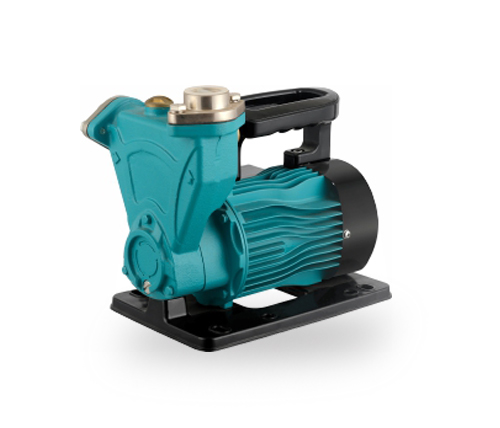

Used for Tap Booster
Power: 0.37kw/0.5hp-0.9kw/1.2hp
Max. flow: 40-60L/min
Max. Head: 35-50m
Inlet / Outlet: 1"x1"
Delayed Start Technology: Our pumps feature a 3-second delay upon power connection, safeguarding the motor and ensuring user safety.
Water Shortage Protection: With an automatic power-off after 8 minutes of dry running, the ETPS Series protects against water wastage and potential damage.
Auto-Clean Function: To prevent pump seizure, the pump operates for 5 seconds every 72 hours when not in use, keeping the impeller free from dirt and debris.
Easy-to-Install Flow Switch: The flexible joint design allows for simple and convenient installation and removal.
Motor Specifications :
Durable Copper Wiring: For longer lifespan and enhanced performance.
High-Efficiency Bearings: Ensuring smooth operation.
Cold-Rolled Silicon Steel Sheets: For energy efficiency.
Single-Phase Motor: With a wide voltage design and built-in overheating protection.
Protection Rating: IPX4, ensuring safety against water ingress.
Insulation Rating: Class F, for reliable electrical insulation.
Maximum Ambient Temperature: +40°C, suitable for various environments.
Cast Iron Body and Cover: Special anti-rust treatment for durability.
Copper Impeller and Stainless Steel Inserts: Ensuring smooth restart after long periods of inactivity.
AISI 304 Stainless Steel Shaft: Guaranteeing rust-free water contact areas.
Maximum Liquid Temperature: +90°C, suitable for hot water applications.
Maximum Suction Height: +9m, capable of handling high vertical lifts.
|

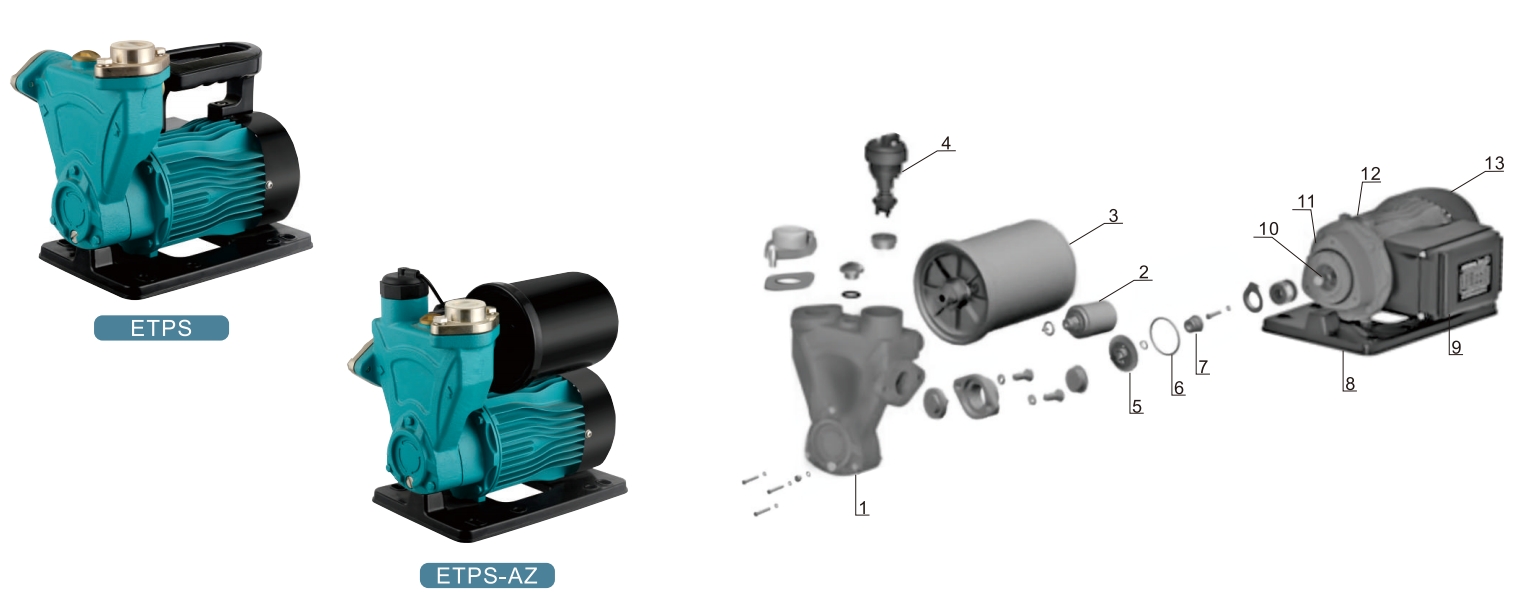

Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump Body |
HT200 |
|
2 |
Pressure Sensor |
|
|
3 |
Tank |
|
|
4 |
Flow Sensor |
|
|
5 |
Impeller | Brass |
|
6 |
“ O ” ring | |
|
7 |
Mechanical Seal |
Carbon/Ceramic |
|
8 |
Base |
|
|
9 |
Terminal Cover |
|
|
10 |
Shaft And Rotor |
|
|
11 |
Support |
HT200 |
|
12 |
Motor Case |
Aluminum |
|
13 |
Fan Cover |
|
| Model | Power | Inlet x Outlet | Max. Flow | Max. Head | Max. Suction | |
| KW | HP | (L/min) | (m) | (m) | ||
| ETPS-370 | 0.37 | 0.50 | 1"x1" | 40 | 35 | 9 |
| ETPS-550 | 0.55 | 0.75 | 1"x1" | 50 | 40 | 9 |
| ETPS-750 | 0.75 | 1.0 | 1"x1" | 55 | 45 | 9 |
| ETPS-900 | 0.90 | 1.2 | 1"x1" | 60 | 50 | 9 |
