Wholesale SMT Series Smart Control Panel Double Control System Intelligent Self-priming Pump

Self-priming Peripheral Pump

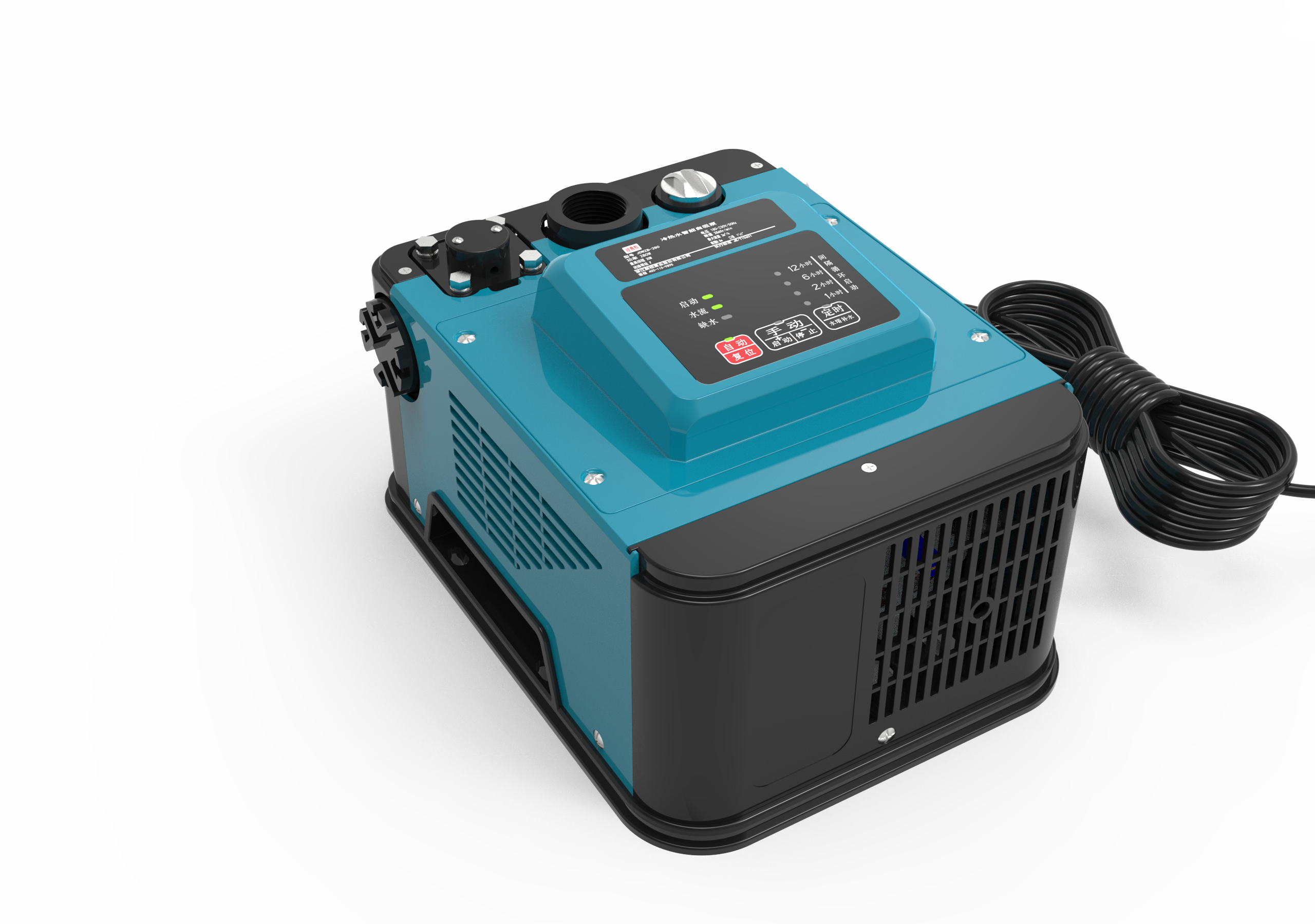

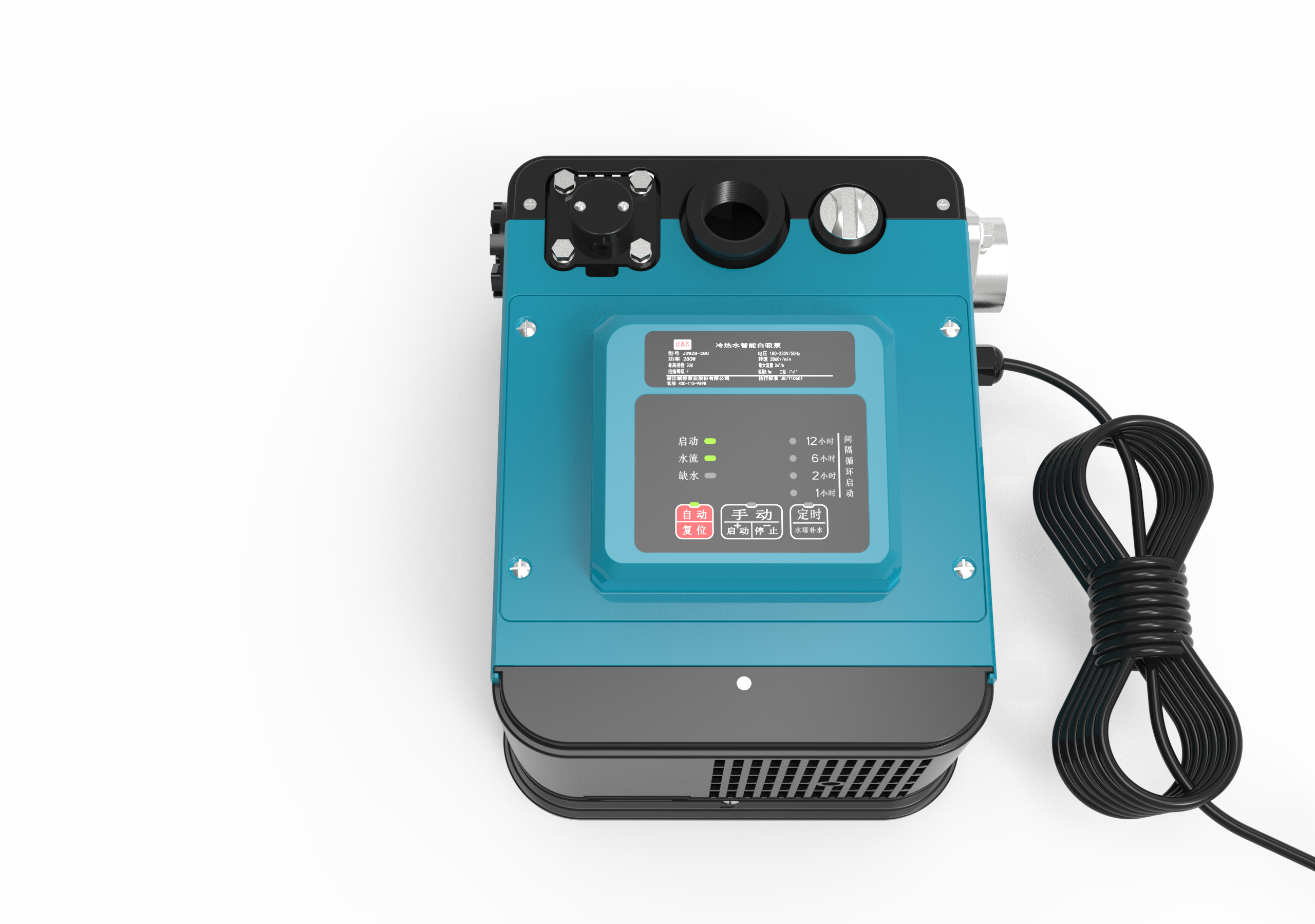

SMT Series Smart Control Panel Double Control System Intelligent Self-priming Pump

Insulation : Class F

Power : 0.28KW/0.4HP-0.88KW/1.2HP

Max. Head ( m ) : 30-45

Max. Flow ( m3/h ) : 2-3.5

Smart control panel

Silicon carbide mechanical seal

Double control system

Get A Quote
Download
×
Get password
submit
PREV：ITWZB Series Automatic Multi Protection Double Control System Intelligent Self Primning PumpNEXT：ETPS Series Durable Self-suction Pump for Pond

Function :

Linear pressure sensor is used to control the starting pressure of pump instead of traditional mechanical switch.At the same time,it has advanced flow control system.
The functions of the pump include:
1.Automatic identification of pipe pressure;2.Automatic regulation of starting pressure;
3.The chip has memory function;
4.Plug-and-play;
5.Intelligent learning;
6.The operation of water pump is controlled by pressure sensor and flow switch.;
7.Water shortage protection;
8.Automatically start the pump when water regains;
9.Timing function ;
10.Temperature protection;
11.Electrophores is rust prevention.

Motor ：

Electric pump speed : (n=2850r.p.m)
Insulation : ClassF
Protection : lP44
Continuous service : S1
Thermal protector :
Single-phase : 220V,50/60Hz.
and can be customized 110/127/220V50/60Hz

Application :
Suitable for well water pumping, family, hotel, canteen, garden irrigation and other clean water pressurization, but also solar energy,water heater,central air conditioning and other equipment supporting pressurization preferred.

Operating conditions :
The temperature of pumping liquid does not exceed 100oC and the ambient temperature does not exceed 40oC, and the maximum suction is 8.5m.

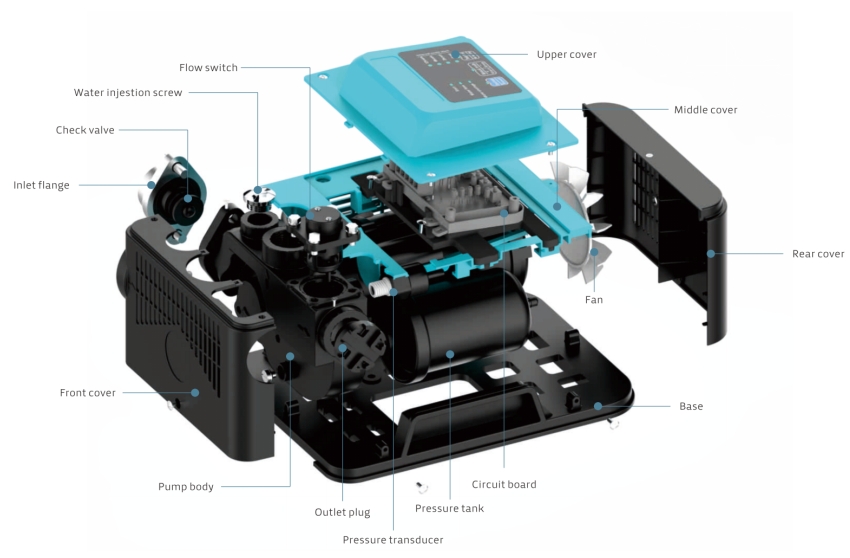

Product Explosion Chart :


Components

Construction

Pump body

    Cast iron,304stainless steel inserts

Pump support

Cast iron,304stainless steel inserts

Motor housing

Aluminum

impeller

Copper

Mechanical Seal

Silicon carbide

Bearing

6201(280W-480W)  6202(680W-880W)

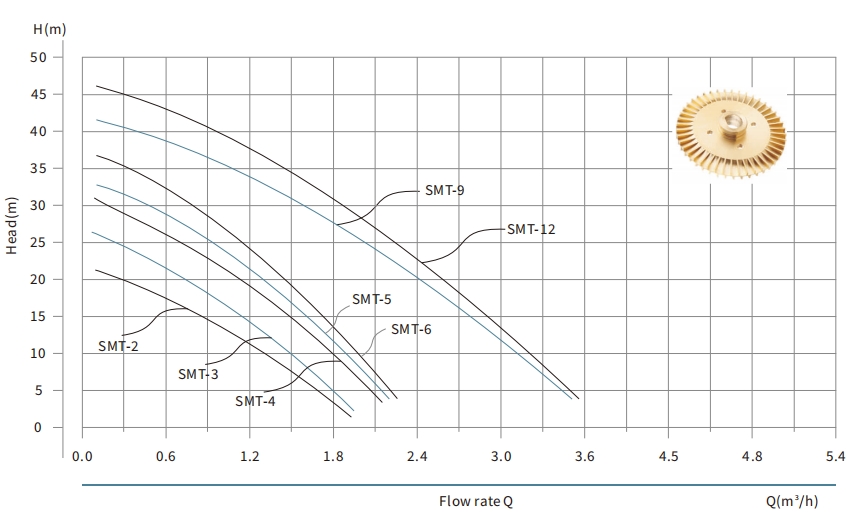

Performance Chart :

Technical Data ：

Model

Power
（W)

Power
（Hp)

Max.flow
（m³/h）

Max.flow
（l/min）

Max.head
（m）

Max.suct
（m）

PIPE
（Inch）

Meas.
(mm)

Volume
(m³)

G.W.
（kg）

SMT-2

128

0.2

1.8

30

20

6

1"×1"

332*228*274

0.018

8.70

SMT-3

200

0.3

1.8

30

25

6

1"×1"

332*228*274

0.018

8.70

SMT-4

280

0.4

2.0

33

30

8.5

1"×1"

343*220*288

0.022

10.10

SMT-5

380

0.5

2.0

33

32

8.5

1"×1"

343*220*288

0.022

10.50

SMT-6

480

0.7

2.0

33

35

8.5

1"×1"

343*220*288

0.022

10.70

SMT-9

680

0.9

3.5

58

40

8.5

1"×1"

368*241*298

0.026

14.80

SMT-12

880

1.2

3.5

58

45

8.5

1"×1"

368*241*298

0.026

15.20
