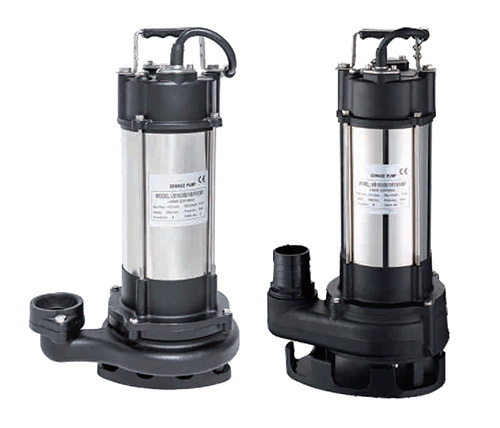

VB Series 220V Insulation Class B Thermal Protector Sewage Pump for Methane Pools

Rated Voltage : 220V
Insulation Class : B
Thermal Protector
Sewage Pump
for Methane Pools

Get A Quote
Download
×
Get password
submit

Application:

Wastewater drainage in factories,construction sites and commercial facilities

Drainage system in municipal sewage treatment plants

Drainage station in residential quarters Methane pools and field irrigation in countryside



Motor :

Max immersion depth : 5m
Max liquid temperature : 40°C
Liquid PH value : 5-9
Liquid kinematic ciscosity : 7×10-6~23×10-6m²/s
Max liquid density : 1.2×10³kg/m³
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class : B
Protection class : IX8

Options on request :
Float switch
Other voltages or frequency

Warranty : 1 year

(According to our general sales conditions)

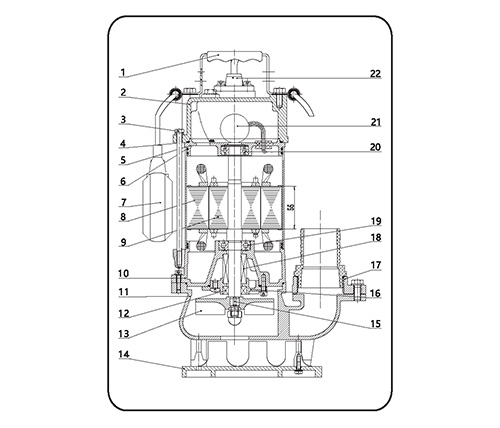

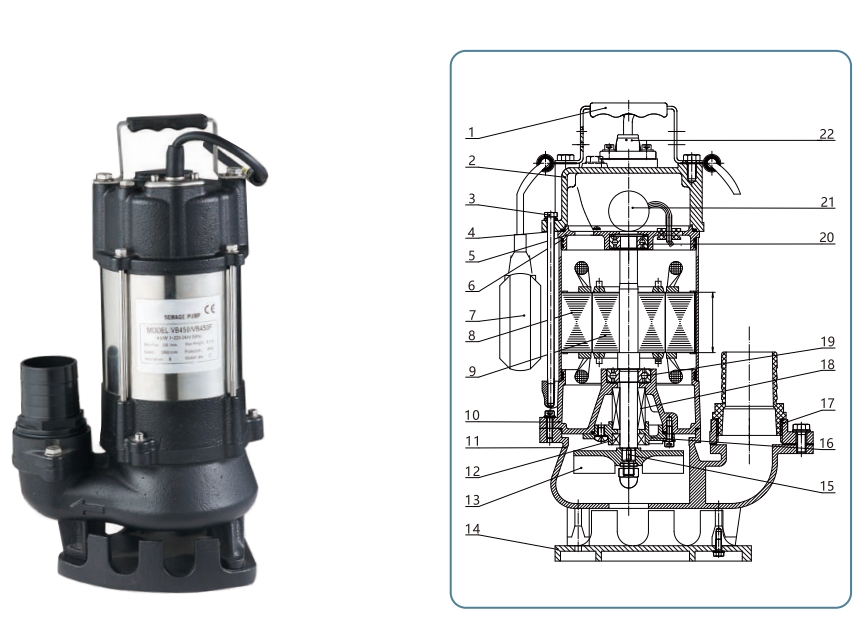

Components and material :

NO.

NAME

MATERIAL/SPEC.

1

Handel

Stainless steel

2

Capacitor Cover

HT200

3

Screw

Stainless steel

4

O Ring

NBR

5

Upper Cover

HT200

6

O Ring

NBR

7

Float Switch(Optional)



8

Motor

AISI201 (Motor casing)

9

Rotor

45#Carbon steel & 2Cr13 Stainless

10

Oil Chamber

HT200

11

Pump body

HT200

12

Oil Seal

NBR

13

Impeller

HT200

14

Base Plate

HT200

15

Key

Stainless Steel

16

Oil Chamber Cover

HT200

17

Out-let Connector

HT200

18

Mechanical Seal

Ceramic/Graphite

19

Bearing



20

Bearing



21

Capacitor



22

Cable Protector

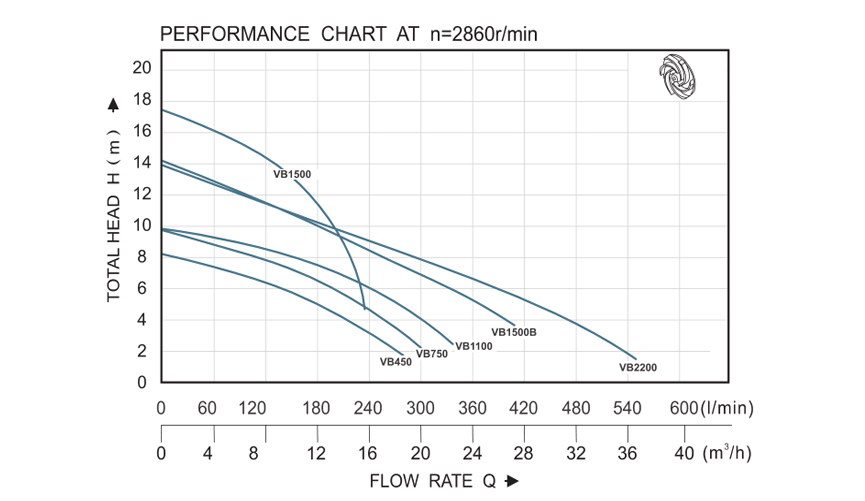

Performance chart :

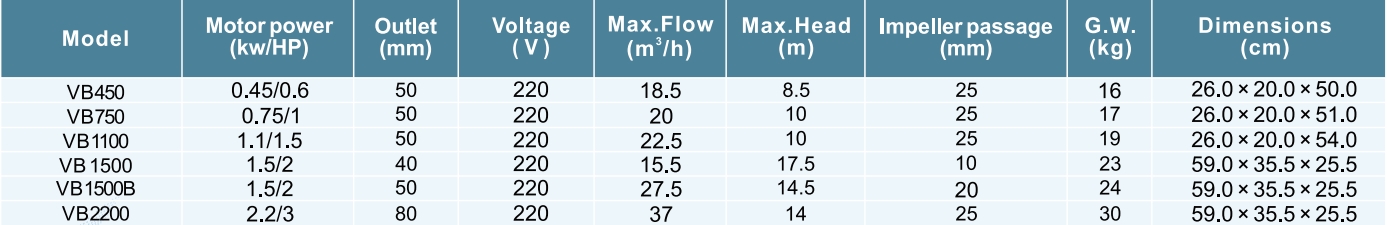

Performance Data :
