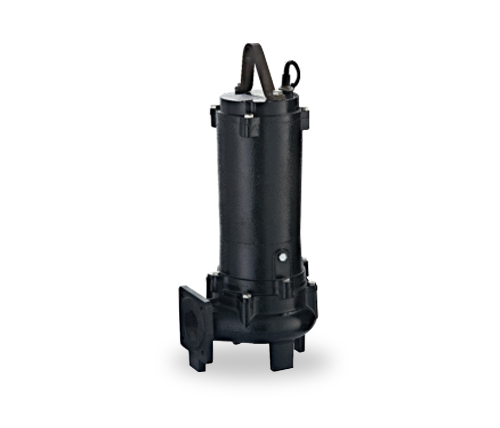

KPZ Series 380V 2.2KW to 4 KW Surge Protection Sewage Submersible Pump for Municipal Sewage Treatment Plants

KPZ Series 380V 2.2KW to 4 KW Surge Protection Sewage Submersible Pump for Municipal Sewage Treatment Plants

Rated voltage : 380V

Motor power : 2.2 - 3 KW

Surge Protection

Sewage Submersible Pump

for Municipal Sewage Treatment Plants

Contact Us

PREV：KPWm Series 220V 150W to 3KW Seal Abrasion Resistance Sewage Submersible Pump for Water Drainage of Residential Quarters
NEXT：VB Series 220V Insulation Class B Thermal Protector Sewage Pump for Methane Pools

Description
Components
Curves
Performance Data
Contact Us

Key features :

The KPZ Series 380V 2.2-4 KW Surge Protection Sewage Submersible Pump is a specialized pump designed for use in municipal sewage treatment plants. It is known for its surge protection capabilities and its ability to handle sewage and wastewater in submersible applications.

One of the key features of this sewage pump is its surge protection capability. It is designed to handle power surges and fluctuations commonly found in electrical systems. This helps to protect the pump from damage and ensures reliable and consistent operation in municipal sewage treatment plants.

The pump operates on a 380V power supply, which is commonly used in three-phase electricity states,such as Argentina,Chile,Ethiopia and so on.

The KPZ Series sewage pump is specifically designed for submersible applications. It is capable of being fully submerged in sewage and wastewater, allowing for efficient pumping and transport. This makes it suitable for use in the wet wells or lift stations commonly found in municipal sewage treatment plants.

Additionally, these pumps are often constructed with durable materials, such as stainless steel or cast iron, to withstand the corrosive and abrasive nature of sewage and wastewater. They are also designed with features such as automatic float switches or level sensors to control the pump's operation based on the liquid level.

The KPZ Series 380V 2.2-4 KW Surge Protection Sewage Submersible Pump is a reliable and efficient solution for handling sewage and wastewater in municipal sewage treatment plants. Its surge protection capabilities, submersible design, and compatibility with 380V power supply make it suitable for demanding applications in these facilities.

Pump :
Max. immersion depth : 5m
Max. liquid temperature : 40°C 104°F
Liquid PH value : 5-9
Liquid kinematic ciscosity : 7x10^-6~23x10^-6m²/s
Max. liquid density : 1.2x10³kg/m³Warranty : 1 year

Motor :
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class : B
Protection class : IPX8

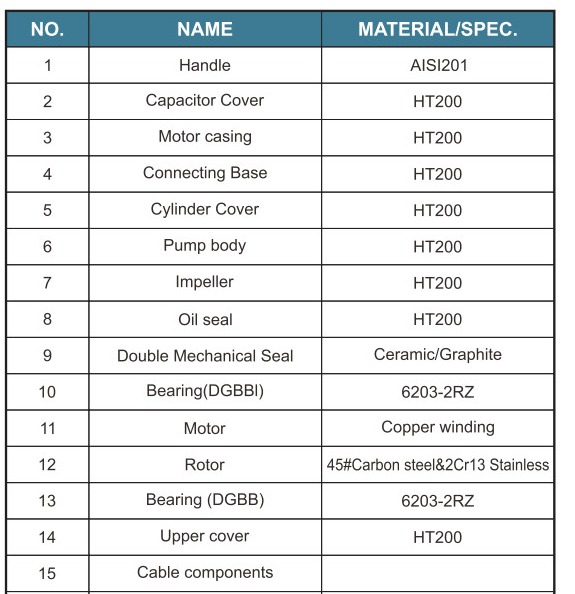

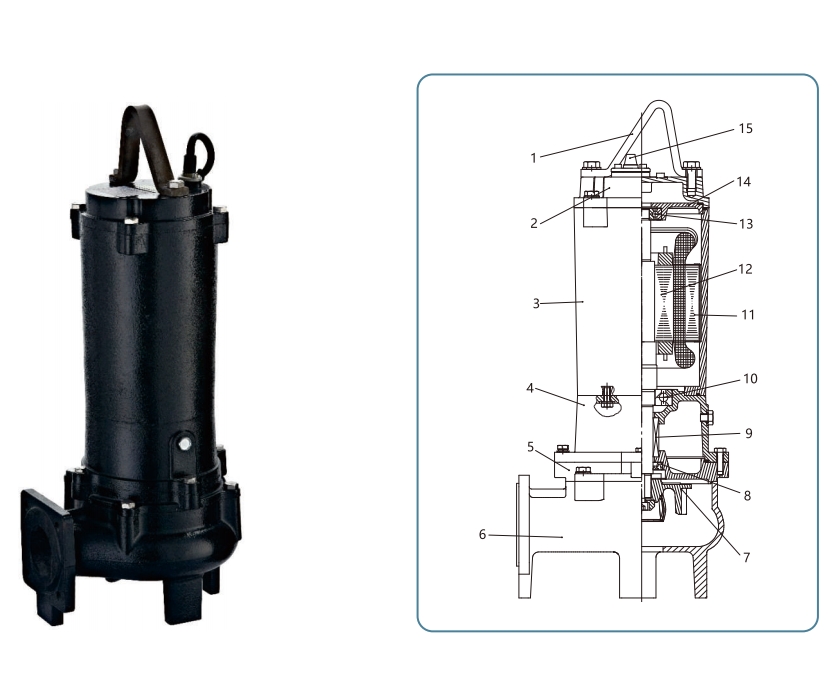

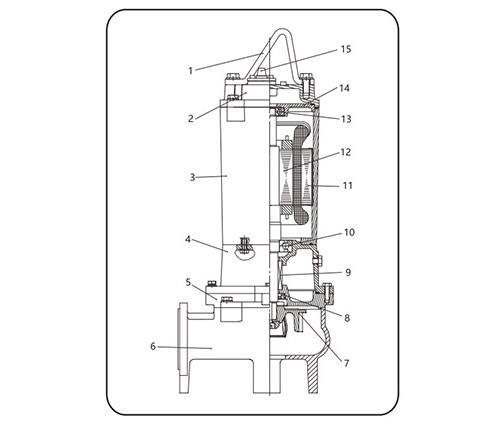

Components :

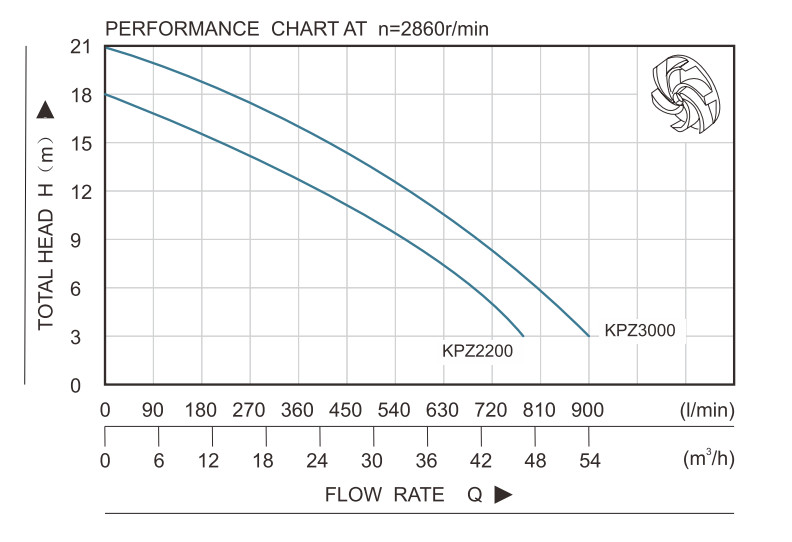

Performance chart :

Performance Data :
