1. Enhanced Efficiency : The pump's innovative design ensures high efficiency and low energy consumption, significantly reducing operational costs for sewage treatment plants.
2. Strong Emission Capability : Equipped with a powerful motor, the VS Series pump effectively handles solid waste, preventing clogging and ensuring smooth operation even in challenging conditions.
3. Long-Life Durability : Constructed with durable materials, including corrosion-resistant components, the pump is built to withstand the harsh and corrosive environment commonly found in sewage treatment plants, minimizing maintenance needs and downtime.
4. Easy Maintenance : Designed with user convenience in mind, the pump features a modular design that allows for quick and easy maintenance, reducing service time and costs.
5. 1 year warranty.
Max immersion depth : 5m
Max liquid temperature : 40℃
Liquid PH value : 5-9
Liquid kinematic ciscosity : 7×10-6~23×10-6m²/s
Max.liquid density : 1.2×10³kg/m³
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class : B
Protection class : IPX8
|

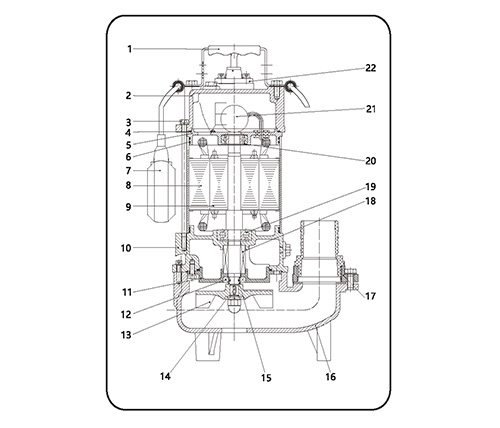

NO. |
NAME |
MATERIAL/SPEC. |
|
1 |
Handel |
Stainless steel |
|
2 |
Capacitor Cover |
HT200 |
|
3 |
Screw |
Stainless steel |
|
4 |
Washer |
Stainless steel |
|
5 |
O Ring |
NBR |
|
6 |
Upper Cover |
HT200 |
|
7 |
O Ring |
NBR |
|
8 |
Float Switch(Optional) |
|
|
9 |
Motor |
AISI201 (Motor casing) |
|
10 |
Rotor |
45#Carbon steel |
|
11 |
Oil Chamber |
HT200 |
|
12 |
Oil Chamber Cover |
HT200 |
|
13 |
Oil Sseal |
NBR |
|
14 |
Impeller |
HT200 |
|
15 |
Key |
Stainless Steel |
|
16 |
Shaft Sleeve |
Stainless Steel |
|
17 |
Pump Body |
HT200 |
|
18 |
Out Let Connecting |
HT200 |
|
19 |
Mechanical Seal |
Ceramic/Graphite |
|
20 |
Bearing |
|
|
21 |
Capacitor |
|
|
22 |
Cable Protector |
|
EDWIN PUMP is a professional China borewell pumps manufacturers and deep well pumps factory, which supply a wide range of water pumps and water treatment peripheral products to customers around the world.
Our factory mainly produce three types of pumps: deep well pumps, sewage submersible pumps and household borewell pumps. At the same time, when customers have demand, we also provide customers with other related water treatment products by a professional working team from the company.
