ERS-3 Series Voltage Stabilization Mechanical Temperature-resistant Pressure Switch
Reliable pressure control is essential wherever a water pump must start and stop automatically, maintain a dependable supply, and operate safely under changing demand. In domestic water systems, agricultural irrigation, building services, and small commercial installations, a pressure switch provides the control point between the hydraulic network and the electric pump. When the pressure falls below a defined starting value, the switch energizes the pump. When the pressure reaches the selected stopping value, it disconnects the pump. A well-designed pressure switch therefore influences system stability, energy use, equipment life, and user comfort.
The ERS-3 Series Voltage Stabilization Mechanical Temperature-resistant Pressure Switch is designed for this purpose. It combines mechanical pressure sensing, automatic pump control, temperature resistance, voltage compatibility, and configurable hydraulic connections in a compact control component. Its rated voltage range of 110V–240V, 50/60Hz operating frequency, and 12A rated current make it suitable for many common pump applications. The available pressure settings include 20–40 PSI, 30–50 PSI, 40–60 PSI, and 50–70 PSI, while customized settings can be supplied according to project requirements.
This article examines the operating principle, technical characteristics, application advantages, manufacturing strengths, installation considerations, maintenance requirements, and commercial value of the ERS-3 Series. It also explains why a mechanical pressure controller can remain a practical alternative to more complicated electronic systems, particularly when customers require dependable operation, straightforward servicing, and flexible adaptation to different water installations.
A water pump is designed to move water, but it does not automatically know when a system needs more water or when the required pressure has been reached. A pressure switch supplies that decision-making function. It monitors the hydraulic pressure in the connected pipeline and uses a pressure-sensitive mechanical mechanism to control the pump’s electrical circuit.

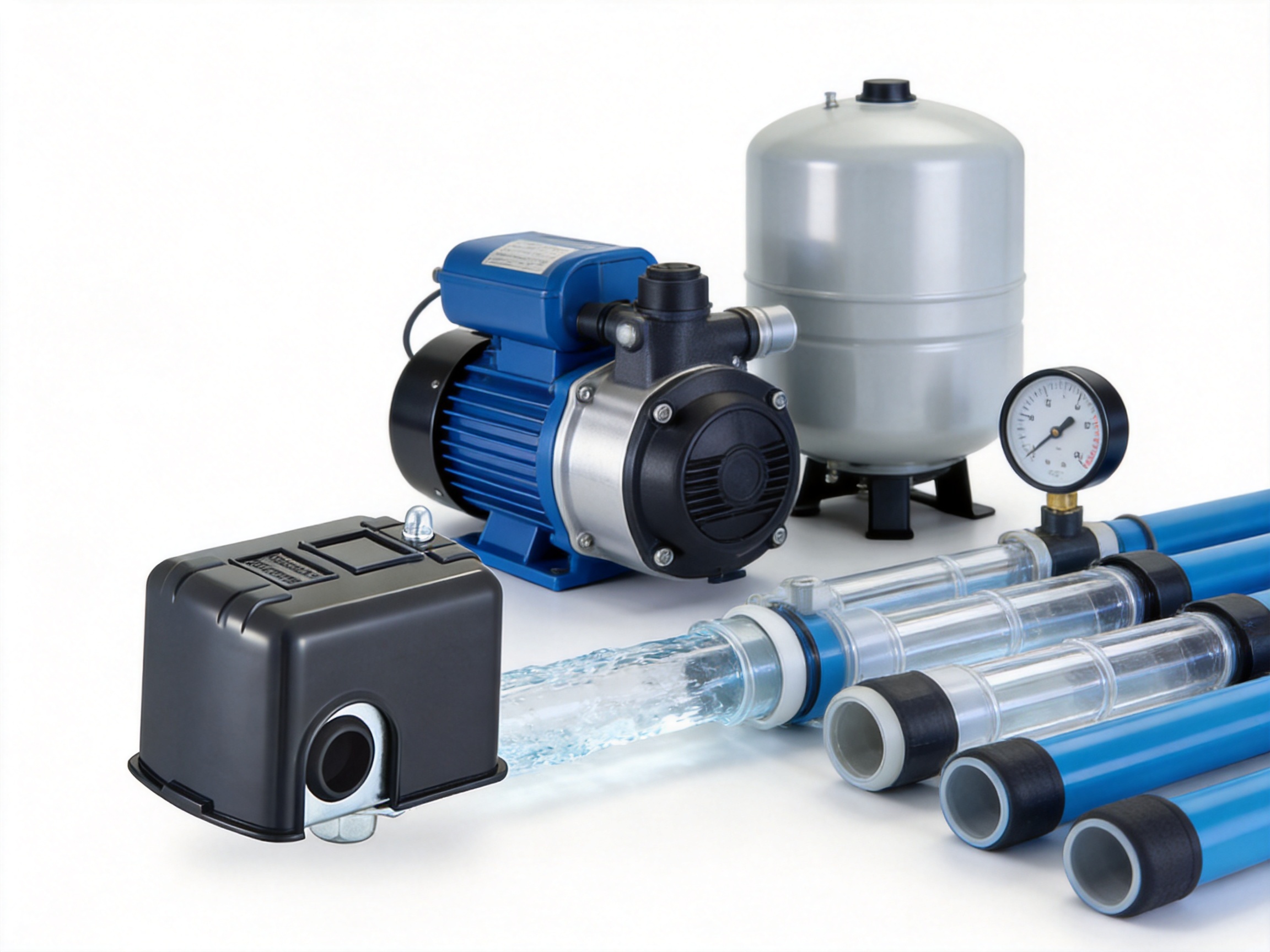

In a typical water supply installation, the pressure switch is connected to the pump discharge line, a pressure tank, or a suitable hydraulic connection. As water is consumed, system pressure gradually decreases. When the pressure reaches the cut-in value, the switch closes its electrical contacts and starts the pump. The pump then increases pressure in the system. Once the cut-out value is reached, the switch opens the circuit and stops the pump.
This automatic cycle provides several important benefits. It prevents the pump from operating continuously when demand is low, reduces unnecessary electricity consumption, supports a more stable water supply, and limits mechanical wear caused by uncontrolled operation. The pressure switch can also be integrated into domestic booster systems, irrigation equipment, small commercial installations, and other water systems requiring automatic pressure-based control.
The ERS-3 Series is specifically designed as a mechanical pressure controller for water systems. Its purpose is not to replace every type of pump protection device, dry-run controller, surge protector, or electronic monitoring system. Instead, it serves as a dependable pressure-based switching component that can be incorporated into a broader pumping solution when the application requires automatic start and stop control.
The ERS-3 Series is a voltage stabilization mechanical temperature-resistant pressure switch intended for automatic water pump control. It is categorized as a mechanical pressure controller and is available with hydraulic connections such as 1/4-inch male and 3/8-inch female configurations. The connection type can also be adapted to customer requirements, providing flexibility for different pipeline layouts and installation standards.
The pressure switch has a rated voltage range of 110V–240V and supports both 50Hz and 60Hz power frequencies. Its rated current is 12A. These specifications allow the product to serve a broad range of standard single-phase pump systems, provided that the selected pump and electrical circuit remain within the switch’s rated operating conditions.
The unit offers a minimum cut-in pressure of 20 PSI and a maximum cut-out pressure of 100 PSI. Standard pressure ranges include 20–40 PSI, 30–50 PSI, 40–60 PSI, and 50–70 PSI. These ranges cover many common household, agricultural, and light commercial water supply requirements. Customized pressure settings are available for customers whose systems require a different start-stop relationship.
The maximum working temperature is 55°C, and the protection rating is IP20. The flange may be manufactured from steel or plastic, depending on the configuration and customer requirements. Female and male screw options are available, with screw sizes including 1/4 inch and 3/8 inch combinations. These options help simplify integration into different pump assemblies and water pressure systems.
The following table summarizes the principal technical parameters of the ERS-3 Series pressure switch.
| Parameter | Specification |
|---|---|
| Product type | Mechanical pressure controller |
| Application | Automatic start and stop control for water pumps |
| Rated voltage | 110V–240V |
| Power frequency | 50/60Hz |
| Rated current | 12A |
| Minimum cut-in pressure | 20 PSI |
| Maximum cut-out pressure | 100 PSI |
| Available pressure ranges | 20–40 PSI; 30–50 PSI; 40–60 PSI; 50–70 PSI |
| Protection rating | IP20 |
| Maximum working temperature | 55°C |
| Flange materials | Steel or plastic |
| Hydraulic connection options | 1/4-inch male and 3/8-inch female, with customization available |
| Warranty | One year |
These specifications should always be reviewed together with the pump motor rating, installation environment, pipeline pressure, electrical protection, and local standards. A pressure switch is one part of a complete system, and correct product selection requires consideration of the entire system rather than the pressure range alone.
One of the product’s practical advantages is its 110V–240V rated voltage range. Many pumping projects are supplied from different electrical systems depending on the country, building type, or application. A pressure switch designed for a broad voltage range can simplify product selection and reduce the number of separate models that distributors and installers need to stock.
The compatibility with both 50Hz and 60Hz frequencies further supports international use. Customers serving multiple markets can benefit from a control component that is suitable for common power-frequency environments. This feature is particularly valuable for a manufacturer that supplies products globally, because it supports a wider variety of project specifications without requiring an entirely different product platform for every market.
The 12A rated current provides a useful capacity for many standard water pump applications. However, current selection must be made carefully. Motor starting current can be higher than normal running current, and some motors may require a contactor or additional relay even when their running current appears to be within the pressure switch rating. Professional installers should confirm the motor nameplate data and use suitable circuit protection.
Compared with a narrowly specified pressure controller, a broad voltage and frequency range can provide greater procurement flexibility. It can also help reduce installation errors caused by selecting a pressure switch designed for an incompatible power supply. Nevertheless, voltage compatibility does not remove the need for correct wiring, grounding, overload protection, and compliance with applicable electrical regulations.
The pressure switch is designed to maintain a defined operating band between cut-in and cut-out pressure. For example, a 30–50 PSI configuration starts the pump when pressure falls to approximately 30 PSI and stops it when pressure rises to approximately 50 PSI, subject to system conditions and calibration. This differential gives the pump a clear operating cycle and prevents the motor from responding to every minor fluctuation in the pipeline.
A stable pressure band is valuable in homes, workshops, farms, and commercial facilities. Without automatic control, an operator may need to start and stop the pump manually, which is inconvenient and increases the possibility of overflow, low-pressure operation, or unnecessary running. With a correctly adjusted pressure switch, the pump responds automatically to normal water demand.
The product’s voltage stabilization concept supports consistent electrical control across its specified voltage range. In practical terms, a pressure switch must maintain dependable contact operation while the connected system experiences normal variation in demand and supply. Stable electrical behavior helps the switching mechanism perform predictably and supports the overall reliability of the pump control system.
The pressure range should be selected according to the pump’s performance curve, pressure tank settings, building height, pipe resistance, and end-user requirements. A setting that is too high may prevent the pump from reaching cut-out pressure. A setting that is too low may not provide sufficient service pressure. The available standard ranges allow installers to choose a suitable starting point, while customized settings support more specialized systems.
Water pump equipment may be installed in locations exposed to heat from sunlight, machinery, enclosed equipment rooms, warm water lines, or seasonal temperature changes. The ERS-3 Series is specified with a maximum working temperature of 55°C, making it suitable for applications where the pressure switch must continue operating in moderately warm conditions.
Temperature resistance contributes to operational consistency. Mechanical components can be affected by heat, and unsuitable materials may become less reliable when exposed to elevated temperatures. A pressure switch designed for a defined temperature range gives system designers a clearer basis for application selection and helps reduce the risk of using an ordinary component in a warmer environment.
Temperature resistance does not mean that the product should be installed next to an uncontrolled heat source or used in hot-water applications beyond its rated conditions. The water temperature, ambient temperature, electrical enclosure temperature, and surrounding ventilation should all be considered. Where the installation may exceed 55°C, the customer should request a technical review before placing an order.
For ordinary cold-water supply and moderate-temperature pumping systems, the stated temperature capability provides a useful margin over basic indoor applications. This can help the pressure switch serve in a broader set of equipment rooms, pump cabinets, irrigation environments, and utility installations.
Mechanical pressure switches remain popular because their operating principle is easy to understand. Hydraulic pressure acts on a sensing element, and the resulting movement changes the position of electrical contacts. This direct relationship makes troubleshooting comparatively straightforward. An installer can inspect the pressure connection, observe the system pressure, check electrical continuity, and verify whether the switch responds at the intended settings.
The ERS-3 Series combines this familiar mechanical principle with a compact and durable construction. A compact controller is easier to install where pump assemblies, pressure tanks, manifolds, and electrical boxes are positioned close together. It can also reduce the amount of additional piping and wiring needed when replacing an older pressure switch.
A user-friendly design is especially valuable for distributors and service technicians. Products that are simple to identify, connect, adjust, and replace can reduce labor time over the service life of the pumping system. Clear connection options and defined pressure ranges also help installers match the product to the required application without unnecessary modification.
Mechanical equipment generally does not depend on a complex software interface, firmware update, or specialized programming device. This can be an advantage in remote agricultural locations, small workshops, and regions where electronic service support is limited. The product can be used as a practical control component while more advanced monitoring devices are added separately when required.
Different water systems use different connection standards. A pump manufacturer, distributor, or installer may need male threads, female threads, a specific connection size, or a customized hydraulic interface. The ERS-3 Series supports 1/4-inch male and 3/8-inch female options, while hydraulic connections can be produced according to customer requirements.
This flexibility helps simplify integration into domestic booster systems, pressure tanks, pump manifolds, and compact water supply assemblies. It may also reduce the need for multiple adapters, which can lower the number of potential leakage points. The correct choice depends on the existing pipework, fitting standard, available installation space, and required flow path.
Threaded connections should be installed with appropriate sealing methods and tightened according to good plumbing practice. Excessive force can damage the fitting or pressure switch body, while insufficient tightening may cause leakage. The pressure switch should not be used as a structural support for heavy pipework. Pipework should be independently supported so that mechanical stress is not transferred to the controller.
Customers with unusual connection requirements can discuss the desired hydraulic configuration during the quotation and technical confirmation stages. Customized connection options are especially useful for original equipment manufacturers and pump assemblers who want the pressure switch to fit directly into a standard product platform.
The ERS-3 Series offers several advantages over pressure controllers that provide only one voltage, one frequency, one connection size, or one fixed pressure setting. A broad electrical rating allows the same product family to serve more markets. Multiple standard pressure ranges support different user expectations. Connection customization helps meet the mechanical requirements of various pump systems.
Another advantage is the balance between straightforward mechanical operation and useful application flexibility. Some electronic pressure controllers include displays, sensors, communication functions, or programmable logic. These features can be valuable, but they may also increase product complexity, purchase cost, installation effort, and service requirements. For applications that only require automatic pressure-based pump starting and stopping, a mechanical switch can be more economical and easier to maintain.
Compared with a basic low-cost switch that has limited temperature capability, the ERS-3 Series provides a stated maximum working temperature of 55°C. This gives engineering teams a clear operating reference and supports use in moderately warm environments. Compared with a controller designed for only a narrow regional electrical standard, its 110V–240V and 50/60Hz specification improves international adaptability.
The product also offers a one-year warranty, which gives buyers a defined period of after-sales support. Warranty terms should be reviewed together with installation conditions, operating limits, and maintenance responsibilities. When used within specification, the warranty can provide additional confidence for distributors, equipment manufacturers, and project buyers.
In homes, villas, apartments, and small residential buildings, pressure switches are often used with booster pumps and pressure tanks. When occupants open a faucet or use a shower, pressure falls and the pump starts. When water demand stops and the system is replenished, the pump stops at the selected cut-out pressure. The ERS-3 Series can support this automatic cycle when the pump and electrical system are properly matched.
Garden pumps and small irrigation systems may experience changing demand as sprinklers, hoses, and valves are opened or closed. Automatic pressure control can reduce the need for manual pump operation. The selected pressure range should correspond to the irrigation equipment’s pressure requirements, pipe length, elevation, and flow demand.
Small agricultural water supply systems can benefit from a pressure controller that is easy to understand and replace. Farms may use pumps for livestock water, greenhouse irrigation, washdown, or general utility supply. Because installation conditions can vary significantly, the temperature rating, electrical supply, and pressure range should be checked before deployment.
Booster pumps are used to improve water pressure in buildings, workshops, commercial premises, and utility areas. A mechanical pressure switch can provide automatic demand-based operation in a simple booster arrangement. For larger systems or systems with multiple pumps, the switch may be used with contactors, control panels, pressure tanks, or additional sensors.
Light commercial facilities may require water pressure control for cleaning systems, service water, equipment supply, or small process applications. The ERS-3 Series can be considered where the pressure and electrical ratings are suitable. Larger industrial applications should normally use a properly engineered control panel and may require redundant sensing, motor protection, or programmable control.
Pool and spa equipment can include circulation and auxiliary water pumps. The pressure switch may be appropriate for selected water supply or booster applications, but compatibility with water chemistry, temperature, electrical safety, and equipment design must be confirmed. It should not be assumed that every pool or spa environment is suitable without reviewing the complete installation conditions.

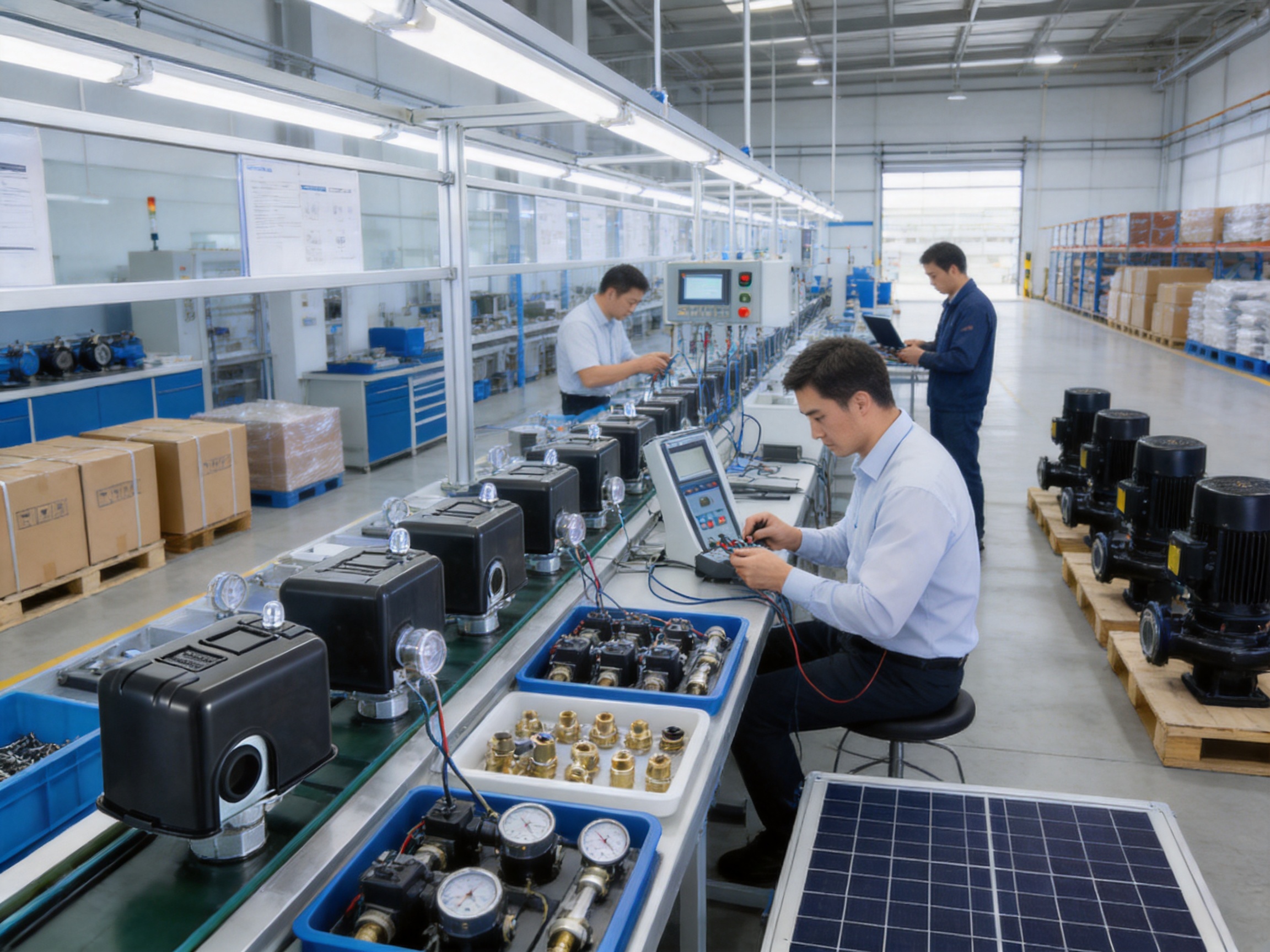

The manufacturer behind the product is an integrated enterprise with capabilities in independent research and development, mass production, and global export. This combination is important because a pressure switch is not only a catalog item; it must be developed, produced consistently, matched to pump systems, packaged for export, and supported after delivery.
Independent research and development allows the manufacturer to adapt products to changing market needs. Customer requests may involve pressure ranges, hydraulic connections, materials, electrical standards, or integration with a specific pump assembly. A company with internal product development experience is better positioned to evaluate these requirements and convert suitable requests into repeatable product configurations.
Mass production capability supports stable supply for distributors, pump assemblers, and project customers. It can also improve consistency by allowing production teams to standardize components, assembly procedures, inspection points, and packaging. For buyers, reliable availability is important because a pressure switch may be required as part of a complete pump order or as a replacement component for an installed product line.
The company’s broader product portfolio includes deep well pumps, submersible pumps, domestic booster pumps, circulation pumps, solar water pumps, intelligent booster pumps, and related water treatment peripheral products. This range gives engineering and sales teams a wider understanding of pump applications. It also creates opportunities for one-stop procurement, allowing customers to source pumps and associated control products from a coordinated supplier.
The products are used in new energy projects, agricultural irrigation, municipal engineering, mining, construction, HVAC systems, and household water supply. Exposure to these different sectors can strengthen product development because each sector presents distinct requirements for pressure, flow, installation environment, control method, and serviceability.
A dependable pressure switch requires more than a suitable design. Consistent assembly, accurate pressure calibration, reliable electrical contacts, appropriate sealing, and correct final inspection are all important. An integrated manufacturing enterprise can organize these activities within a coordinated production system rather than depending entirely on unrelated external suppliers.
For a product such as the ERS-3 Series, quality-oriented manufacturing should include control of incoming materials, verification of key mechanical parts, inspection of hydraulic connection surfaces, electrical continuity checks, pressure response testing, and confirmation of product labeling. These activities help ensure that the delivered product corresponds with the selected specifications.
Pressure calibration is particularly important. The cut-in and cut-out values determine when the pump starts and stops, so inaccurate settings may affect water pressure, energy consumption, and pump cycling. Standard ranges provide a controlled basis for production, while customized settings require clear communication between the customer and the manufacturing team.
Production traceability can also support after-sales service. When product models, pressure configurations, connection types, and order information are properly recorded, a distributor or service technician can identify replacement requirements more efficiently. This is especially useful for customers managing multiple pump installations or serving a large regional market.
Because the company serves customers around the world, packaging and export coordination are also part of the manufacturing strength. Product protection during international transport, accurate documentation, order tracking, and cross-border delivery support all contribute to the customer’s total purchasing experience.
Many pump buyers prefer to reduce the number of suppliers involved in a project. Purchasing pumps, controls, accessories, and related water products from a coordinated source can simplify technical communication and order management. The manufacturer’s affiliated import and export service companies provide procurement planning, order tracking, cross-border delivery, and foreign trade support.
For distributors, one-stop procurement can make it easier to build a complete product range. A distributor may require deep well pumps for rural water supply, submersible pumps for drainage, booster pumps for buildings, circulation pumps for HVAC systems, and pressure switches for automatic control. Access to a broad portfolio can reduce purchasing complexity and support more complete customer solutions.
For original equipment manufacturers, coordinated sourcing can help match the pressure switch to a pump assembly. The customer can discuss hydraulic connections, pressure settings, voltage requirements, and packaging with a supplier familiar with pump construction. This may reduce the risk of combining incompatible components from different manufacturers.
For engineering contractors, a one-stop supplier can make quotation and delivery planning more efficient. Instead of separately managing multiple small orders, the contractor may obtain a pump package and selected accessories through a more unified purchasing process. The actual suitability of each component must still be verified by the project engineer.

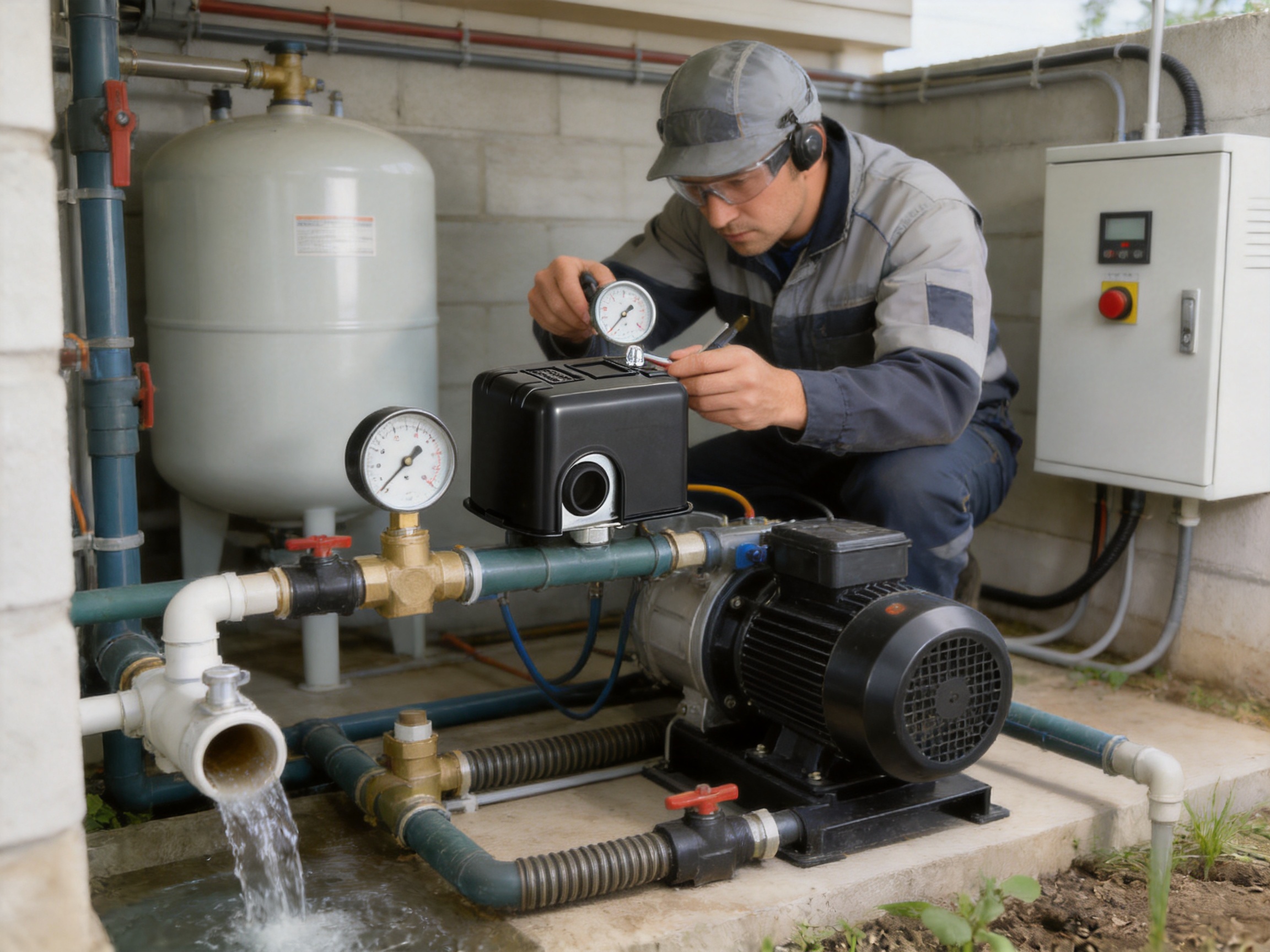

Before installation, confirm the required pressure range, pump motor rating, system voltage, frequency, hydraulic connection, working temperature, and installation environment. The pressure switch should be used only within its stated limits. The installer should also verify whether a pressure tank, check valve, contactor, overload protector, dry-run protection device, or additional control component is required.
Install the pressure switch at a location where it can sense the actual system pressure. Avoid locations with excessive vibration, flooding, direct spray, or uncontrolled heat. Because the product has an IP20 protection rating, it should be protected from water ingress and should not be treated as a waterproof outdoor control enclosure.
Ensure that the hydraulic connection is clean and free from debris. Apply a suitable thread sealant or sealing tape where appropriate, taking care not to obstruct the pressure passage. Tighten the fitting securely but do not apply excessive torque. Support adjoining pipework independently to prevent strain on the pressure switch.
Electrical installation should be performed by a qualified person. Disconnect the power supply before opening the electrical cover or handling wiring. Confirm that the supply voltage matches the product rating, connect grounding as required by local regulations, and install suitable overload and short-circuit protection. The pressure switch’s 12A rating must not be treated as a substitute for complete motor protection.
After installation, open a water outlet and observe the pressure response. Confirm that the pump starts at the intended cut-in pressure and stops at the intended cut-out pressure. Check all hydraulic joints for leakage and inspect the electrical enclosure for secure wiring. If the pump cycles too frequently, investigate pressure tank pre-charge, leakage, insufficient flow, incorrect pressure settings, or an unsuitable pump selection.
Routine maintenance begins with visual inspection. Check for water leakage, damaged wiring, loose fittings, corrosion, abnormal noise, and signs of overheating. The pressure switch should remain clean and dry. Dirt or moisture inside the electrical section can affect contact performance and create a safety hazard.
If the pump does not start, verify the power supply, circuit protection, wiring, pressure level, and pressure-switch contacts. Confirm that system pressure has actually fallen below the cut-in setting. A blocked hydraulic connection or closed valve may prevent the switch from sensing the correct pressure.
If the pump does not stop, check whether the pump can produce the selected cut-out pressure. A worn pump, blocked intake, leaking pipeline, open outlet, insufficient water supply, or pressure setting above the pump’s capability may cause continuous operation. The pressure switch should not be adjusted repeatedly without first checking the hydraulic system.
If the pump starts and stops too often, inspect the pressure tank, check valve, system leakage, and pressure differential. Rapid cycling can increase motor wear and may indicate that the pressure tank is incorrectly sized or pre-charged. The pressure switch is responsible for pressure-based switching, but frequent cycling may result from a wider system problem.
If pressure readings appear inconsistent, compare the system with a calibrated pressure gauge. A gauge provides an independent reference and can help determine whether the issue is in the switch, gauge, pump, tank, or pipeline. Adjustments and repairs should be completed by trained personnel, and the product should be replaced if mechanical or electrical damage is found.
The correct pressure range depends on the application. A low-pressure domestic system may operate effectively with a 20–40 PSI setting. A larger home, irrigation line, or application requiring stronger service pressure may use 30–50 PSI or 40–60 PSI. A 50–70 PSI configuration may be considered where the pump, piping, tank, and end-use equipment are designed for the higher pressure.
System elevation must be considered. Water pressure decreases as water rises through a building or vertical pipeline. Pipe friction, fittings, filters, valves, and long delivery distances also consume pressure. The cut-out pressure should provide the required pressure at the point of use while remaining within the pump’s capability and the pressure rating of every connected component.
The difference between cut-in and cut-out pressure affects operating cycles. A narrow differential may provide closer pressure control but can cause more frequent starts if the system has limited storage. A wider differential can reduce cycling but may produce a more noticeable pressure variation. The best setting is determined by the system design rather than by selecting the highest available value.
Customized pressure settings can be discussed for applications that do not match the standard ranges. Customers should provide accurate information about pump performance, desired pressure, electrical conditions, connection requirements, and operating temperature. Clear technical communication at the quotation stage helps prevent incorrect configuration and unnecessary replacement after delivery.
Electronic controllers can provide digital displays, sensor feedback, fault codes, communication functions, and advanced programming. These features are useful in systems requiring data collection, remote monitoring, variable-speed operation, or detailed protection logic. However, not every water system needs this level of control.
A mechanical pressure switch can be a more direct solution when the main requirement is automatic start and stop according to water pressure. Its operating principle is familiar to pump technicians, and basic testing can often be performed with a pressure gauge and electrical meter. This simplicity can be valuable where maintenance resources are limited or where the project prioritizes cost control and serviceability.
The ERS-3 Series occupies this practical position. It offers more flexibility than a highly limited switch through its voltage range, frequency compatibility, pressure options, temperature rating, and connection choices, while retaining the straightforward functionality expected from a mechanical pressure controller.
The choice between mechanical and electronic control should be based on application needs. A mechanical switch may be appropriate for a simple booster pump, domestic water system, or small irrigation installation. An electronic controller may be preferable for a complex multi-pump system, variable-frequency drive, remote monitoring network, or installation requiring integrated dry-run and overload algorithms.
Distributors need products that are understandable, adaptable, and suitable for more than one customer segment. The ERS-3 Series can support a range of applications because it includes multiple standard pressure settings and electrical compatibility for 110V–240V, 50/60Hz systems. This can make inventory planning more efficient than stocking several unrelated pressure switch families.
OEM customers may benefit from customized hydraulic connections and pressure settings. A pump assembler can specify a configuration that fits the company’s standard manifold or product housing. This can improve assembly efficiency and create a more consistent finished product. Customized requirements should be confirmed in writing, including technical drawings, approved samples, pressure calibration, materials, packaging, and inspection criteria.
Project buyers may also value the manufacturer’s broader pump portfolio. A pressure switch is often purchased as part of a larger equipment package. Access to submersible pumps, deep well pumps, booster pumps, circulation pumps, solar water pumps, and pump accessories can help customers build a coordinated supply chain.
International customers can benefit from the company’s experience in export coordination and cross-border delivery. Procurement planning, order tracking, and foreign trade support reduce administrative effort and help customers manage delivery schedules. These service capabilities are particularly important when products are being shipped as part of a larger project with fixed installation dates.
Product selection should always begin with the actual operating conditions. Buyers should identify the water source, pump type, motor rating, required flow, pressure range, power supply, ambient temperature, water temperature, installation location, and expected duty cycle. A pressure switch cannot compensate for an incorrectly sized pump or an unsuitable pipeline.
Customers should also consider the consequences of failure. Critical water systems may require redundant controls, alarms, standby pumps, or independent pressure protection. The ERS-3 Series can be integrated into an engineered system, but the final design responsibility remains with the system designer and installer.
Environmental exposure should be evaluated carefully. The IP20 rating indicates that the controller requires protection from water and solid-object hazards beyond its specified protection level. Outdoor or damp installations should use an appropriate enclosure and wiring arrangement. The maximum working temperature of 55°C should not be exceeded.
Correct documentation is equally important. The order should identify the pressure range, connection type, material requirements, voltage, frequency, quantity, packaging, and any customized specifications. Clear documentation helps the manufacturer produce the correct configuration and helps the installer identify the correct product when it reaches the job site.
The ERS-3 Series is a mechanical pressure switch used to start and stop a water pump automatically according to system pressure. It is suitable for selected domestic, irrigation, booster, commercial, and other water system applications.
It is rated for 110V–240V and supports both 50Hz and 60Hz power frequencies. The connected pump and electrical circuit must still be checked to ensure that the complete system is correctly rated.
The rated current is 12A. Motor starting current, overload protection, contactor requirements, and local electrical regulations must be considered before connecting a pump directly through the pressure switch.
Standard pressure ranges include 20–40 PSI, 30–50 PSI, 40–60 PSI, and 50–70 PSI. The minimum cut-in pressure is 20 PSI, and the maximum cut-out pressure is 100 PSI. Customized settings may be available according to customer requirements.
Yes. Available configurations include 1/4-inch male and 3/8-inch female connections, and hydraulic connection requirements can be discussed for customized applications.
The stated maximum working temperature is 55°C. The controller should be installed away from uncontrolled heat sources and should not be used beyond its specified temperature conditions without technical confirmation.
No. The product has an IP20 protection rating and must be protected from direct water exposure, flooding, and unsuitable outdoor conditions. An appropriate enclosure may be required for damp or exposed installations.
Yes. A pressure switch is commonly used with a pressure tank to control pump cycling. The tank size, pre-charge pressure, pump capacity, and selected cut-in and cut-out settings should be properly matched.
The product is described as a pressure-based automatic pump switch. Dry-run protection should not be assumed unless it is specifically included in the confirmed product configuration. A separate dry-run protector or additional control system may be required.
The stated warranty period is one year. Customers should review the applicable warranty terms, installation requirements, operating limits, and service procedures before use.
Its 110V–240V voltage rating, 50/60Hz frequency support, configurable pressure ranges, and hydraulic connection options make it adaptable to many international water system requirements. The manufacturer also has experience in mass production, export, procurement planning, and cross-border delivery.
It may be used in a suitable auxiliary or small pump application, but large industrial pumping stations often require engineered control panels, contactors, redundant sensors, overload protection, communication systems, and specialized safety functions. The complete application should be reviewed by a qualified engineer.
Buying a pressure switch from a company that also develops and manufactures pumps can provide practical advantages. Pump performance and pressure control are closely connected, so experience with both product categories can improve technical communication. The supplier can better understand how pressure settings, motor ratings, hydraulic connections, and system applications interact.
An integrated manufacturer can also coordinate product development, production, inspection, packaging, and export services. This is valuable for customers that require stable supply rather than a one-time purchase. Long-term cooperation may include standard product procurement, customized configurations, replacement parts, technical confirmation, and complete pump packages.
The company’s history of developing pump products, expanding into solar water pumps and intelligent booster pumps, and serving global markets demonstrates a commitment to broad water technology capabilities. Its product portfolio covers household, agricultural, commercial, municipal, construction, mining, HVAC, and new-energy applications.
For customers, the central value is not simply access to one pressure switch. It is access to a coordinated manufacturing and supply platform capable of supporting different pumping requirements. The ERS-3 Series fits into that platform as a practical mechanical controller for systems where reliable pressure-based automation is required.
The ERS-3 Series Voltage Stabilization Mechanical Temperature-resistant Pressure Switch provides a practical method for automatic water pump control. Its core function is straightforward: start the pump when pressure falls to the selected cut-in value and stop it when pressure reaches the selected cut-out value. Around this basic function, the product offers broad voltage compatibility, 50/60Hz frequency support, a 12A rated current, multiple pressure ranges, temperature resistance up to 55°C, and configurable hydraulic connections.
Its main advantages over less adaptable alternatives include international electrical compatibility, flexible pressure selection, customization potential, simple mechanical operation, compact construction, and straightforward servicing. These characteristics make it suitable for domestic water supply, booster systems, garden irrigation, agricultural installations, selected commercial applications, and other appropriately engineered water systems.
The manufacturer’s strengths in independent research and development, mass production, global export, pump manufacturing, procurement coordination, and after-sales support add value for distributors, OEM customers, contractors, and project buyers. Customers can obtain a pressure controller while also accessing a broader product portfolio that includes deep well pumps, submersible pumps, booster pumps, circulation pumps, solar water pumps, intelligent booster pumps, and pump accessories.
Proper selection and installation remain essential. The pressure range, pump capacity, electrical rating, temperature, environmental protection, pipework, and safety devices must all be reviewed as part of the complete system. When these factors are correctly matched, the ERS-3 Series can provide dependable automatic pressure control and support a stable, efficient, and serviceable water pumping installation.
1. Product technical information for the ERS-3 Series Voltage Stabilization Mechanical Temperature-resistant Pressure Switch.
2. Manufacturer-provided specifications for rated voltage, frequency, current, pressure ranges, temperature rating, protection rating, and connection options.
3. General principles of automatic pressure control in domestic, agricultural, commercial, and booster water pumping systems.
4. General electrical safety practices for single-phase motor circuits and pump control installations.
5. General plumbing and hydraulic installation practices for threaded pressure-control components.
6. Manufacturer information concerning pump research and development, mass production, export services, and product portfolio capabilities.
7. General engineering guidance concerning pressure tanks, pump cycling, cut-in pressure, and cut-out pressure selection.
