– Variable speed motor
– Integrated frequency converter
– High efficiency permanent magnet driven motor
– Built-in pressure vessel
– Motor power / voltage control
– Programmable menu
– Monitoring pressure and current
This model can be used for all kinds of water using of household, water circulation, tap water pressurization, garden irrigation, vegetable greenhouse water supply, etc.
Energy efficiency: Reduced energy consumption due to the use of frequency conversion and permanent magnet motor technology.
Quiet operation: Only 20-30dB.Smooth and quiet performance, suitable for residential environments.
Easy installation and maintenance: User-friendly design for straightforward installation and minimal maintenance requirements.
Pressure and flow monitoring: Built-in sensors or controls for monitoring and adjusting pressure and flow parameters.
Protection mechanisms: Overload protection, dry-run protection, and other safety features to safeguard the pump and plumbing system.
- Liquid temperature: 75°C
- Ambient temperature: 50°C
- Insulation: Class F
- Protection: IPX5
- Max. speed: 5200 rpm

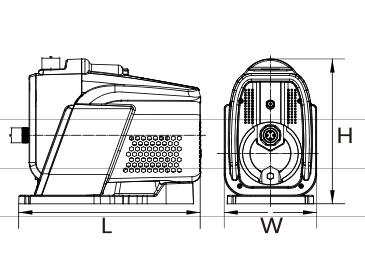

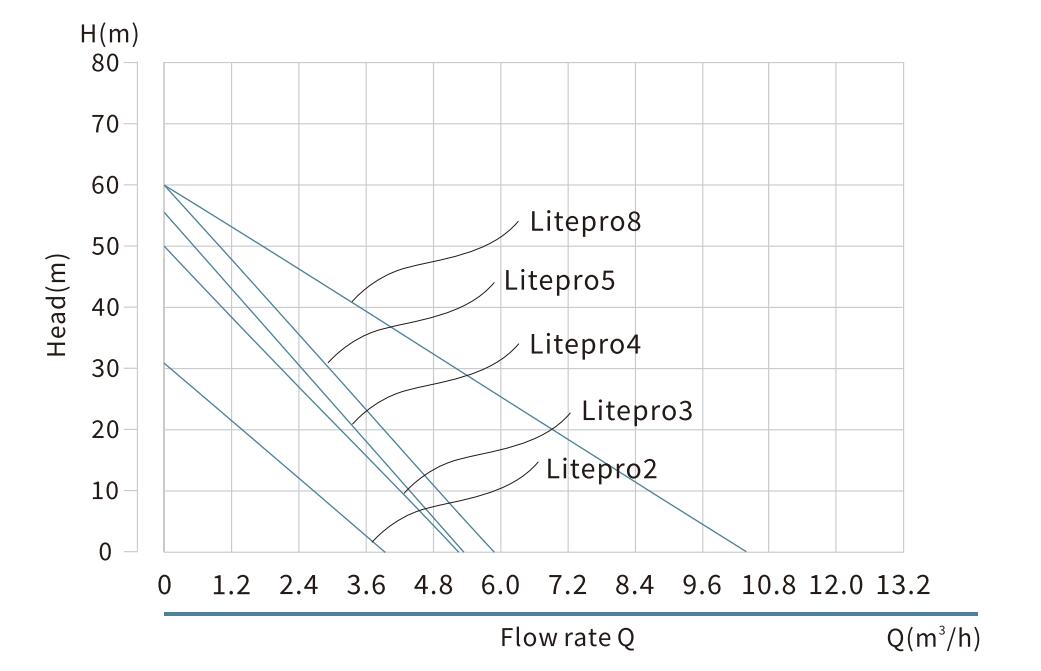

| Model | Voltage | Power | Max. flow | Max. head | Rated flow | Rated head | Max. suction | Size (L×W×H) |  |
| (V) | (W) | (m3/h) | (m) | (m3/h) | (m) | (m) | (mm) | ||
| Litepro2 | 165-260 | 370 | 4.0 | 36 | 1.5 | 20 | 8 | 360*184*290 | |
| Litepro3 | 165-260 | 550 | 5.2 | 48 | 3 | 24 | 8 | 360*184*290 | |
| Litepro4 | 165-260 | 750 | 5.6 | 55 | 3 | 28 | 8 | 400*204*320 | |
| Litepro5 | 165-260 | 900 | 6.0 | 60 | 3 | 38 | 8 | 400*204*320 | |
| Litepro8 | 165-260 | 1100 | 12 | 60 | 6 | 28 | 8 | 436*204*320 |
