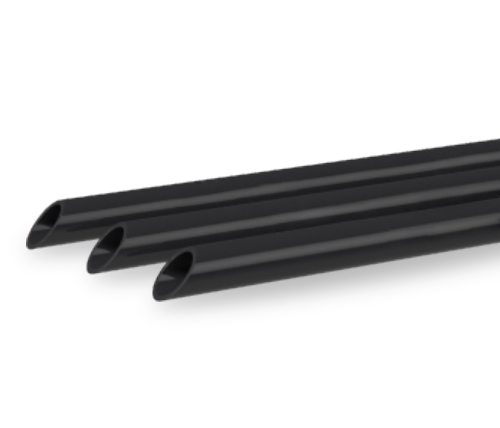

1/2 to 8 Inch UPVC SCH80 Thermoplastic High Flow Pressure Pipes for Water Plant
View All Products
en
Size (inch) : 1/2 to 8 Inch
UPVC SCH80 Thermoplastic
High Flow Pressure Pipes
Pipes for Water Plant
Our 1/2 to 8 inch UPVC SCH80 Thermoplastic High Fidelity Pressure Conduit is designed specifically for water treatment facilities. Made from premium quality UPVC material, known for its rugged durability and corrosion resistance, these pipes exhibit superior performance under high pressure conditions, making them the best choice for water treatment plants that require large flow rates.
Available in diameters ranging from 1/2 to 8 inches, these pipes are compatible with a wide range of operations within a water treatment plant. The seamless interior of these pipes ensures negligible friction losses, facilitating streamlined water transportation throughout the network. Moreover, the UPVC matrix used in these pipes is lightweight and simple to install, offering a cost-effective alternative for water treatment plant businesses.
In conclusion, our 1/2 to 8 inch UPVC SCH80 Thermoplastic High Fidelity Pressure Conduit is a reliable and long-lasting solution for water treatment plant installations. Contact us today to learn more about our high-quality pipes and their potential contribution to your water treatment plant venture.
|
Type: |
UPVC SCH80 Thermoplastic PIPE( S00 ) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
Hot and cold water,pure water |
|
Body material: |
CPVC |
|
Color: |
Grey |
|
Function: |
Transport Water |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,water treatment plant,water farming,irrigation,industry |
|
Power: |
Manual |
|
Port Size: |
1/2” to 8” |
|
Packing: |
Carton box or as per customer's request |
|
Matching criteria |
ASTM D1785 |
|
Long service life |
More than 50 years |

|

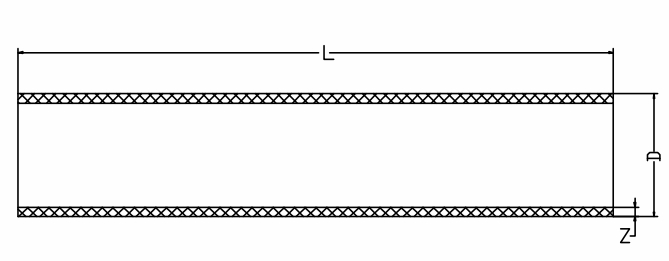

Size (inch) |
D(mm) |
Z(mm) |
L(m) |
|
1/2” |
21.3 |
3.7 |
4 |
|
3/4” |
26.6 |
3.9 |
4 |
|
1” |
33.4 |
4.6 |
4 |
|
1-1/4” |
42.2 |
4.9 |
4 |
|
1-1/2” |
48.3 |
5.1 |
4 |
|
2” |
60.3 |
5.5 |
4 |
|
2-1/2” |
73.0 |
7.1 |
4 |
|
3” |
88.9 |
7.6 |
4 |
|
4” |
114.3 |
8.6 |
4 |
|
5” |
141.3 |
9.52 |
4 |
|
6” |
168.28 |
10.97 |
4 |
|
8” |
219.08 |
12.70 |
4 |
