4ADPC 4" Brushless Water Filled Solar Pump With Plastic Impeller
View All Products
en
1、 Water-cooling AC/DC motor:
2、
3、 Japanese NSK bearing: The use of these bearings enhances the overall quality and lifespan of the pump, making it a reliable choice for various applications.
4、
5、 It
6、
7、It
Applications :
Rural drinking water supply and household water systems
Small- to medium-scale agricultural irrigation
Solar-powered off-grid water supply projects
Water transfer and storage for remote or challenging locations
Energy-saving deep well pumping in residential or farming applications

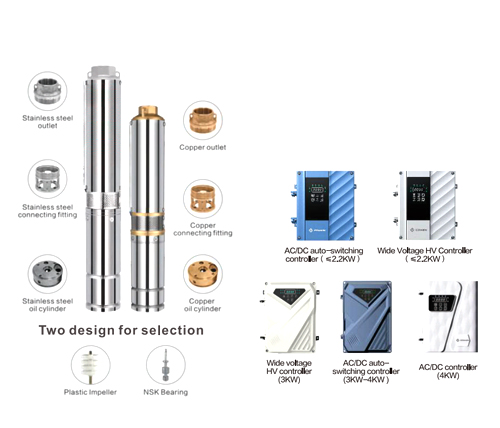

Spare parts:

Components & Materials:
| Components | Materials |
| Outlet | Copper / Stainless Steel |
| Connection | Copper / Stainless Steel |
| Oil cylinder | Copper / Stainless Steel |
| Impeller | Plastic |
| Bearing | NSK |
| Shaft | Complete SS304 |

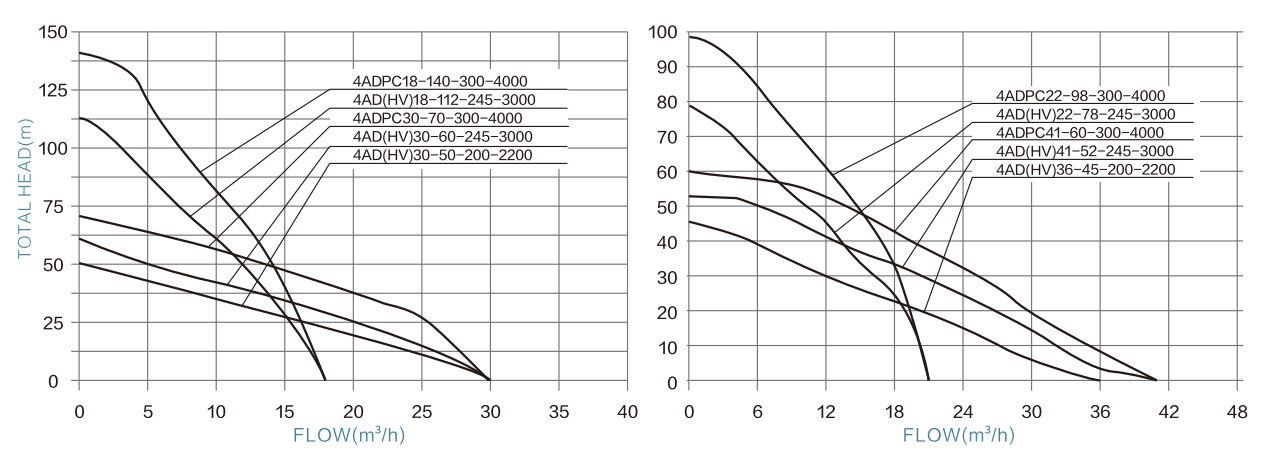

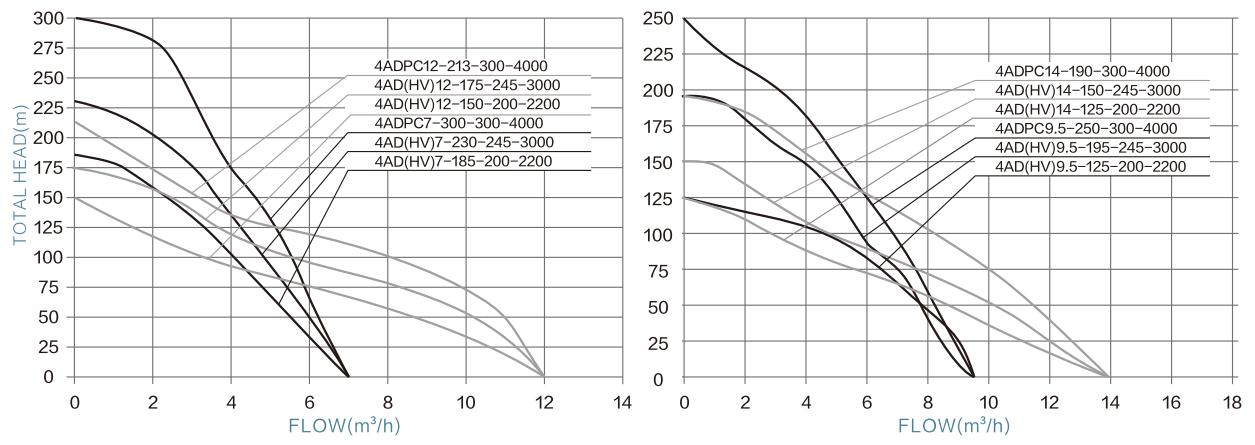

Hydraulic Performance Curves:


Technical Data:
| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel -Open circuit voltage (VOC) | Solar panel - Power |
| 4ADPC7-150-200-2200 | 85V-280V | 200V-350V | 2200W | 7m³/h | 185m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC7-175-245-3000 | 85V-280V | 245V-350V | 3000W | 7m³/h | 230m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC7-300-300-4000 | 120V-280V | 300V-350V | 4000W | 7m³/h | 300m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC9.5-125-200-2200 | 85V-280V | 200V-350V | 2200W | 9.5m³/h | 125m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC9.5-150-245-3000 | 85V-280V | 245V-350V | 3000W | 9.5m³/h | 195m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC9.5-250-300-4000 | 120V-280V | 300V-350V | 4000W | 9.5m³/h | 250m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC12-150-200-2200 | 85V-280V | 200V-350V | 2200W | 12m³/h | 150m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADPC12-175-245-3000 | 85V-280V | 245V-350V | 3000W | 12m³/h | 175m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC12-213-300-4000 | 120V-280V | 300V-350V | 4000W | 12m³/h | 213m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC14-125-200-2200 | 85V-280V | 200V-350V | 2200W | 14m³/h | 125m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC14-150-245-3000 | 85V-280V | 245V-350V | 3000W | 14m³/h | 150m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC14-190-300-4000 | 120V-280V | 300V-350V | 4000W | 14m³/h | 190m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel -Open circuit voltage (VOC) | Solar panel - Power |
| 4ADPC18-112-345-3000 | 85V-280V | 240V-350V | 3000W | 18m³/h | 112m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC18-140-300-4000 | 120-280V | 300V-350V | 4000W | 18m³/h | 140m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC22-78-245-3000 | 85V-280V | 240V-350V | 3000W | 22m³/h | 78m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC22-98-300-4000 | 120-280V | 300V-350V | 4000W | 22m³/h | 98m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC30-50-200-2200 | 85V-280V | 200V-350V | 2200W | 30m³/h | 50m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC30-60-245-3000 | 85V-280V | 245V-350V | 3000W | 30m³/h | 60m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC30-70-300-4000 | 120-280V | 300V-350V | 4000W | 30m³/h | 70m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC36-45-200-2200 | 85V-280V | 200V-350V | 2200W | 36m³/h | 45m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC41-52-245-3000 | 85V-280V | 245V-350V | 3000W | 41m³/h | 52m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4ADPC41-60-300-4000 | 120-280V | 300V-350V | 4000W | 41m³/h | 60m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
