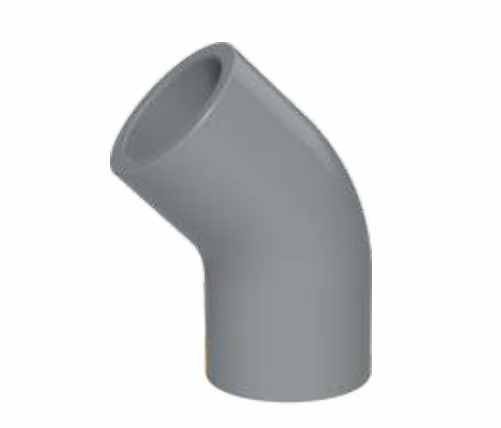

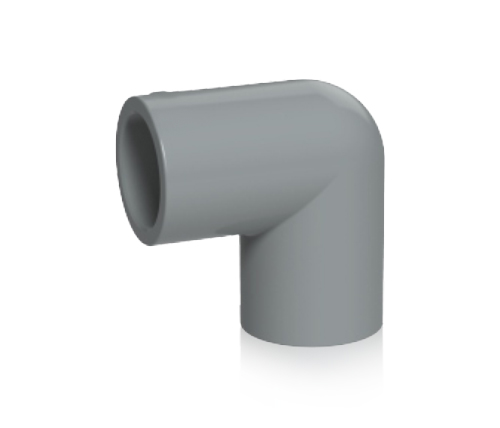

1/2" to 6" SCH80 CPVC 45 or 90 Degree Safety Socket Elbow
View All Products
en
Size (inch) : 1/2" to 6"
Working Pressure : 18MPa
CPVC SCH80 Elbow
45 or 90 Degree
SCH80 45 or 90 degree CPVC safety sockets, available in sizes from 1/2" to 6", are a type of CPVC connection commonly used in plumbing and water distribution systems. These connections are designed to smoothly change the direction of water flow within a system. Available in 45 and 90 degree angles.
CPVC material is known for its health, safety, and corrosion resistance. This makes it popular in drinking water systems. CPVC can withstand a wide range of chemicals. And it will not corrode or erode. Your joints will last longer.
The SCH80 designation indicates that these fittings meet specific wall thickness and pressure rating standards. Suitable for high pressure applications. This allows the gasket to withstand the pressure requirements of the system without the risk of damage.
Overall, 1/2" to 6" SCH80 45 or 90 degree CPVC safety sockets are a reliable and durable choice for piping systems that require smooth transitions. Healthy, safe and corrosion resistant
|
Type: |
CPVC SCH80 Elbow (S51,S52) |
|
Place of Origin: |
Zhejiang, China |
|
Temperature of Media: |
Medium Temperature, Normal Temperature |
|
Media: |
Hot and cold water,pure water,drinking water,waster water,ect |
|
Body material: |
CPVC |
|
Color: |
Grey |
|
Function: |
Transport Liquid |
|
Customized support: |
OEM, ODM |
|
Brand Name: |
EDWIN or Customize |
|
Application: |
Buildings,homes,hospitals,hotels,food plant,ect |
|
Power: |
Manual |
|
Port Size: |
1/2” to 6” |
|
Standard: |
ASTM D1784 |
|
Packing: |
Carton box or as per customer's request |
|
Matching criteria |
ASTM F439 |

|

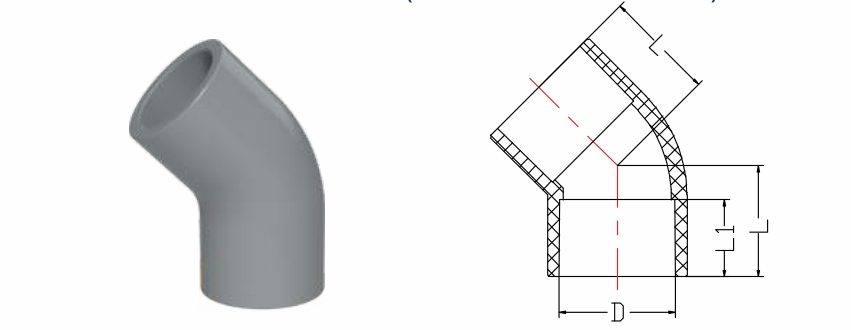

Size (inch) |
D(mm) |
L(mm) |
L1(mm) |
|
1/2” |
21.34 |
50.2 |
24 |
|
3/4” |
26.67 |
56.5 |
27 |
|
1” |
33.4 |
62.5 |
30 |
|
1-1/4” |
42.16 |
68.5 |
33 |
|
1-1/2” |
48.26 |
74.5 |
36 |
|
2” |
60.32 |
80.5 |
39 |
|
2-1/2” |
73.02 |
97.0 |
46 |
|
3” |
88.9 |
103.0 |
49 |
|
4” |
114.3 |
123.0 |
59 |
|
5” |
141.0 |
143.5 |
67 |
|
6” |
168.0 |
163.6 |
76.8 |

|

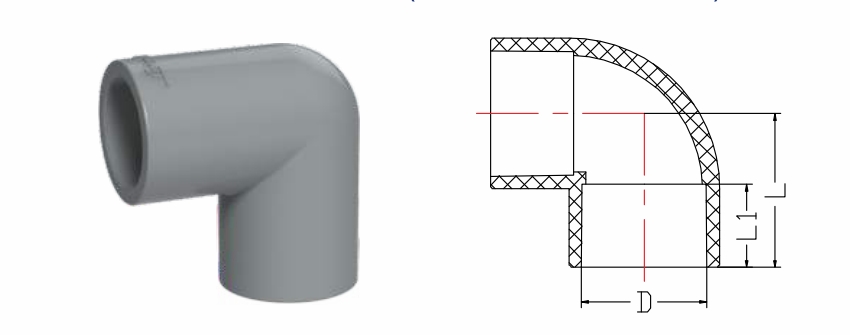

Size (inch) |
D(mm) |
L(mm) |
L1(mm) |
|
1/2” |
21.34 |
50.2 |
24 |
|
3/4” |
26.67 |
56.5 |
27 |
|
1” |
33.4 |
62.5 |
30 |
|
1-1/4” |
42.16 |
68.5 |
33 |
|
1-1/2” |
48.26 |
74.5 |
36 |
|
2” |
60.32 |
80.5 |
39 |
|
2-1/2” |
73.02 |
97.0 |
46 |
|
3” |
88.9 |
103.0 |
49 |
|
4” |
114.3 |
123.0 |
59 |
|
5” |
141.0 |
143.5 |
67 |
|
6” |
168.0 |
163.6 |
76.8 |
