Powful Advanced pump
Easy Installation
Centrifugal Monoblock Pump
1、It designs to apply for circulation and transfer of clean, chemically non-aggressive water and other liquids ;
Water supply and irrigation ; Water circulation in air conditioning systems as well as fire fighting system .

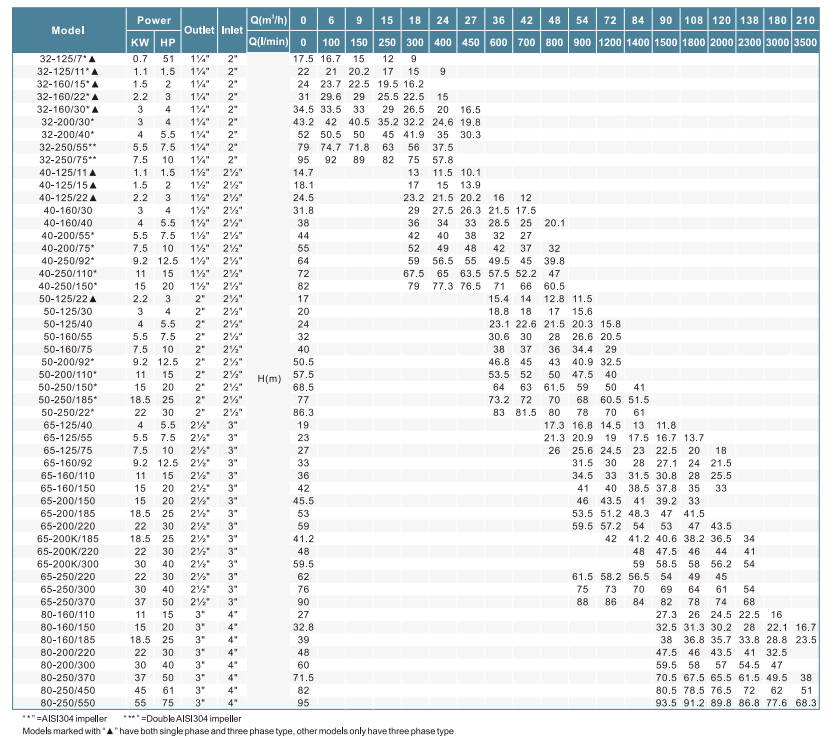

2、Feature in maximun flow that it is able delivery up to 1300l/min , and this pump's head reach up to 95m.
3、Easy Installation
4、Maximum operating pressure: 12 bar (PN12). Anti-clockwise rotation when facing pump's suction port
5、Mechanical seal in compliance with DIN 24960
6、Counter flange available on request
7、Lubricated by internal recirculating pumped liquid
8、Anti-clockwise rotation when facing pump's suction port
9、Closed construction, external ventilation
10、Overload protection
11、Single-impeller centrifugal pump featuring axial intake and radial discharge
12、Performance in compliance with CEl 2~3 (lEC34.1)
13、Insulation class: F
14、Protection class: lP54
15、Max.ambienttemperature: +40°C
|
Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump Body |
HT200 |
|
2 |
Impeller |
HT200/06Cr19Ni10 |
|
3 |
Mechanical Seal |
|
|
4 |
“O”-ring |
NBR |
|
5 |
Connection body |
HT200 |
|
6 |
Skeleton seal |
|
|
7 |
Bearing |
|
|
8 |
Rotor |
|
|
9 |
Stator |
|
|
10 |
Brace |
|
|
11 |
Motor Cover |
ZL102 |
|
12 |
Fan |
PP |
|
13 |
Fan Cover |
08F |
|
14 |
Guard plate |
06Cr19Ni10 |
|
15 |
Pump shaft |
45/06Cr19Ni10 |
|
16 |
Capacitor Holding Box |
|
