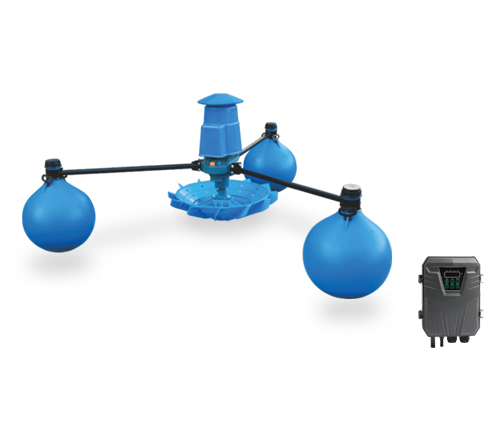

ESIA Series Brushless DC Motor Solar Impeller Aerator

Name: ESIA Series Brushless DC Motor Solar Impeller Aerator
Brand: Taizhou Edwin Electric Co., Ltd.

The ESIA series impeller-type solar aerator uses a brushless DC motor to drive the impeller at high speed, pushing the water upward and creating bubbles, thereby increasing the dissolved oxygen concentration.

Compared to paddle-wheel aerators, impeller-type aerators are suitable for use in deep waters, effectively promoting circulation between upper and lower water layers and improving overall water quality.

The brushless motor design reduces energy consumption and extends service life. Combined with a solar power supply system, it ensures long-term stable operation.

It is suitable for aeration applications in fish ponds, shrimp ponds, and ecological aquaculture farms. A three-year warranty provides reliable user protection.

PREV：ESWA Series Brushless DC Motor Solar Paddle Wheel Aerator
NEXT：No next product

Description
Components
Curves
Performance Data
Contact Us

Performance Data :

ITEM	Voltage	Best input voltage (DC)	Power	Oxygenation rate(kg/h)	Covering Area(㎡)	Solar panel - Open circuit voltage(VOC)	Solar panel - Power
ESIA-48-750	48V	60V-90V	750W	≥1.1	666-2000	<120V	≥1.3*PUMP POWER
ESIA-72-1100	72V	90V-120V	1100W	≥1.6	2000-2665	<170V	≥1.3*PUMP POWER
ESIA-110-1500	110V	110V-150V	1500W	≥2.3	2000-4000	<220V	≥1.3*PUMP POWER
