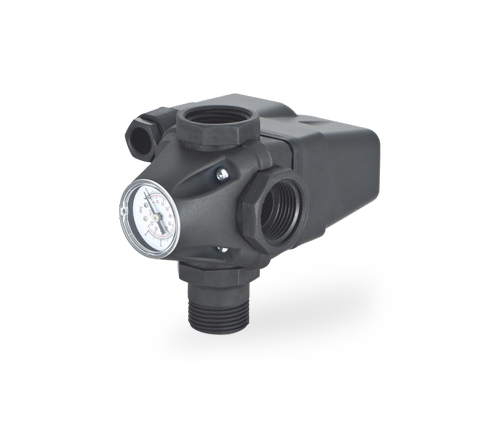

ERS-7 Series 110 to 240V Customized Setting High Strength Spring Pressure Switch for Water Systems

Name: ERS-7 Series 110 to 240V Customized Setting High Strength Spring Pressure Switch for Water Systems
Rating: 5 (99 reviews)

Customized Setting
High Strength Spring
Pressure Switch for Water Systems

Pressure range : 15-100 PSI

Rated Voltage : 110V-240V/400V

Rated Current : 16 (8) A

PREV：ERQ-1 Series Air-relief Customized Setting Pressure Switch for Air Compressors
NEXT：ERS-2.5 Series Silver Plated Contact Sealed Case Pressure Switch for Water Systems

Description
Components
Curves
Performance Data
Contact Us

Description :

The ERS-7 Series 110-240V Customized Setting High Strength Spring Pressure Switch is designed specifically for water systems. It is equipped with a high-strength spring and a pressure switch that allows you to customize the settings according to your specific requirements. This pressure switch is compatible with power supplies ranging from 110V to 240V, providing flexibility in installation. It is a reliable and durable solution for controlling water pressure in various applications.

Key Features :

1、The ERS-7 Series pressure switch is designed to operate with a voltage range of 110-240V, making it compatible with a wide range of electrical systems commonly used in residential, commercial, and industrial applications.
2、The customizable setting of the pressure switch allows users to adjust the pressure threshold at which the switch activates or deactivates the water system. This feature provides flexibility and allows for fine-tuning of the pressure control to suit specific requirements.
3、The high-strength spring in the pressure switch ensures accurate and reliable pressure control. It is designed to withstand high pressures without deformation or loss of performance, ensuring consistent operation of the water system.
4、The pressure switch is responsible for monitoring the pressure in the water system. When the pressure drops below the set threshold, the switch will activate the system to maintain or restore the desired pressure. Once the pressure reaches the desired level, the switch will deactivate the system, preventing over-pressurization and potential damage.
5、The ERS-7 Series pressure switch is commonly used in water systems, including water pumps, water heaters, and other applications where precise pressure control is required.
6、1 year warranty

Options :

-Starting perssure is adjustable during installation , adjustment range : 1.2bar-3.0bar.

-Color : as customer require.

-G1" plastic pipe joint for a quick connection to water pump.

-Power cable length can choose according to customers' needs.

Technical Data :

Rated Voltage	110-240V/400V
Rated Current	16(8)A
Min.cut-in	15PSI
Max.cut-out	100PSI
Pressure Range	20-40psi ; 30-50psi ; 40-60psi (According To Requirements Of Customers )
Cover Color	Black
Screw Size	G1”
Protection Class	IP44
Max. Working Temperature	55℃
