Description

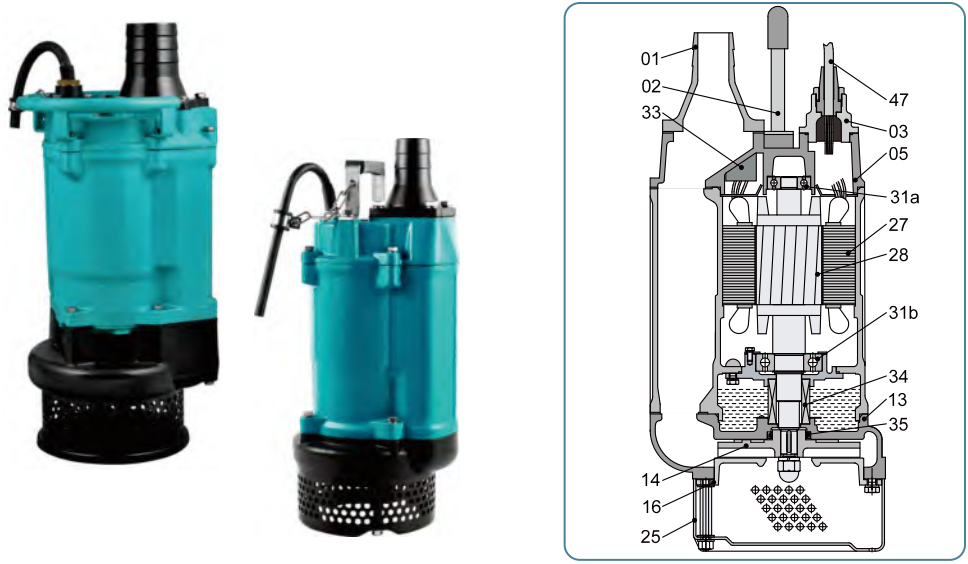

The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to mechanical seal resistant to high preasure.
Semi-open impller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing.
Space economically by a top outlet.
Discharge 50mm(2") to 150mm(6"),motor 1.5kW (2HP) to 15 kW (20HP).
Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.
Specification
Capacity:up to 160m3/h
Head:up to 57 meters
Power: 1.5kW (2HP) to 15 kW (20HP)
Power supply:three phase 400V ±10%t50Hz; 380V±10%,60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature:up to 40 degree
water depth: 25m
Application
Civil engineering
Mines,quarries,coal ore & slurries
Sewage treatment plants
General pumping purposes
Special features on request
Other voltages
The length of cable is optional
Performance Curves
Technical Data :
|
Model (50Hz) |
Outlet |
Motor Power |
Rated Current (400V) |
Rated Capacity |
Rated Head |
Max. Capacity |
Max. Head |
Impeller Passage |
|
|
mm |
KW |
HP |
A |
m3/h |
m |
m3/h |
m |
mm |
|
|
KBZ21.5 |
50 |
1.5 |
2 |
3.5 |
15 |
15 |
27 |
22 |
8.5 |
|
KBZ31.5 |
80 |
1.5 |
2 |
3.5 |
30 |
8 |
40 |
14.5 |
8.5 |
|
KBZ22.2 |
50 |
2.2 |
3 |
5 |
18 |
20 |
33 |
26 |
8.5 |
|
KBZ32.2 |
80 |
2.2 |
3 |
5 |
36 |
11 |
55 |
19 |
8.5 |
|
KBZ23.7 |
50 |
3.7 |
5 |
7.7 |
12 |
30 |
33 |
34 |
8.5 |
|
KBZ33.7 |
80 |
3.7 |
5 |
7.7 |
30 |
20 |
55 |
29 |
8.5 |
|
KBZ43.7 |
100 |
3.7 |
5 |
7.7 |
60 |
11.5 |
90 |
18.5 |
8.5 |
|
KBZ35.5 |
80 |
5.5 |
7.5 |
11.4 |
36 |
25 |
75 |
34 |
8.5 |
|
KBZ45.5 |
100 |
5.5 |
7.5 |
11.4 |
60 |
16 |
105 |
23 |
8.5 |
|
KBZ47.5 |
100 |
7.5 |
10 |
15 |
48 |
30 |
84 |
40 |
11.5 |
|
KBZ67.5 |
150 |
7.5 |
10 |
15 |
90 |
15 |
124.8 |
31 |
19.5 |
|
KBZ411 |
100 |
11 |
15 |
22 |
60 |
35 |
84 |
48.5 |
11.5 |
|
KBZ611 |
150 |
11 |
15 |
22 |
102 |
22 |
147 |
32 |
19.5 |
|
KBZ415 |
100 |
15 |
20 |
29.5 |
60 |
42 |
84 |
56 |
11.5 |
|
KBZ615 |
150 |
15 |
20 |
29.5 |
102 |
30 |
156 |
40 |
19.5 |
|
Model (60Hz) |
Outlet |
Motor Power |
Rated Current (400V) |
Rated Capacity |
Rated Head |
Max. Capacity |
Max. Head |
Impeller Passage |
|
|
mm |
KW |
HP |
A |
m3/h |
m |
m3/h |
m |
mm |
|
|
KBZ21.5 |
50 |
1.5 |
2 |
3.5 |
15 |
16.5 |
27 |
23 |
8.5 |
|
KBZ31.5 |
80 |
1.5 |
2 |
3.5 |
30 |
9 |
45 |
15 |
8.5 |
|
KBZ22.2 |
50 |
2.2 |
3 |
5.1 |
18 |
20 |
31 |
28 |
8.5 |
|
KBZ32.2 |
80 |
2.2 |
3 |
5.1 |
30 |
13 |
47 |
20.5 |
8.5 |
|
KBZ23.7 |
50 |
3.7 |
5 |
8 |
12 |
30 |
50 |
33 |
8.5 |
|
KBZ33.7 |
80 |
3.7 |
5 |
8 |
30 |
22 |
55 |
31 |
8.5 |
|
KBZ43.7 |
100 |
3.7 |
5 |
8 |
60 |
11.5 |
96 |
18.5 |
8.5 |
|
KBZ35.5 |
80 |
5.5 |
7.5 |
11.6 |
36 |
25 |
69 |
38 |
8.5 |
|
KBZ45.5 |
100 |
5.5 |
7.5 |
11.6 |
60 |
16 |
102 |
24.4 |
8.5 |
|
KBZ47.5 |
100 |
7.5 |
10 |
15.4 |
48 |
30 |
80 |
41 |
11.5 |
|
KBZ67.5 |
150 |
7.5 |
10 |
15.4 |
90 |
15 |
127 |
31 |
19.5 |
|
KBZ411 |
100 |
11 |
15 |
22.5 |
60 |
35 |
84 |
48.5 |
11.5 |
|
KBZ611 |
150 |
11 |
15 |
22.5 |
102 |
22 |
147 |
32 |
19.5 |
|
KBZ415 |
100 |
15 |
20 |
30 |
60 |
42 |
84 |
57 |
11.5 |
|
KBZ615 |
150 |
15 |
20 |
30 |
102 |
27 |
160 |
39 |
19.5 |
