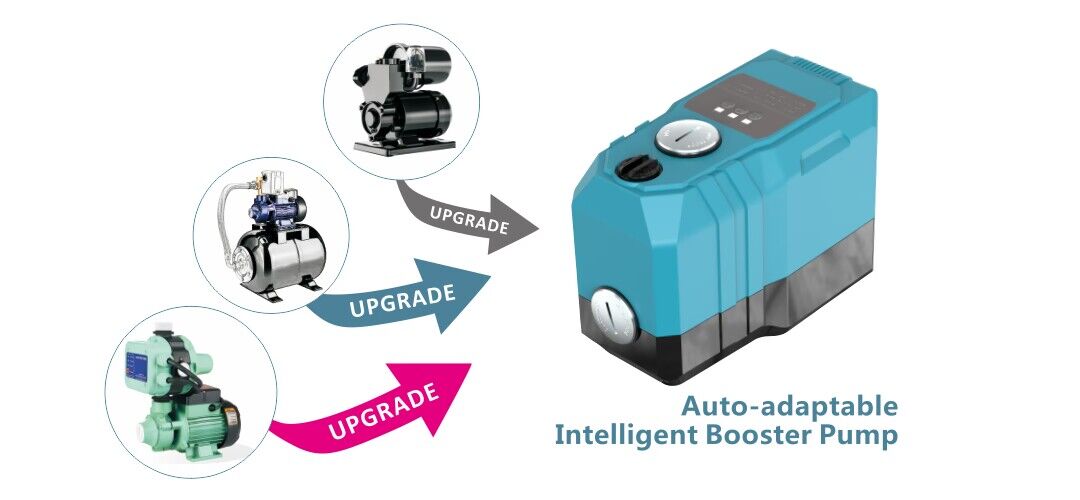

TW Series Energy Saving Smart Permanent Magnet Shield Booster Pump

Safe Voltage : DC 24-40V

Super Quiet ( 20-30dB )

Dual Control

Food Grade Materials (No Rust water)

Energy saving

30,000 hours of long life

PREV：No previous product
NEXT：SBP Series Smart Permanent Magnet Canned Booster Pump for Bathroom

Description
Components
Curves
Performance Data
Contact Us

Pump Description :

The TW series of Energy Saving Intelligent Permanent Magnet Shield Boosters are extensively utilized within residential water delivery, tap water pressurization, amalgamated water lifting equipment support (such as air energy, solar energy, water heaters, deionized water, etc.), pipeline pressurization, landscape watering, cultivation for irrigation, aquaculture, industries such as industrial and mining operations. Water supply applications for hotels, canteens, and high-rise buildings; central air conditioning and central heating circulation systems, etc.

Main Features ：

Super Silent : Shield structure and no jam-up to impeller

Safe : 36V and below permanent magnet motor

Healthy : Food grade materials--No rust water

Energy Saving : Due to adaptive function,dual control and permanent magnet motor ,etc

Suitable for the wholehouse : It can be equipped with 5-6 faucets for use throughout the house

Fuction ：

1.DC 24-40V output voltage human safe voltage,no risk of use.
2.Superlong lifespan, 30,000 hours of service life.
3.Super quiet 20-30dB adopt permanent magnet motor and water cooling structure,don't need cooling fan.
4.No rust water(food grade plastic for fluid parts).
5.Dual control system (pressure + flow switch). Support stepless pressure regulation for pump with 0-100m head.

6.The shielded water cooling structure is adopted, and there is no fan for heat dissipation to ensure low noise.

7.Timing fucntion,supply waterfor water tower (optional).

8.High pass rate of standard parts and high production efficiencyof assembly parts (one cross screw driver can complete assembly and disassembly).

Motor ：
Electric pump speed : (n=12000r.p.m)
Insulation : Class H
Protection : IP55
Continuous service : S1

Max. suction : +9m

Single-phase : 50/60Hz , 100-140V/160-240V

Operating conditions ：
The temperature of pumping liquid does not exceed 0~100°C and the ambient temperature does not exceed 4~55 °C.

Operation Interface :

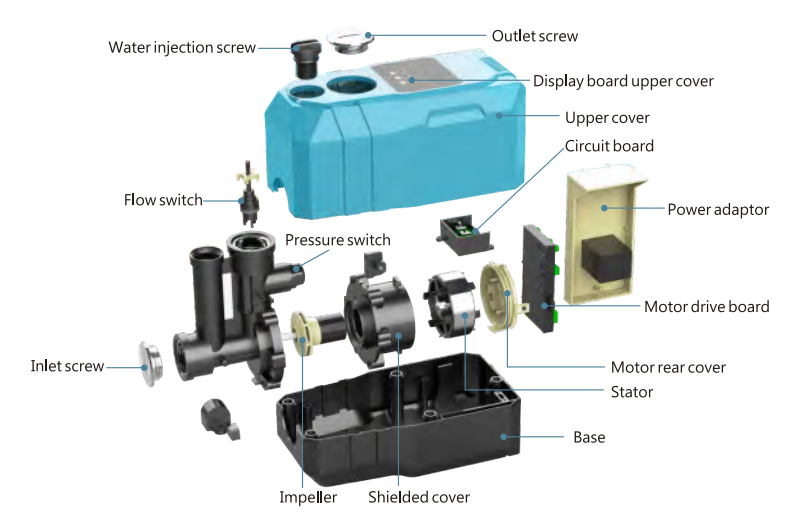

Product Explosion Chart :

Components	Construction
Pump body	Engineering plastic
Pump housing	ABS plastics
Pump support	Shielding sleeve
Impeller and rotor	PPO plastics and ferrites
Rotor shaft	99 Ceramics

Performance Chart :

Technical Data ：

Model	Voltage （V）	Power (W)	Power (HP)	Max.flow （m³/h）	Max.flow （L/min）	Max.head （m）	Max.suction （m）	Inlet & Outlet (inch)	Meas. (mm)
TW-20	DC-24	84	0.1	2.0	33	20	9	1”x 1”	255138193
TW-25	DC-30	105	0.1	2.2	37	25	9	1”x 1”	255138193
TW-30	DC-36	126	0.2	2.4	40	30	9	1”x 1”	255138193
TW-35	DC-40	160	0.2	2.5	42	35	9	1”x 1”	255138193
