Description :
With our product, you can harness the power of the sun to efficiently and sustainably water your crops, gardens, and fields. As the name suggests, our solar pump is powered by solar energy, making it an environmentally friendly choice . Crafted with a durable stainless steel casing, our pump is built to withstand the harshest conditions . With its brushless design, the pump operates silently, minimizing noise pollution. Additionally, the thermostability feature ensures that the pump can withstand high temperatures without compromising its functionality.
Key Features :
1、DC brushless design
2、Easy portable
3、Anti-corrision operation
4、MPPT controller
Free Spare Parts :

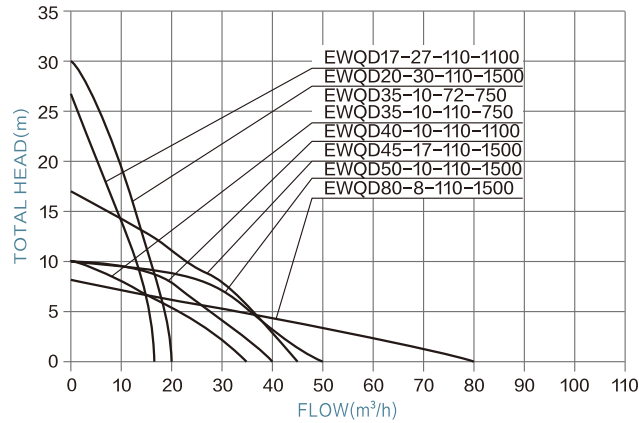

Hydraulic Performance Curves :
Technical Data：
|
ITEM |
Voltage |
Optimum input voltage(DC) |
Power |
Max. Flow |
Max.Head |
Outlet |
Cable |
Solar panel |
|
|
Open circuit voltage(VOC) |
Power |
||||||||
|
EQD5.5-14-24-300 |
24V |
30V-48V |
750W |
5.5m³/h |
14m |
1" |
5m |
＜60V |
≥1.3*PUMP POWER |
|
EQD7-18-48-550 |
48V |
60V-90V |
750W |
7m³/h |
18m |
1" |
5m |
＜120V |
≥1.3*PUMP POWER |
|
EQD7-26-72-750 |
72V |
90V-120V |
1100W |
7m³/h |
26m |
1" |
5m |
＜170V |
≥1.3*PUMP POWER |
|
EQD7-26-110-750 |
110V |
110V-150V |
1500W |
7m³/h |
26m |
1" |
5m |
＜220V |
≥1.3*PUMP POWER |
|
EQD12-30-110-1100 |
110V |
110V-150V |
750W |
12m³/h |
30m |
1.5" |
5m |
＜220V |
≥1.3*PUMP POWER |
|
EQD25-25-110-1100 |
110V |
110V-150V |
750W |
25m³/h |
25m |
2" |
5m |
＜220V |
≥1.3*PUMP POWER |
|
EQD30-28-110-1500 |
110V |
110V-150V |
1100W |
30m³/h |
28m |
2" |
5m |
＜220V |
≥1.3*PUMP POWER |
|
EQD35-20-110-1500 |
110V |
110V-150V |
1500W |
35m³/h |
20m |
2" |
5m |
＜220V |
≥1.3*PUMP POWER |
|
EQD50-10-110-1500 |
110V |
110V-150V |
1500W |
50m³/h |
10m |
3" |
5m |
＜220V |
≥1.3*PUMP POWER |
